High Input Voltage, 3A Single Cell Battery Charger with NVDC Power Path Management,Replace BQ25601D
FEATURES

? High Efficiency, 1.5MHz, Synchronous Buck Charger

  93.8% Charge Efficiency at 1.02A from 5V Input

  89.8% Charge Efficiency at 2A from 9V Input

  Optimized for 9V/12V Input

  Selectable PFM Mode for Light Load Efficiency

? USB On-The-Go (OTG) Support (Boost Mode)

  Boost Converter with up to 1.2A Output

  Boost Efficiency of 93.5% at 0.5A and 92.2% at 1A

  Accurate Hiccup Mode Over-Current Protection

  Soft-Start Capable with up to 500μF Capacitive Load

  Output Short Circuit Protection

  Selectable PFM Mode for Light Load Operations

? Single Input for USB or High Voltage Adapters

  3.9V to 13.5V Operating Input Voltage Range

  22V Absolute Maximum Input Voltage Rating

  Programmable Input Current Limit and Dynamic

  Power Management (IINDPM, 100mA to 3.2A

  with 100mA Resolution) to Support USB 2.0

  and USB 3.0 Standards and High Voltage Adaptors

  Maximum Power Tracking by Programmable

  Input Voltage Limit (VINDPM) with Selectable Offset

  VINDPM Tracking of Battery Voltage

  Auto Detect USB BC1.2, SDP, CDP, DCP and

  Non-Standard Adaptors

  High Battery Discharge Efficiency with 26mΩ Switch

? Narrow Voltage DC (NVDC) Power Path Management

  Instant-On with No or Highly Depleted Battery

  Ideal Diode Operation in Battery Supplement Mode

? Ship Mode, Wake-Up and Full System

  Reset Capability by Battery FET Control

? Flexible Autonomous and I2C Operation

  Modes for Optimal System Performance

? Fully Integrated Switches, Current Sense and Compensation

? 2.5μA Ship Mode Low Battery Leakage Current

? High Accuracy

  ±0.5% Charge Voltage Regulation (8mV/Step)

  ±5% Charge Current Regulation at 1.5A

  ±5% Charge Current Regulation at 0.4A

  ±20% Charge Current Regulation at 10mA

  ±10% Input Current Regulation at 0.9A

? SafetyBattery Temperature Sensing (Charge/Boost Modes)

  Thermal Regulation and Thermal Shutdown

  Input Under-Voltage Lockout (UVLO)

  Input Over-Voltage (ACOV) Protection

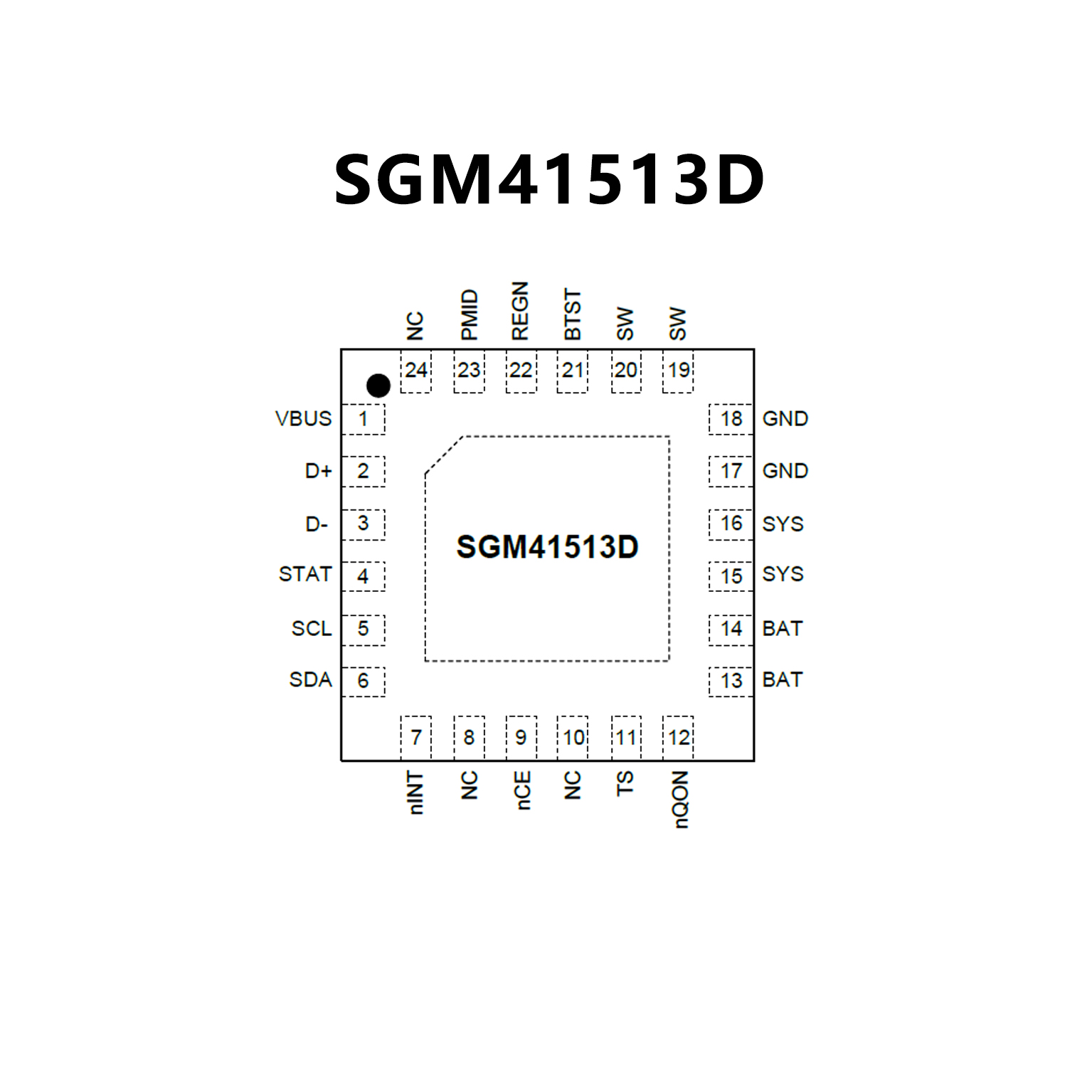

PIN CONFIGUTION
優勢替代
BQ25601D BQ25601D.pdf

No.13775

FEATURES

? High-efficiency, 1.5-MHz, synchronous

  switch-mode buck charger

  92% Charge efficiency at 2 A from 5-V input

  Optimized for USB voltage input (5 V)

  Selectable low power Pulse Frequency

  Modulation (PFM) Mode for light load operations

? Supports USB On-The-Go (OTG)

  Boost converter with up to 1.2-A output

  92% Boost efficiency at 1-A output

  Accurate Constant Current (CC) limit

  Soft-start up to 500-μF capacitive load

  Output short circuit protection

  Selectable low power PFM

  Mode for light load operations

  Single input to support USB input

  and high voltage adapters

  Support 3.9-V to 13.5-V input voltage

  range with 22-V absolute maximum input voltage rating

  Programmable input current limit (100 mA to

  3.2 a with 100-mA Resolution) to support

  USB 2.0, USB 3.0 standards and

  high voltage adaptors (IINDPM)

  Maximum power tracking by input

  voltage limit up to 5.4 V (VINDPM)

  VINDPM Threshold automatically tracks batteryvoltage

   Auto detect USB BC1.2, SDP, CDP, DCP and

  non-standard adaptors

? High battery discharge efficiency with

  19.5-mΩ battery discharge MOSFET

? Narrow VDC (NVDC) power path management

  Instant-on works with no battery or deeply discharged batter

  Ideal diode operation in Battery Supplement Mode

? BATFET Control to support ship mode,

  wake up and full system reset

? Flexible autonomous and I2C Mode

  for optimal system performance

? High integration includes all

  MOSFETs, current sensing and loop compensation

? 17-μA Low battery leakage current

? High accuracy

  ±0.5% Charge voltage regulation

  ±5% at 1.5-A Charge current regulation

  ±10% at 0.9-A Input current regulation

? Safety-Related Certifications:

  TUV IEC 62368 Certification

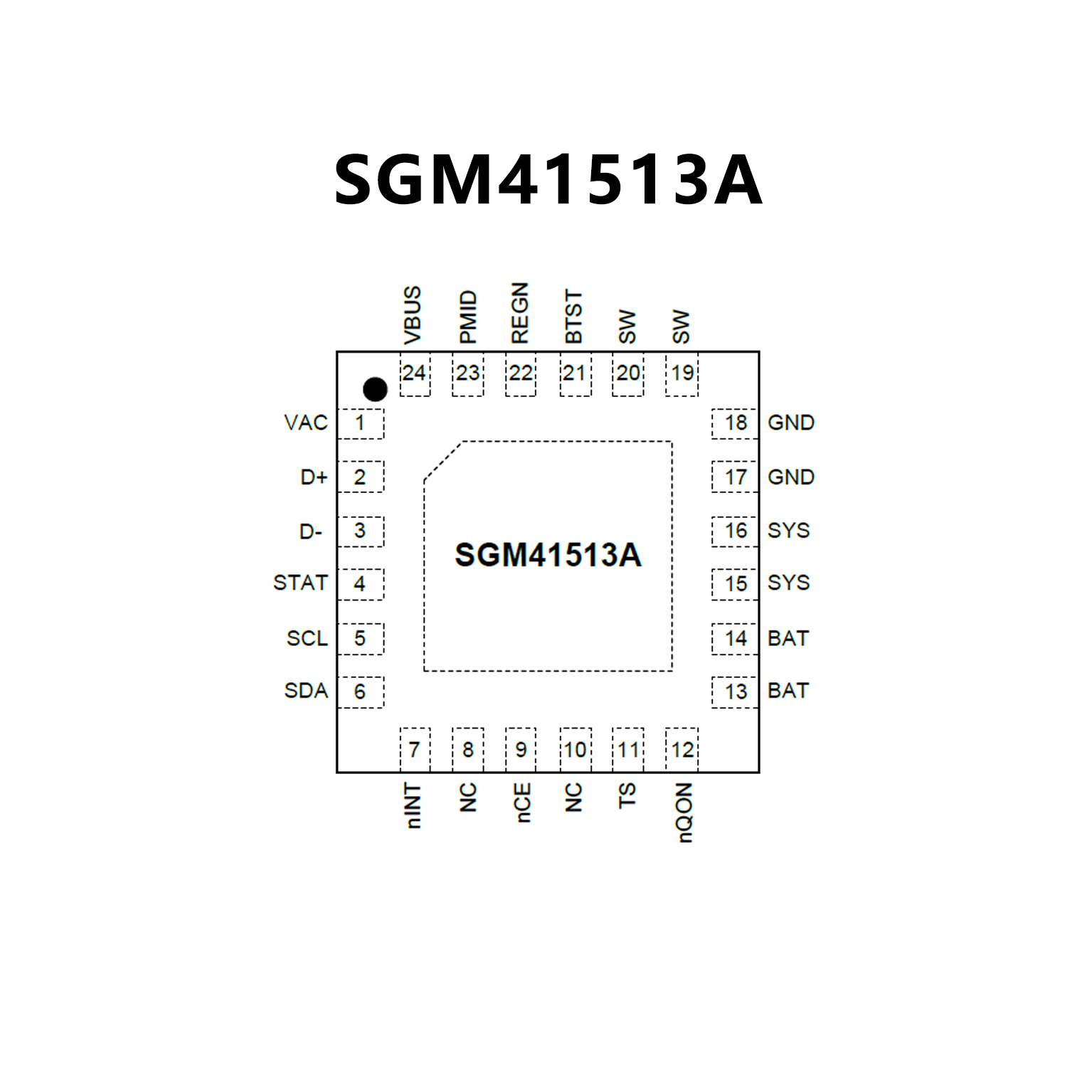

PIN CONFIGUTION
