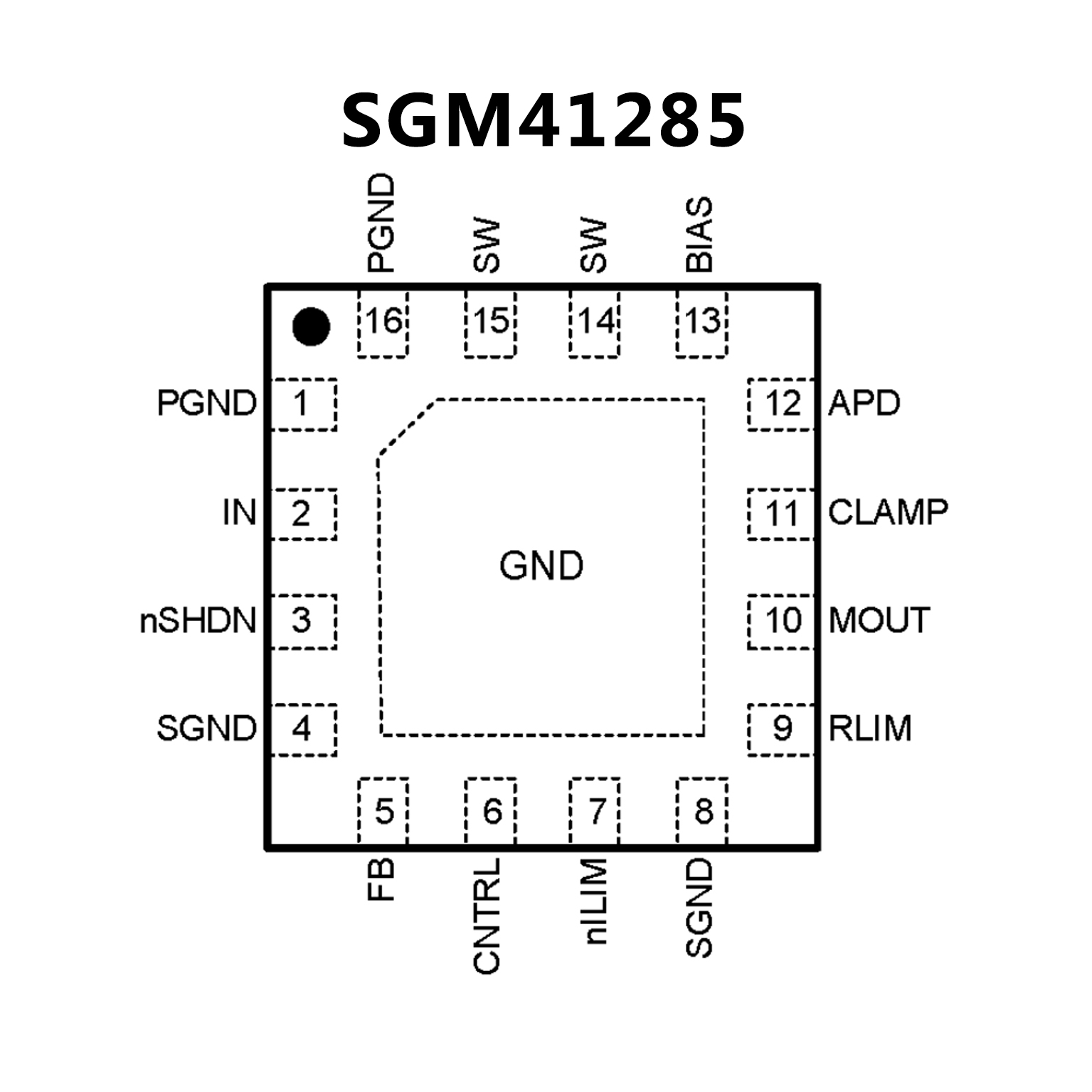

SGM41285.pdf? Input Voltage Range: 2.8V to 5.5V
? Wide Output Voltage Range from (VIN + 5V) to 70V
? Internal 0.6Ω (TYP) 72V MOSFET
? Accurate ±5% (1:1 and 5:1) High-side Current Monitor
? Resistor-Adjustable Ultra-Fast APD Current Limit
? Open-Drain Current-Limit Indicator Flag
? 850kHz Fixed Switching Frequency
? Constant PWM Frequency Provides Easy Filtering
? Internal Soft-Start Function
? Less than 1μA Shutdown Current
? -40℃ to +85℃ Operating Temperature Range
? Available in Green TQFN-3×3-16L Package

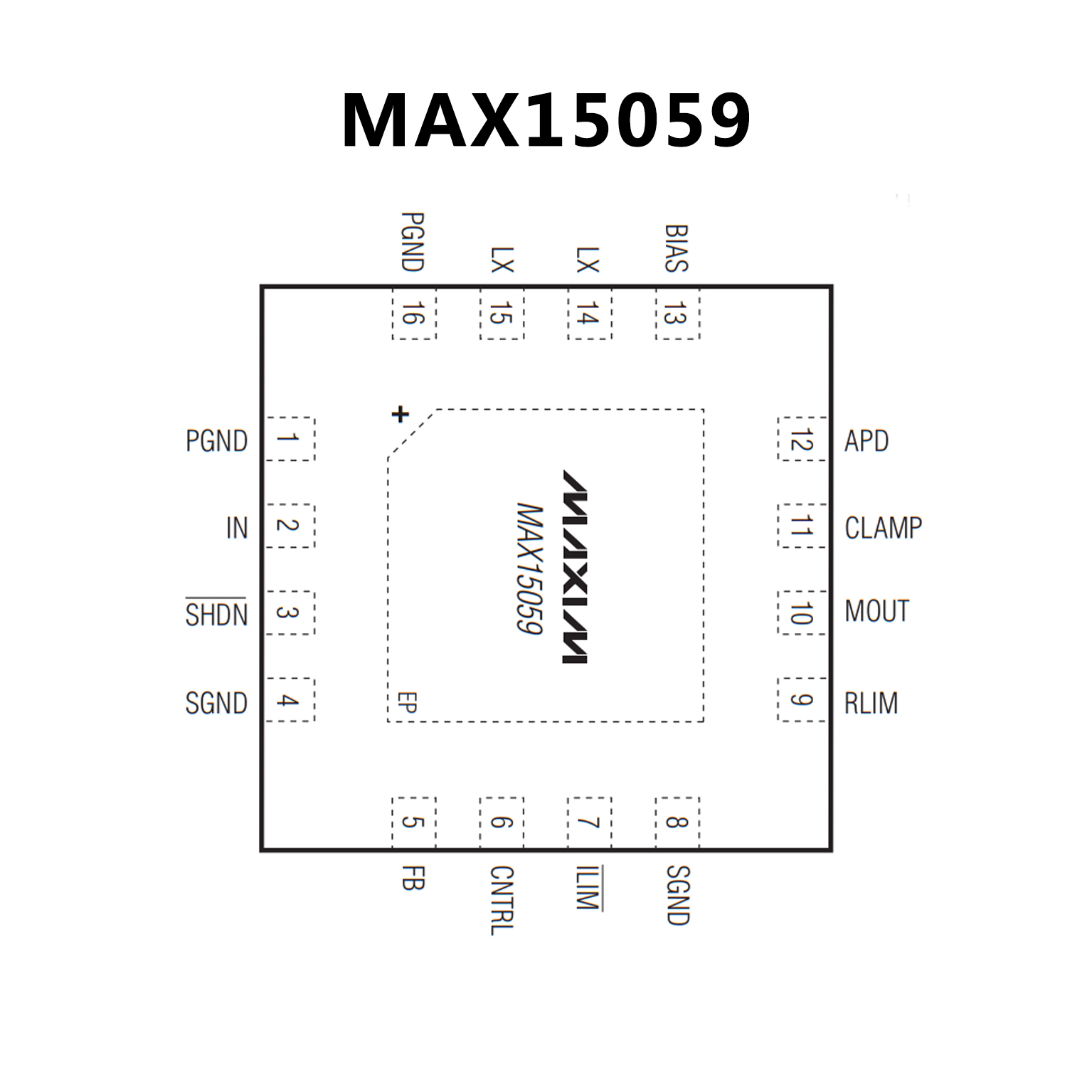

? Input Voltage Range: +2.8V to +5.5V
? Wide Output-Voltage Range from (VIN + 5V) to 76V
? Internal 1I (typ) 80V MOSFET
? Boost Converter Output Power: 300mW
? 200mW Version Available for Smaller Inductor
? Accurate Q5% (1:1 and 5:1) High-Side Current Monitor
? Resistor-Adjustable Ultra-Fast APD Current Limit
? Open-Drain Current-Limit Indicator Flag
? 400kHz Fixed-Switching Frequency
? Internal Soft-Start
? 2μA (max) Shutdown Current
? 3mm x 3mm, Lead-Free, 16-Pin TQFN-EP Package
