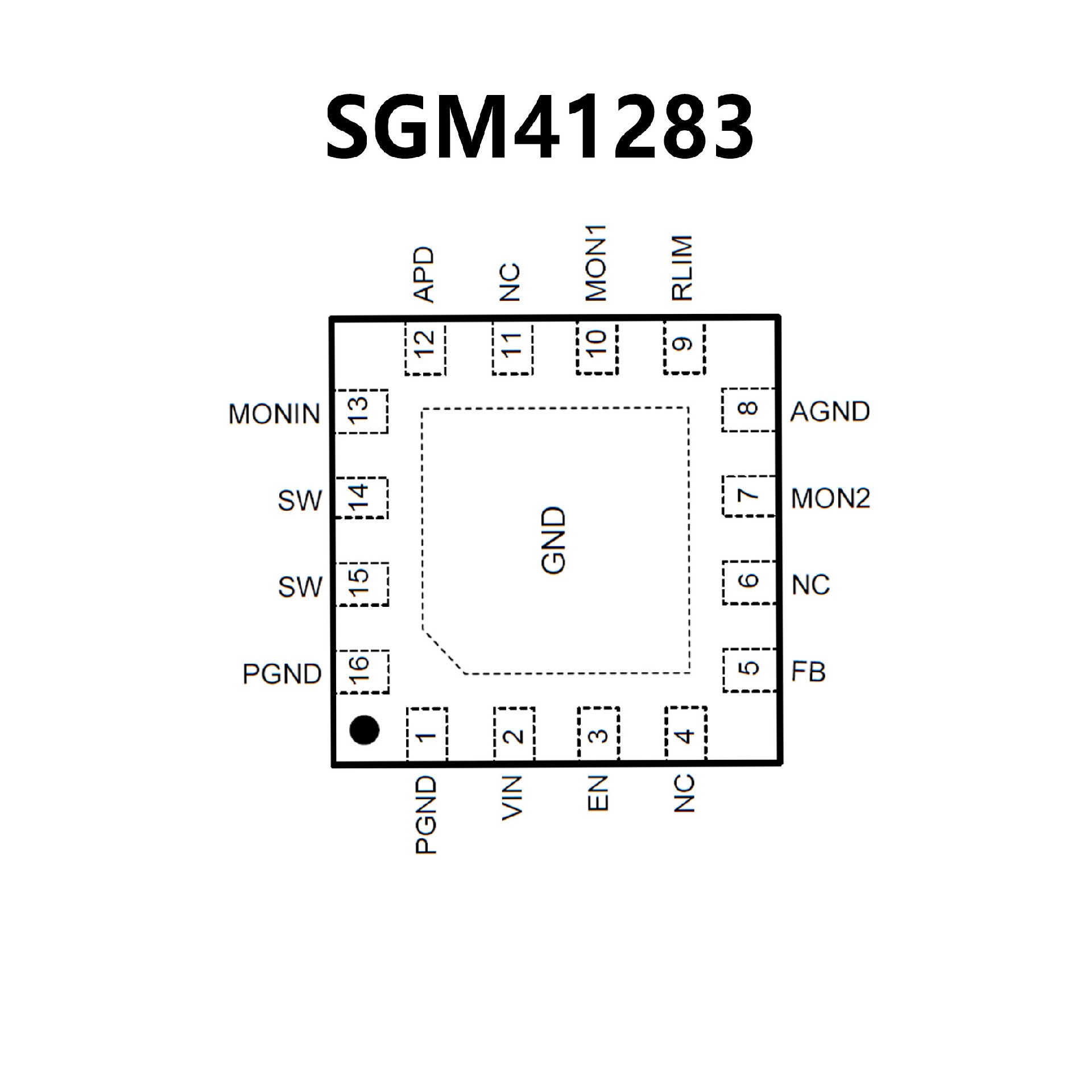

SGM41283.pdf? Input Voltage Range: 2.7V to 5.5V
? 72V/0.6Ω NFET with 1.1A Limit
? Up to 70V Output Voltage
? 50ns APD Current Monitoring
Response Speed
? 850kHz Fixed Switching Frequency
? Internal Compensation and Soft-Start
? High-side APD Current Monitor
with Less than ±5%Tolerance
? High-side Current Monitor
Ratios:10:1 and 2:1
? Thermal-Shutdown Protection
? Programmable APD Over-Current
Limit andProtection
? -40℃ to +125℃ Operating
Temperature Range
? Available in a Green TQFN-3×3-16L Package

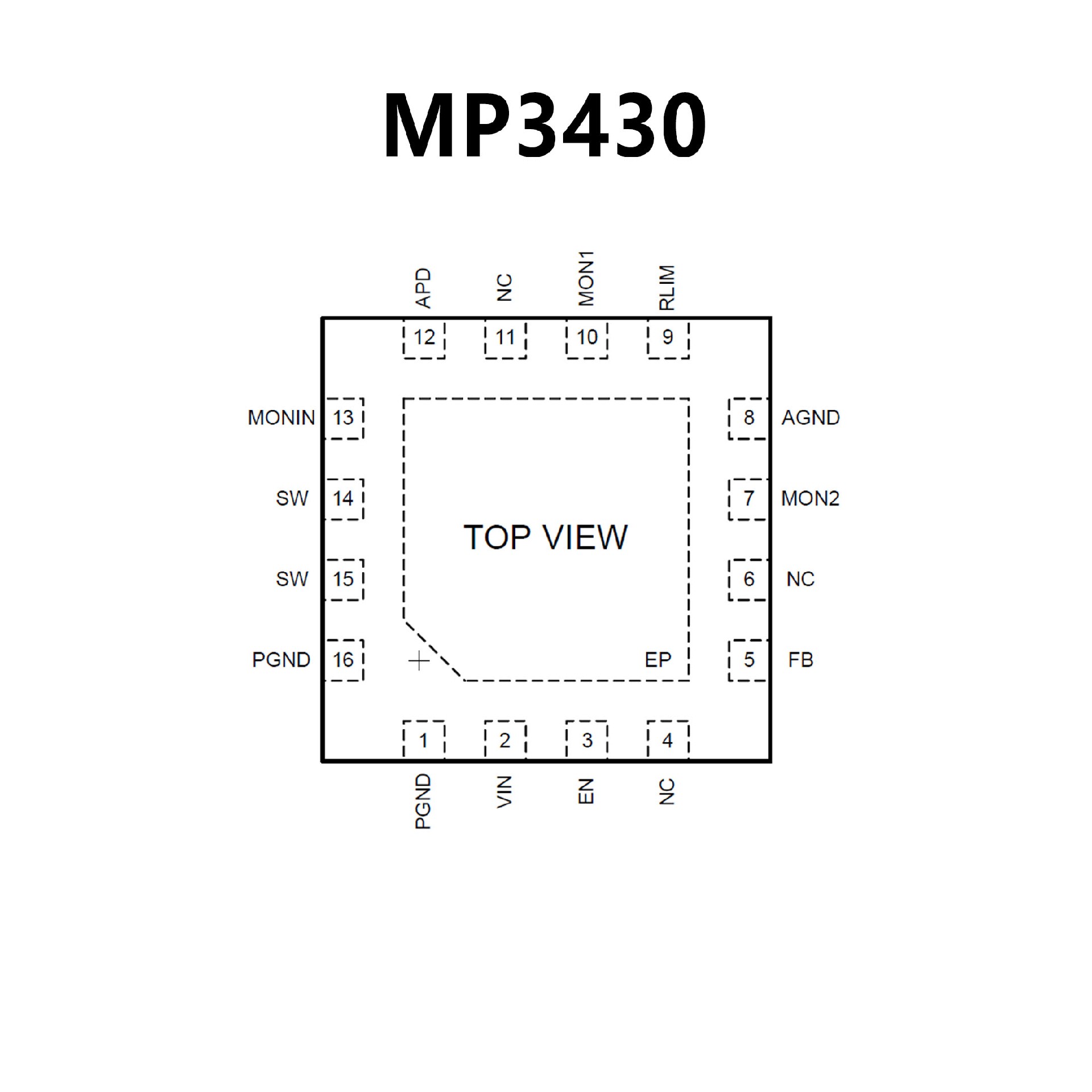

? 2.7V-to-5.5V Input Voltage
? 100V/1Ω NFET with 0.9A Limit
? Up to 90V Output Voltage
? 50ns APD Current Monitoring
ResponseSpeed
? 1.3MHz Fixed Switching Frequency
? Internal Compensation and Soft-Start
? High-Side APD Current Monitor with
lessthan ±5% Tolerance.
? 1:10 and 1:2 Ratio Outputs for
APD CurrentMonitoring
? Thermal-Shutdown Protection
? Programmable APD Over-Current
Limit andProtection
? 3×3mm QFN16 Package
