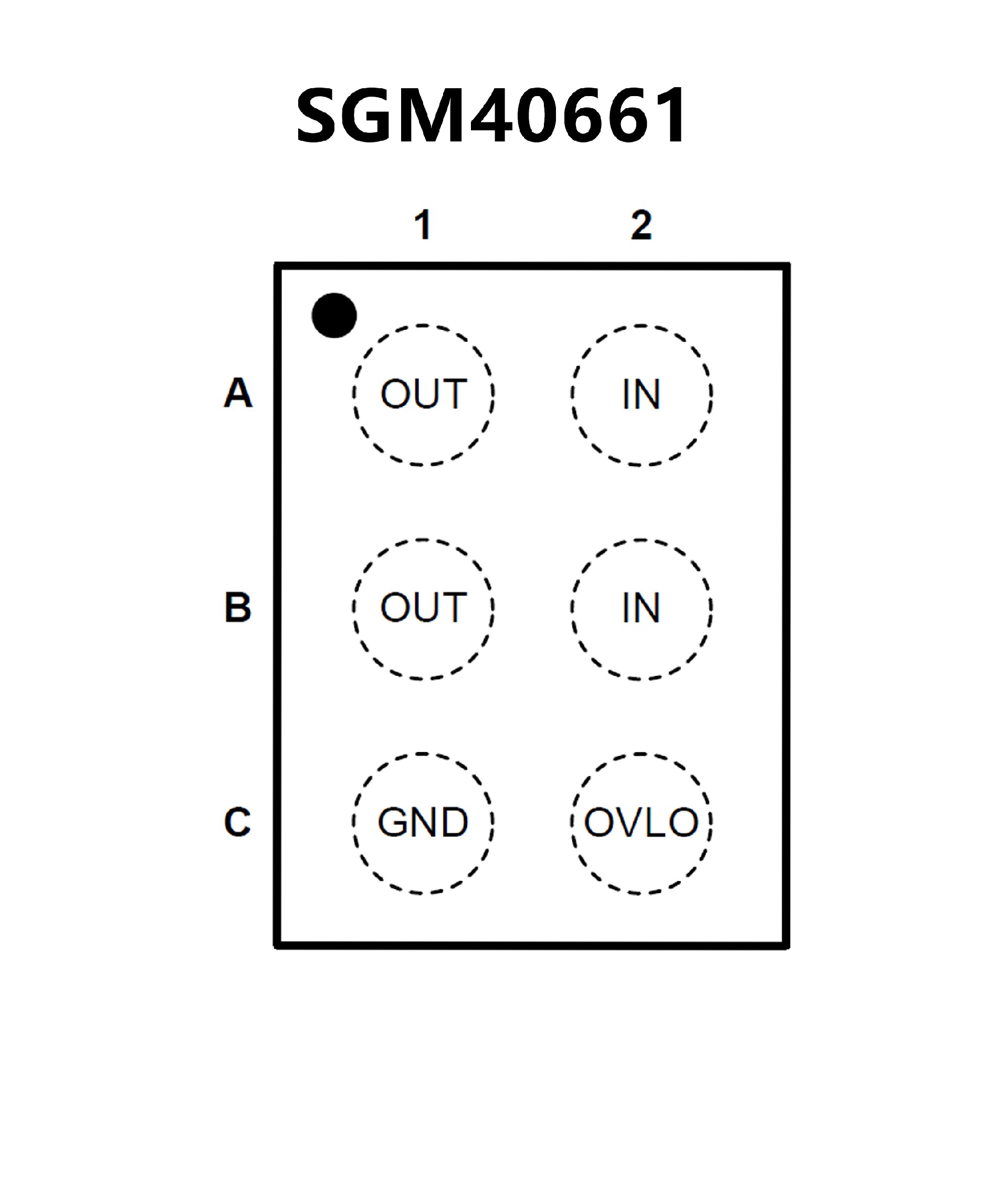

SGM40661.pdf? Wide Input Voltage Range: 2.5V to 28V
? Up to 4A Current Capability
? Integrated 27mΩ (TYP) N-Channel MOSFET
? Fast OVP Turn-Off Response Time: 80ns
? Flexible Over-Voltage Protection Design
Internal Preset OVLO Thresholds:
Fixed 15.61V (SGM40659)
Fixed 6.80V (SGM40660)
Fixed 5.94V (SGM40661)
Wide Adjustable OVLO Threshold Range from4V to 20V
? Surge Immunity up to +40V
? Auto-Enabled Switch with 15ms Debounce Time
? Under-Voltage (UVLO), Short-Circuit andThermal Shutdown Protection
? -40℃ to +85℃ Operating Temperature Range
? Available in Green WLCSP-1.30×0.94-6B Package

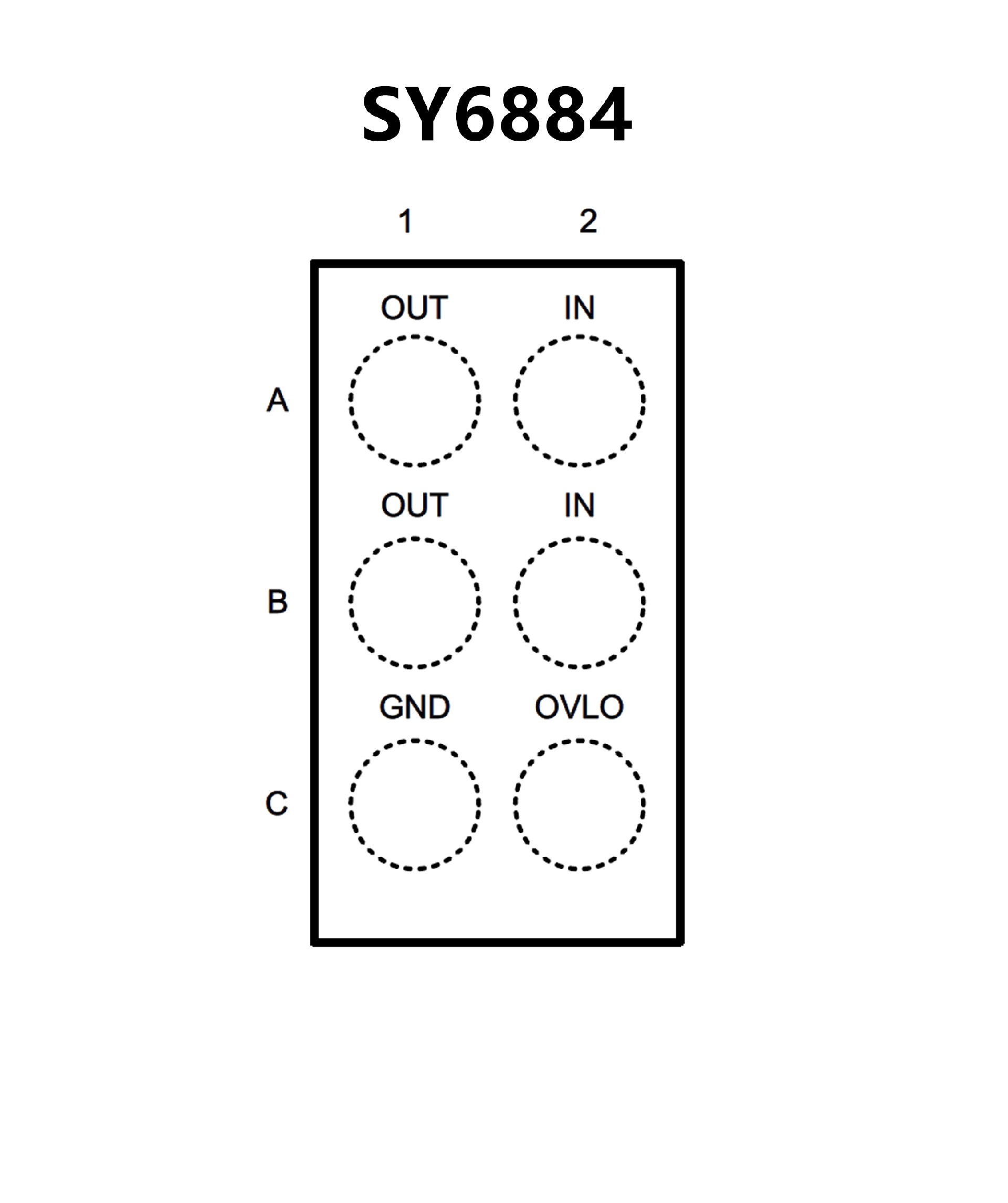

? VIN=2.5V to 25V, Absolute Maximum VIN=28V
? Extremely Low Power Path on Resistance RPWPT:
30mΩ Typ.
? Fast OVP Response Time: 100 ns.
? Auto-enabled Switch with 15ms Debounce Time
? Programmable Over Voltage Threshold From +4V to
+20V
? Internal Soft-start to Prevent Inrush Current
? Thermal Shutdown Protection & Auto Recovery
? Short Circuit Protection
? Compact Package: CSP 0.89×1.43-6
