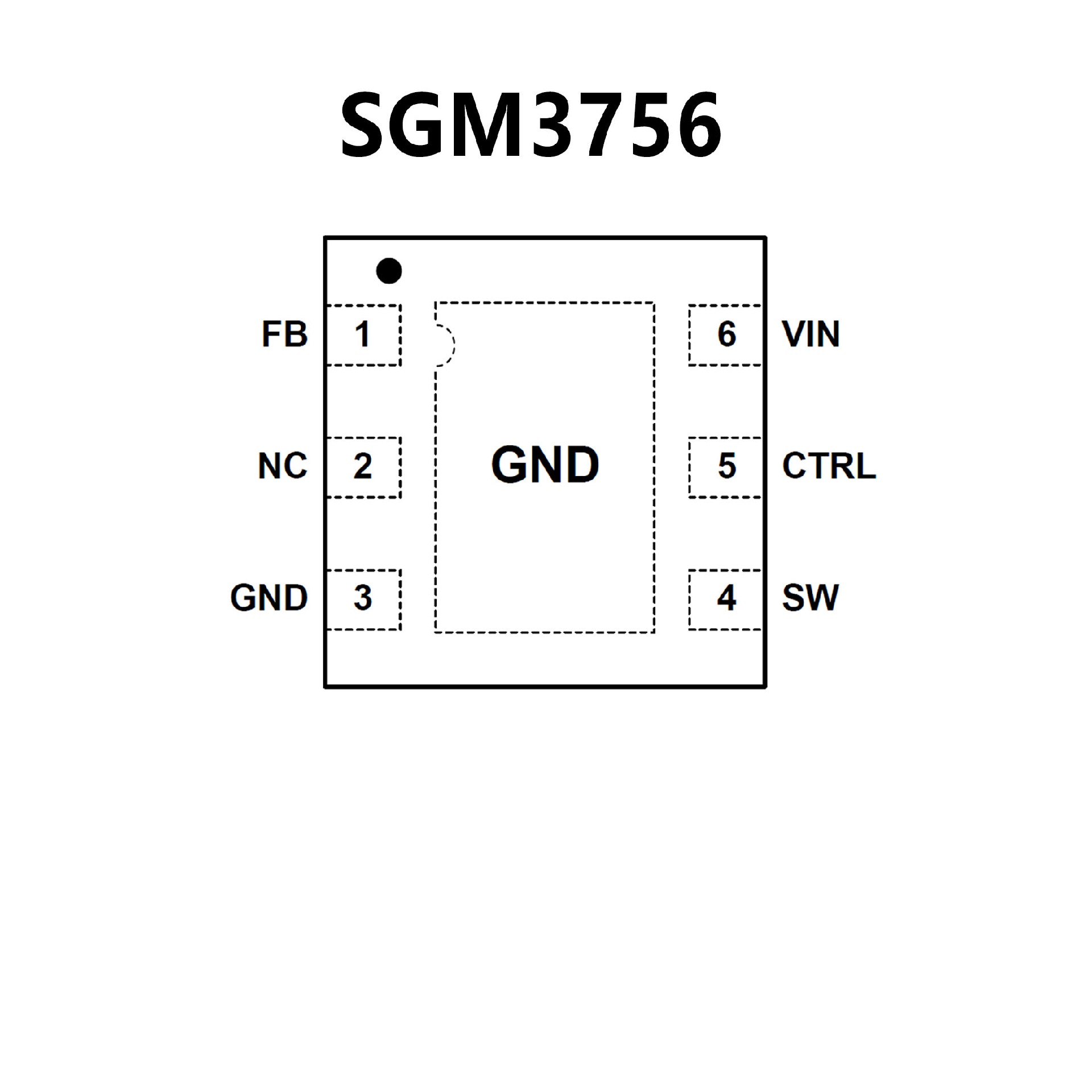

SGM3756.pdf? 1:250 Stable Luminance Dimming
? Low EMI by Conducting Ringing Cancelling
? Improved PSRR for Waveless Lighting
? Input Voltage Range: 2.7V to 5.5V
? Integrated 40V, 1.5A Current Limit MOSFET
? 38V Open LED Protection for 10 LEDs in Series
? 1.2MHz Switching Frequency
? 200mV Reference Voltage
? PWM Brightness Control
? Under-Voltage Protection
? Up to 90% Efficiency
? Built-in Soft-Start Function
? Thermal Shutdown
? -40℃ to +85℃ Operating Temperature Range
? Available in Green TDFN-2×2-6L Package

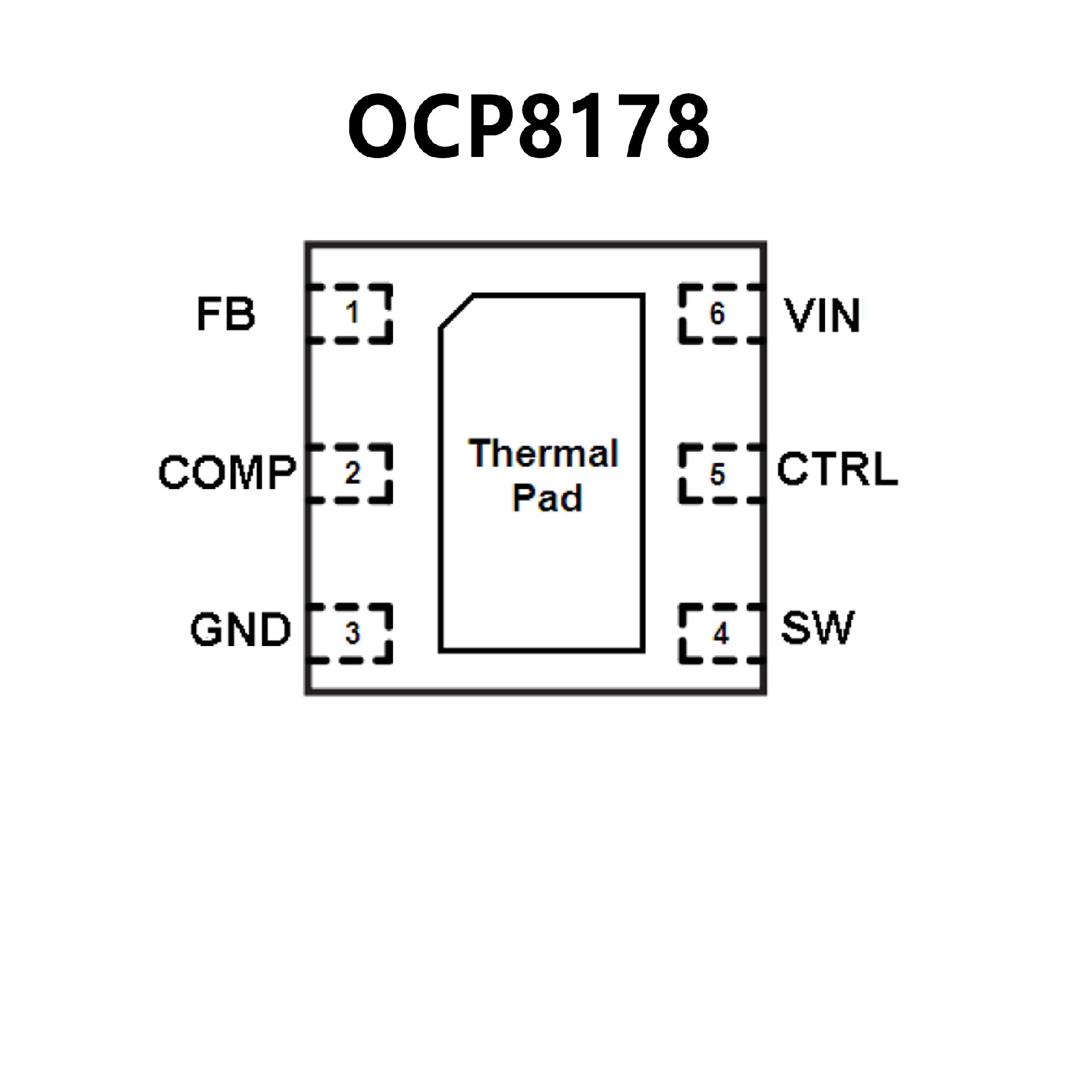

? 2.7V to 5.5V Input Voltage Range
? 38V Open LED Protection
? 200mV Reference Voltage
? Flexible Digital and PWM Brightness Control
? Built-in Soft Start
? Up to 90% Efficiency
? 2mm × 2mm × 0.8mm DNF2X2-6L(6-pinDFN )
Package With Thermal Pad
? Applications
? Cellular Phones
? Portable Media Players
? Ultra Mobile Devices
? GPS Receivers
? White LED Backlighting for Media Form FactorDisplay
