Ultra Low On-Resistance, Negative Signal Passing, Dual SPDT Analog Switch Driver, P2P WAS4729.
SGM3718
SGM3718.pdf
SGM3718.pdfFEATURES
? Supply Voltage Range: 2.5V to 5V
? Ultra Low On-Resistance: 0.6Ω (TYP) at 4.5V
? -2V Low Distortion Negative Signal Passing
? Fast Switching Times
tON = 17ns (TYP)
tOFF = 24ns (TYP)
? High Off-Isolation: -57dB at 1MHz
? Low Crosstalk: -61dB at 1MHz
? Rail-to-Rail Input and Output Operation
? 1.8V Logic Compatible Control Pin
? Break-Before-Make Switching

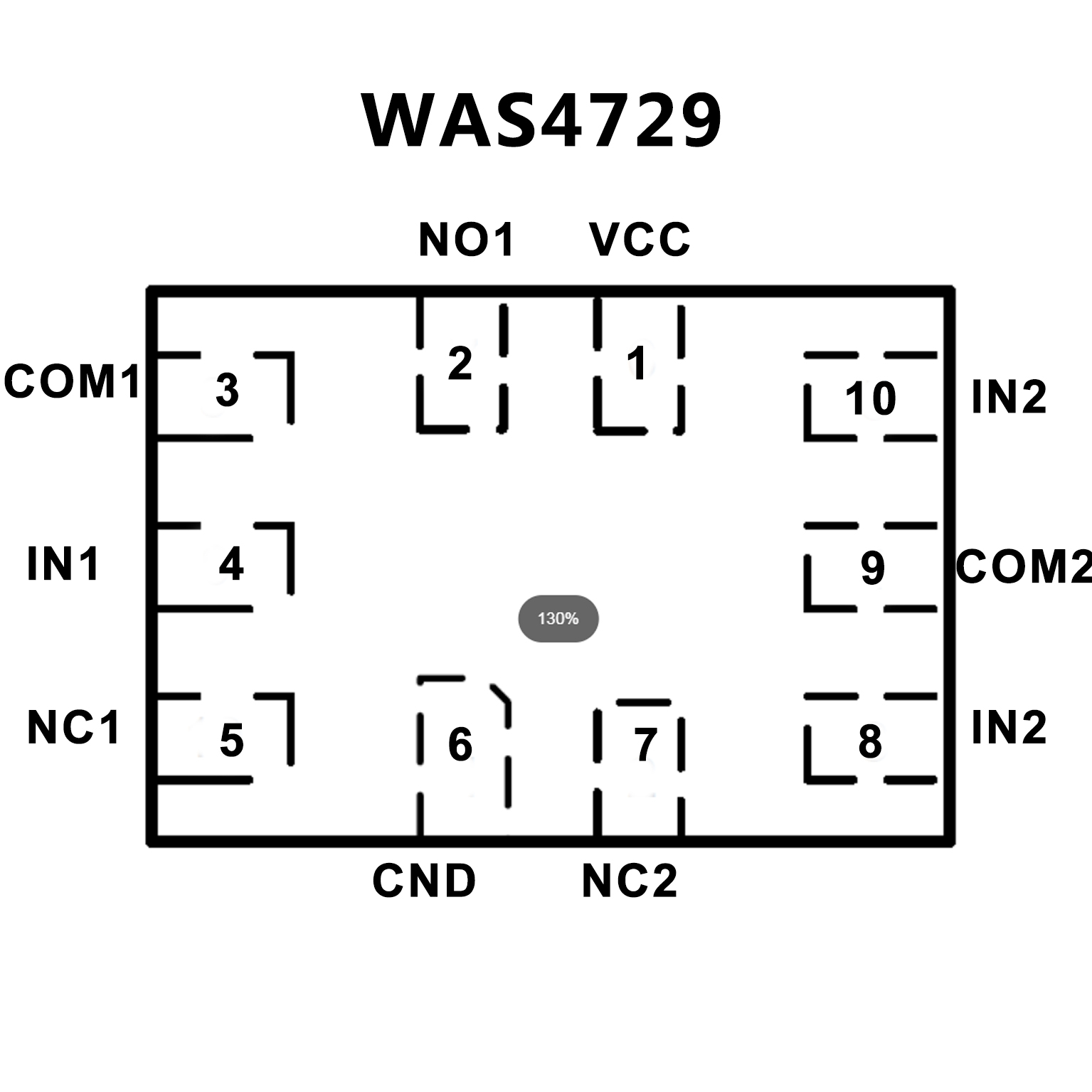

PIN CONFIGUTION
優(yōu)勢替代
FEATURES
? Supply voltage : 2.3 ~ 5.5V
? ultra-low On Resistance : 0.75Ω @ 3.6V
? High Off isolation : -81dB @ 1KHz
? Crosstalk Rejection : -83dB @ 1KHz
? -3dB Bandwidth : 80MHz
? THD for 2Vp-p @RL=32Ω : 0.05%
? Signal-to-Noise Ratio : 150dBV
? Break-Before-Make Switching
? HBM JEDEC: JESD22-A114
? IO to GND : ±8KV
? Power to GND : ±5KV

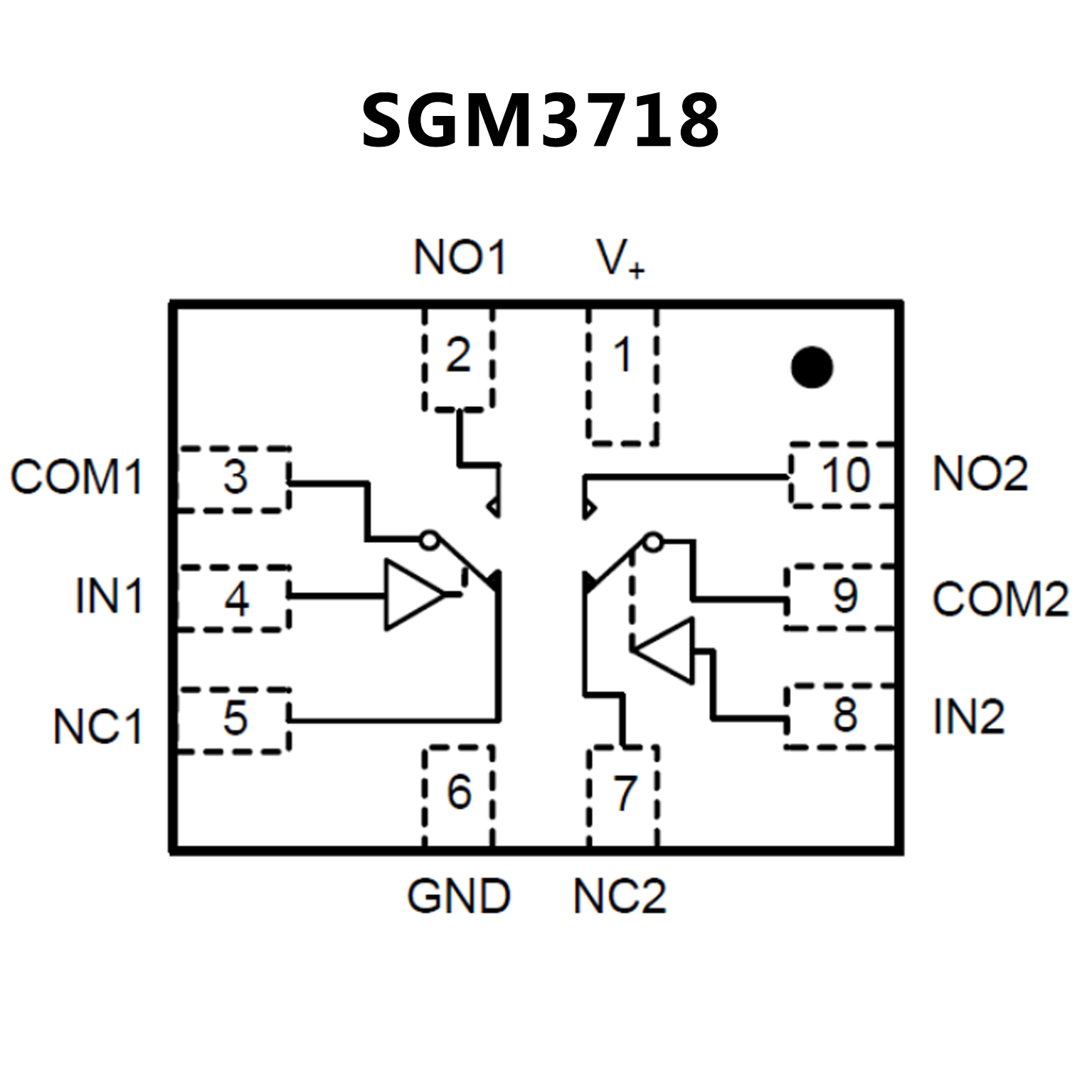

PIN CONFIGUTION
