Micro Power Operational Amplifier, SGM321 Replace TLV6001.
SGM321
SGM321.pdf
SGM321.pdfFEATURES
? Low Cost
? Rail-to-Rail Input and Output 0.8mV Typical VOS
? Unity Gain Stable
? Gain-Bandwidth Product: 1MHz
? Very Low Input Bias Current: 10pA
? Supply Voltage Range: 2.1V to 5.5V
? Input Voltage Range: -0.1V to +5.6V with VS = 5.5V
? Low Supply Current: 60μA/Amplifier
? Small Packaging
SGM321 Available in SOT-23-5 and SC70-5

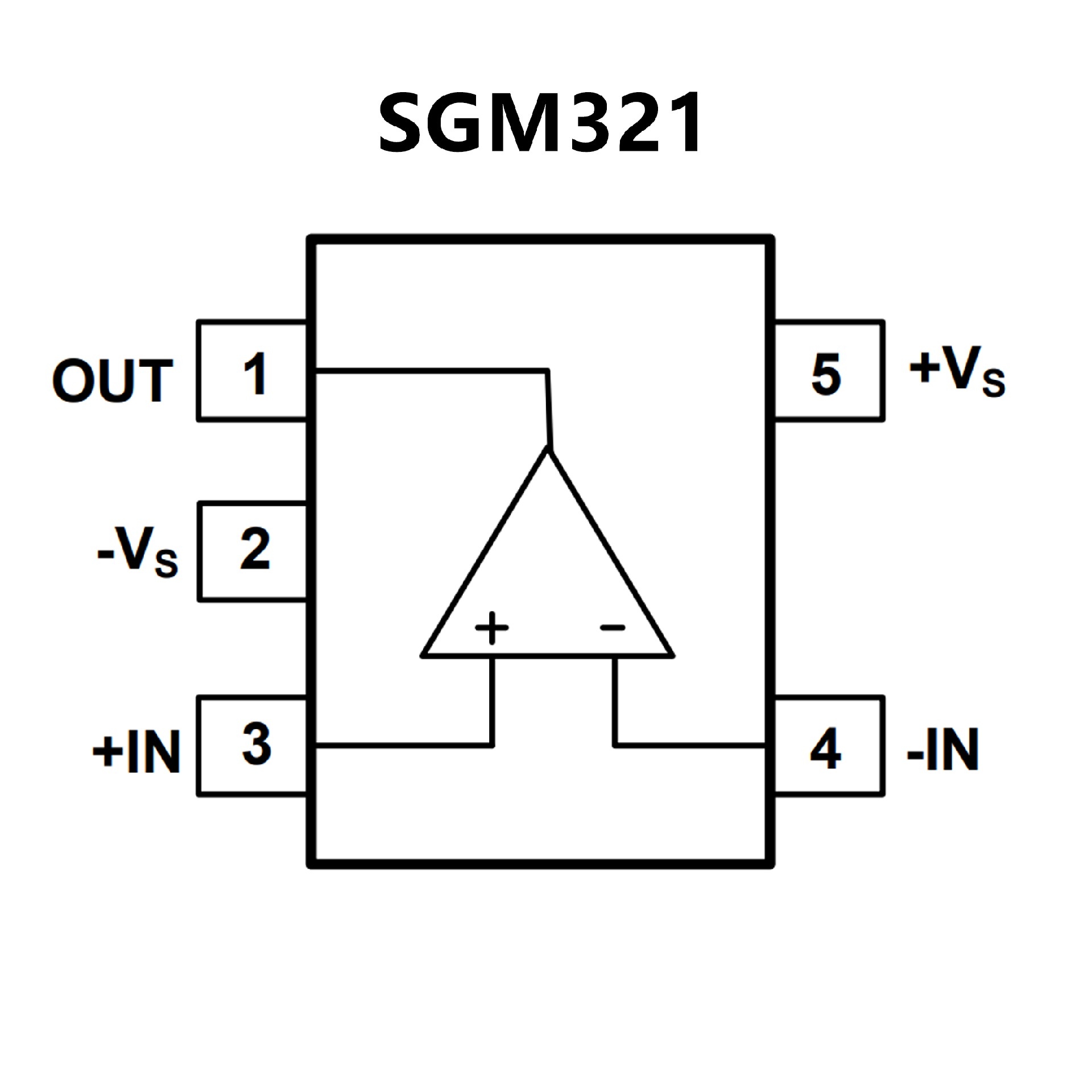

PIN CONFIGUTION
優(yōu)勢(shì)替代
FEATURES
? Precision Amplifiers for Cost-Sensitive Systems
? Low Quiescent Current: 75 μA/ch
? Supply Range: 1.8 V to 5.5 V
? Input Voltage Noise Density: 28 nV/√Hz at 1 kHz
? Rail-to-Rail Input/Output
? Gain Bandwidth: 1 MHz
? Low Input Bias Current: 1.0 pA
? Low Offset Voltage: 0.75 mV
? Unity-Gain Stable
? Internal RF/EMI Filter

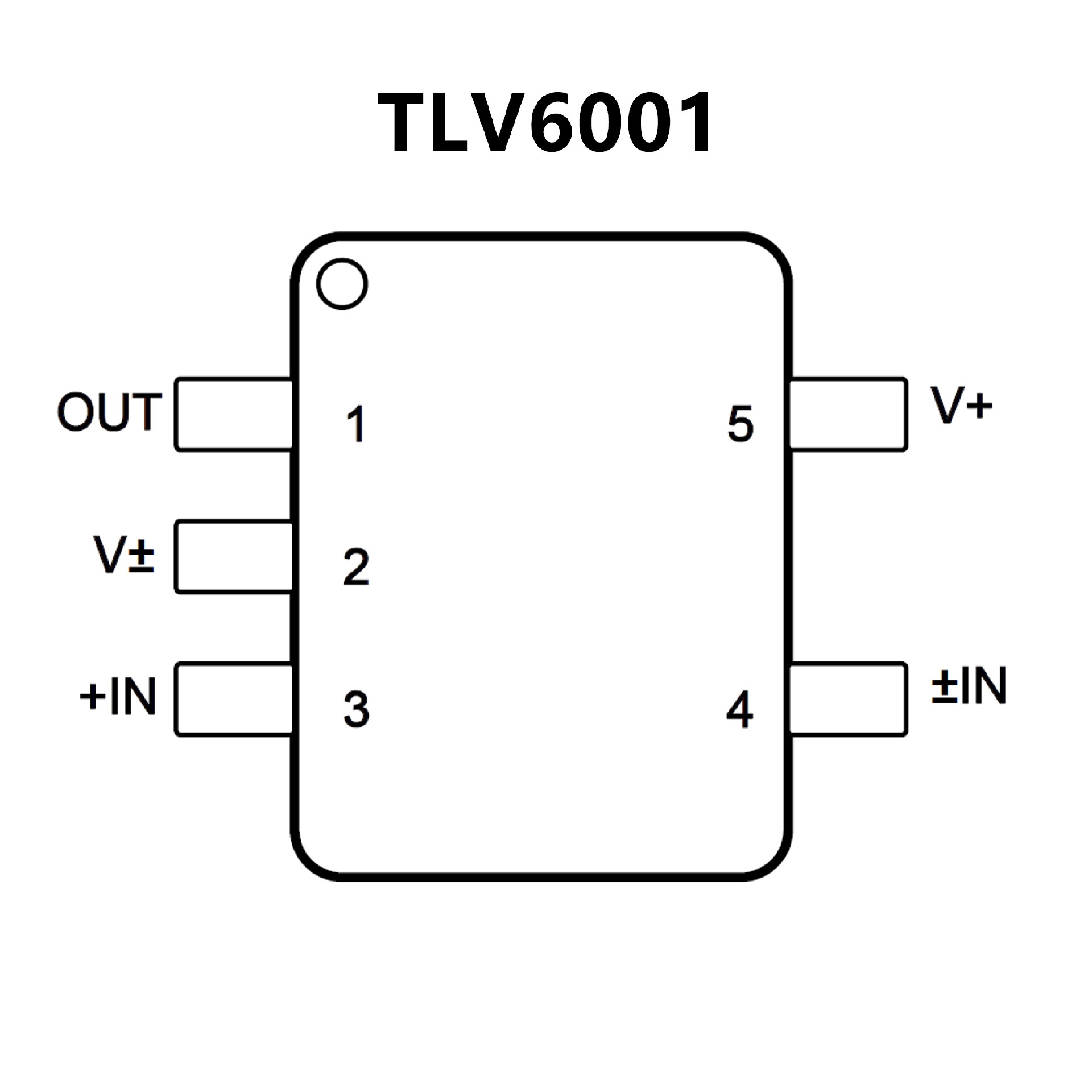

PIN CONFIGUTION
