Unregulated 60mACharge Pump Voltage Inverter,SGM3206 Replace NJU7665.
SGM3206
SGM3206.pdf
SGM3206.pdfFEATURES
? Inverts Input Supply Voltage
? Up to 60mA Output Current
? Input Voltage Range from 1.4V to 5.5V
? Quiescent Current: 115μA (TYP)
? Integrated Active Schottky Diode
for Start-Up intoLoad
? -40℃ to +85℃ Operating Temperature Range
? Available in Green SOT-23-5 Package

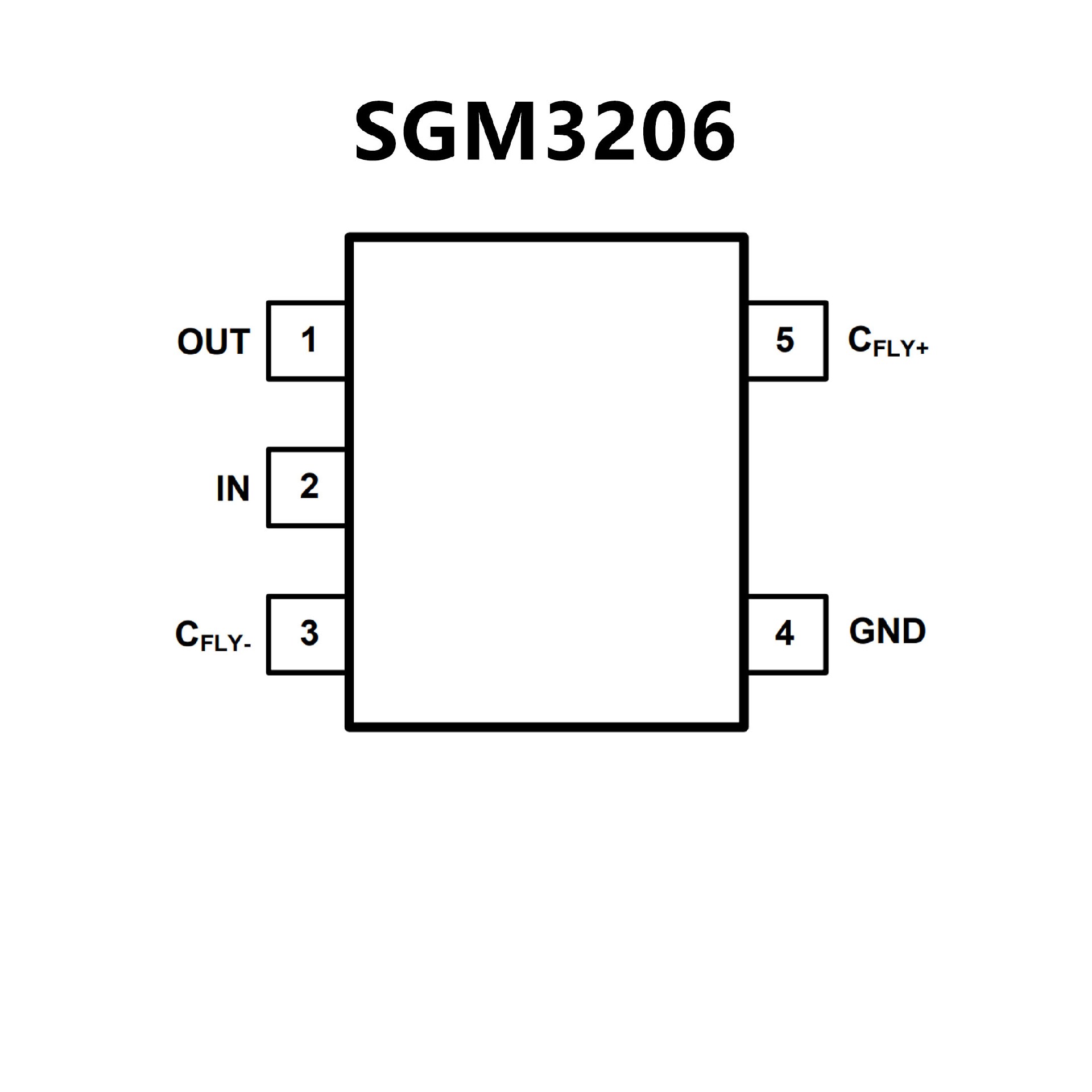

PIN CONFIGUTION
優勢替代
FEATURES
? Input Voltage : 1.5 to 5.5V
? Switching Frequency : fsw = 7.5k, 75k, 150kHz
? Low Output Resistance : 75Ω MAX.
(C version, C = 1μF, VIN = 3V)
? Low Operating Current : 100μA MAX. (A version)
? C-MOS Technology
? Package Outline : MTP-5

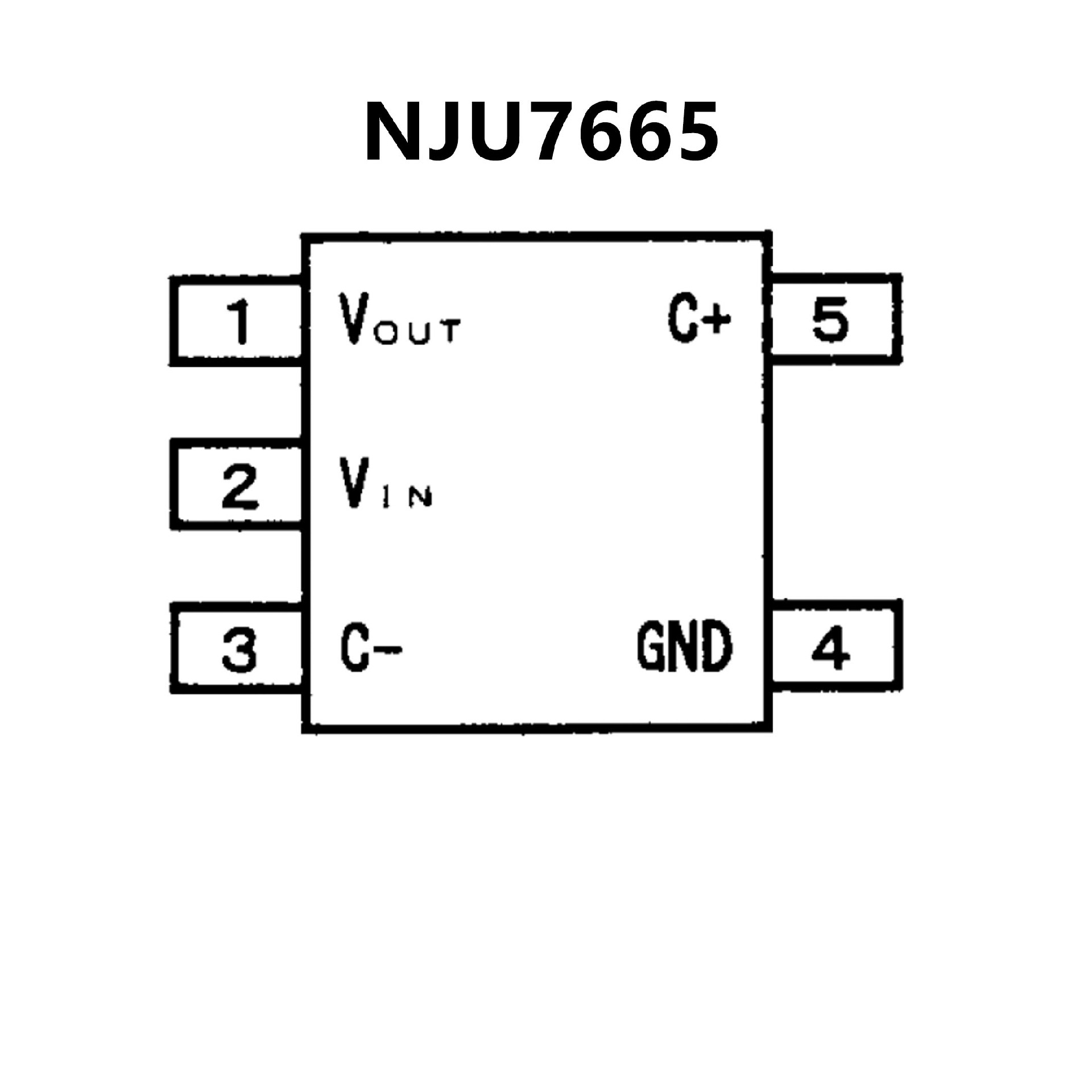

PIN CONFIGUTION
