Low Loss Power Distribution Switch, SGM2590 Replace SY6280AAAC.
SGM2590
SGM2590.pdf
SGM2590.pdfFEATURES
? High-side N-MOSFET
? On-Resistance: 60mΩ (TYP)
? Programmable Current Limit Range: 0.1A to 3A
1.5A at RILIM = 4.53kΩ
? Input Voltage Range: 2.5V to 6V
? Quiescent Current: 27μA (TYP)
? Shutdown Current: 0.28μA (TYP)
? Soft-Start Function
? Over-Temperature Protection
? Under-Voltage Lockout Protection for VIN
? No Reversed Leakage Current (Reverse Blocking)
? Quick Output Discharge (SGM2590D Only)
? 1.2MΩ Pull-Down Resistor at EN Pin
? Available in a Green SOT-23-5 Package

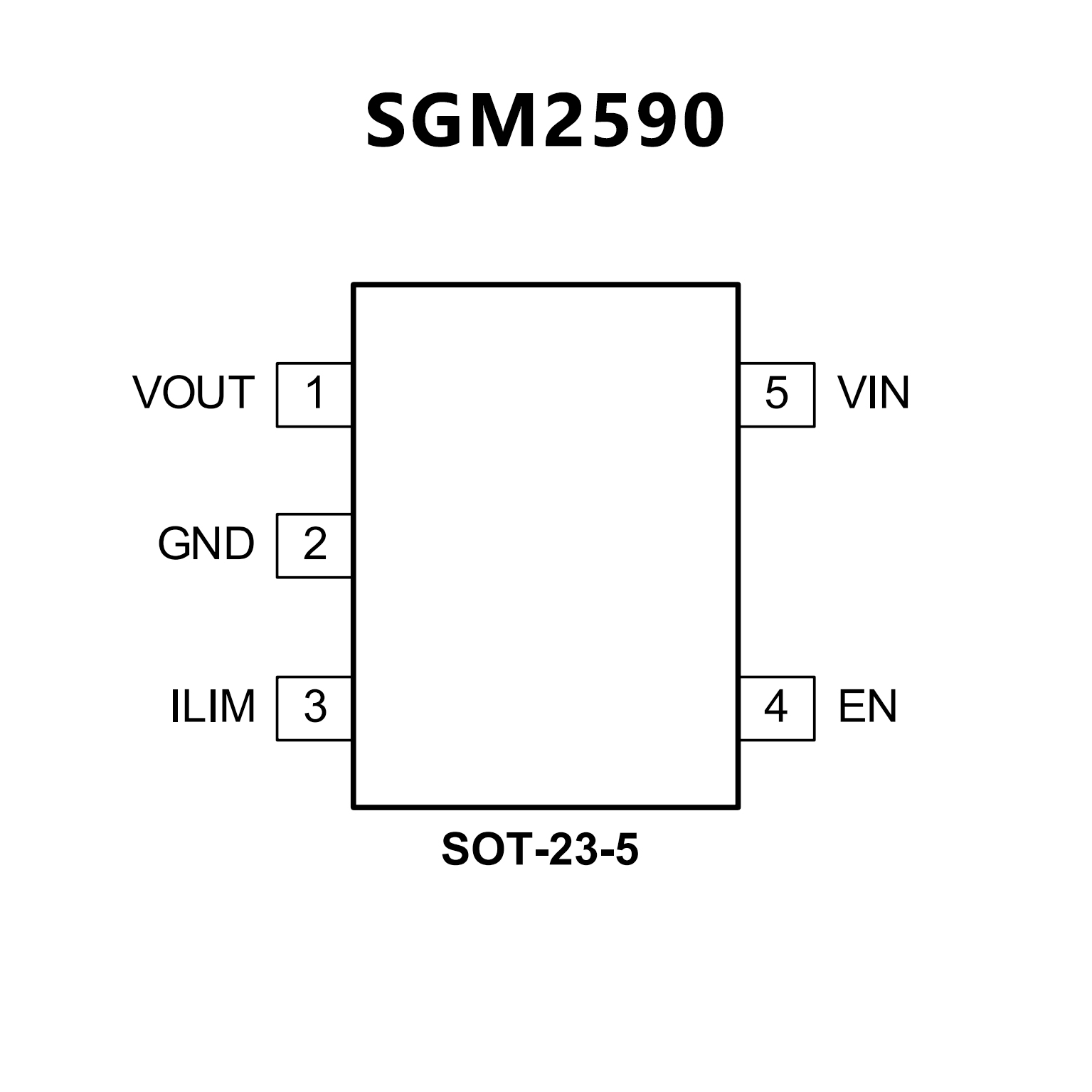

PIN CONFIGUTION
優勢替代
FEATURES
? Input Voltage: 2.4V to 5.5V
? 2A Load Current Capability
? Programmable Current Limit
? Enable Polarity: Active High
? Over Temperature Protection
? Reverse Blocking (No Body Diode)
? OUT Can be Forced Higher Than IN at Shutdown
? Output Discharge Function
SY6280: Auto Output Discharge Function
SY6280A: No Output Discharge Function
? Compact SOT23-5 Package Minimizes the Board
Space

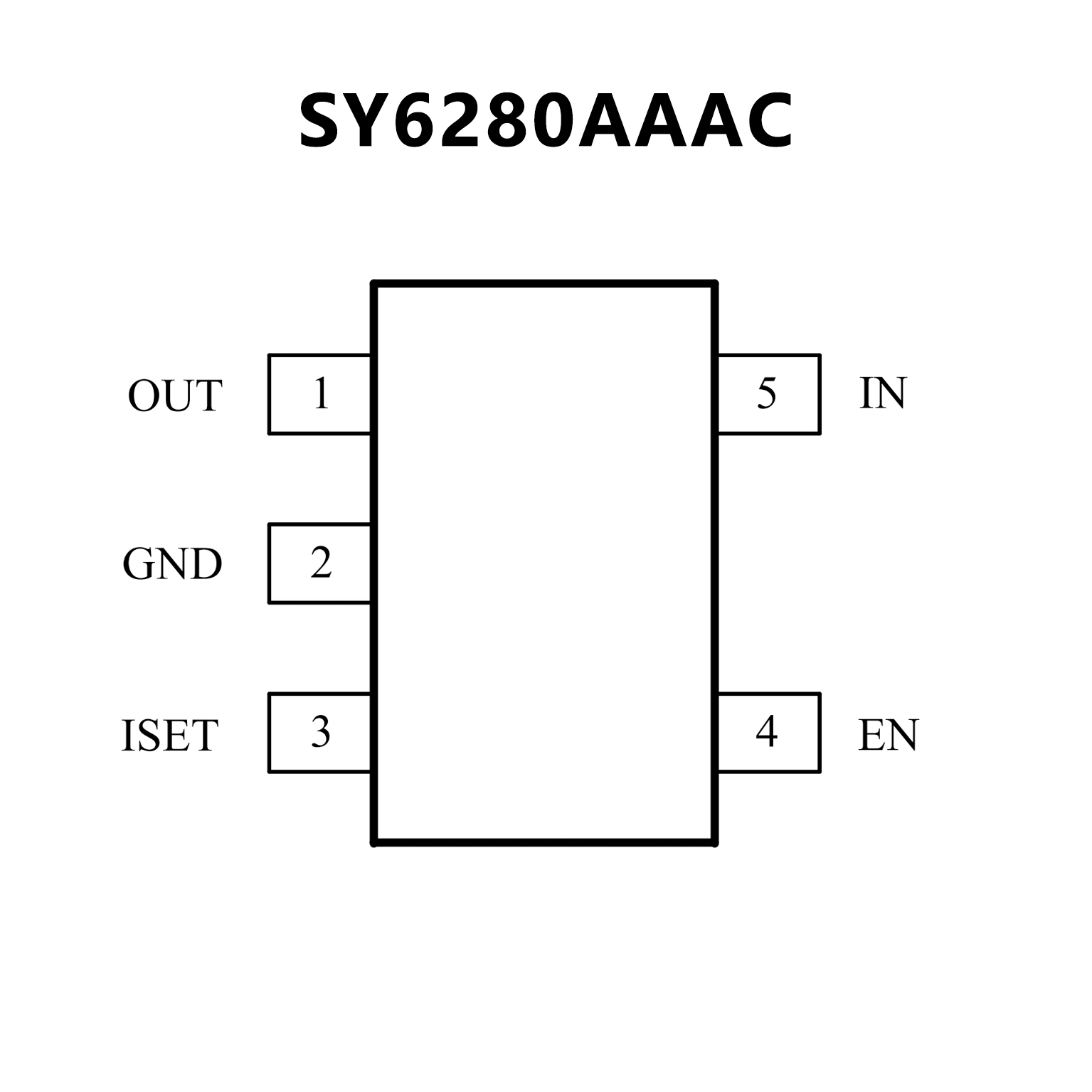

PIN CONFIGUTION
