Power Distribution Switch,SGM2588C Replace TPS22929.
SGM2588C
SGM2588C.pdf
SGM2588C.pdfFEATURES
? 100mΩ (TYP) High-side N-Channel MOSFET
? Three Current Limit Levels SGM2588C/D/I:
2100 ± 210mA
? Input Voltage Range: 2.5V to 5.5V
? Quiescent Current: 23μA (TYP)
? Shutdown Current: 0.1μA (TYP)
? Soft-Start Function
? Thermal Shutdown Protection
? Under-Voltage Lockout Protection for VIN
? No Reversed Leakage Current (Reverse Blocking)
? Fault Flag (nFAULT) with 13ms Filter Eliminates
False Assertions
? Automatic Output Discharge in Shutdown Mode
(SGM2588A/B/C/D/E/F)
? 500kΩ Pull-Down Resistor at EN Pin (SGM2588G/I/K)
? Evaluated to IEC 60950-1, Ed 2, Am1, Annex CC,
Test Program 1 with CB Report (SGM2588A/C/E/G/I/K)
? Available in a Green SOT-23-5 Package

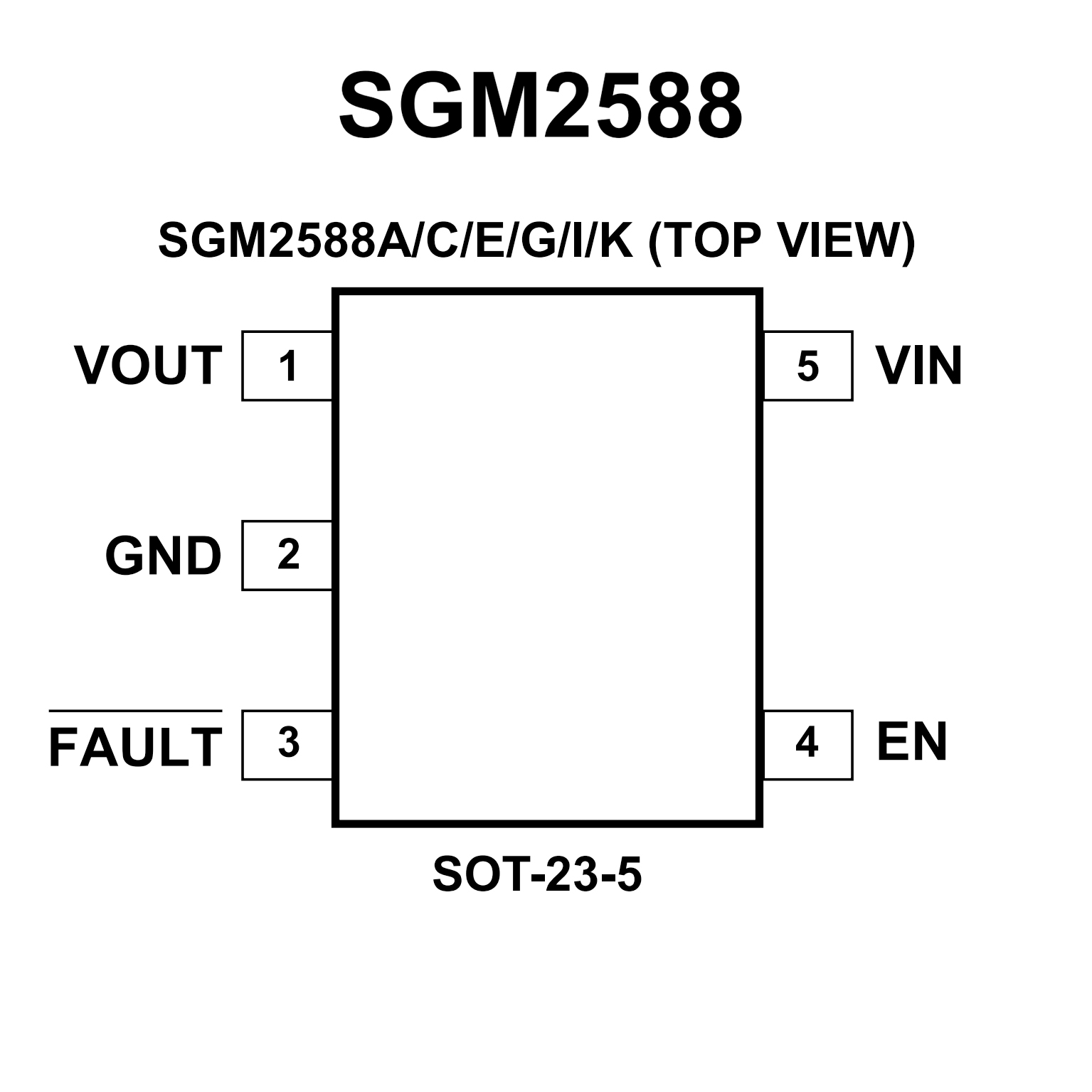

PIN CONFIGUTION
