SGM2588C.pdf? 100mΩ (TYP) High-side N-Channel MOSFET
? Three Current Limit Levels
SGM2588A/B/G: 1100 ± 100mA
SGM2588C/D/I: 2100 ± 210mA
SGM2588E/F/K: 2600 ± 300mA
? Input Voltage Range: 2.5V to 5.5V
? Low 23μA Quiescent Current
? Typical 0.1μA Shutdown Current
? Soft-Start Function
? Thermal Shutdown Protection
? Under-Voltage Lockout Protection for VIN
? No Reversed Leakage Current (Reverse Blocking)
? Fault Flag (FAULT ) with 13ms Filter Eliminates
False Assertions
? Automatic Output Discharge in Shutdown Mode
(SGM2588A/B/C/D/E/F)
? 500kΩ Pull-Down Resistor at EN Pin
(SGM2588G/I/K)

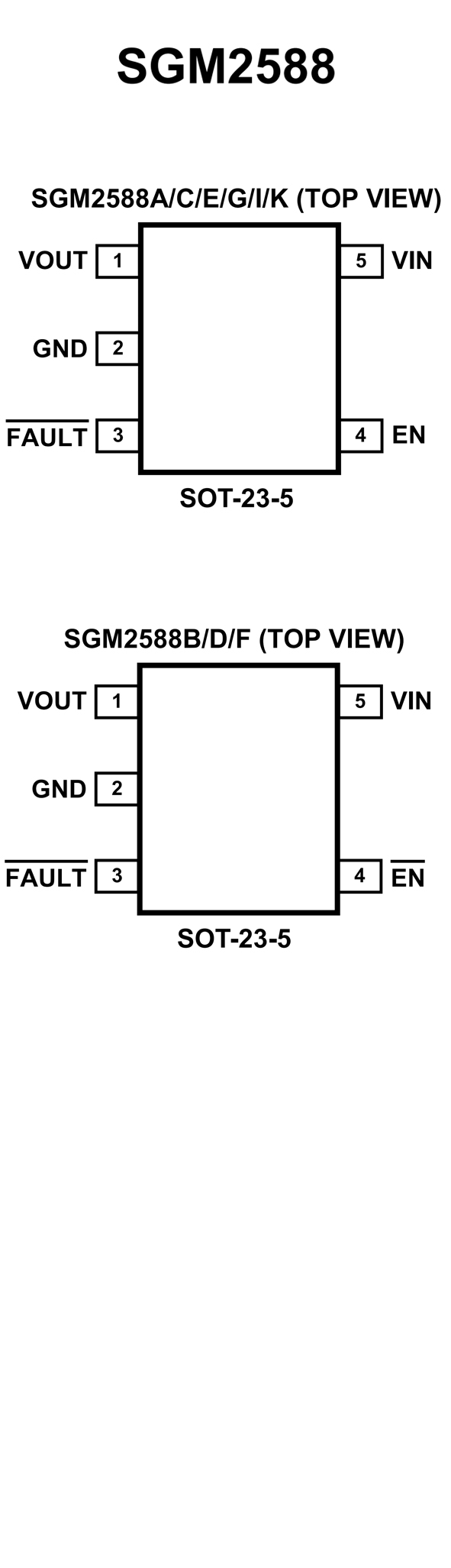

? Available in the Green SOT-23-5 Package
? 100mΩ (typ.) N-MOSFET Switch
? Operating Range : 2.7V to 5.5V
? Reverse Blocking Current
? Under Voltage Lockout
? Thermal Protection with Foldback
? Over Current Protection
? Short Circuit Protection
? Slew Rate Limited Turn-On Time 3ms (5V)
? RoHS Compliant and Halogen Free
