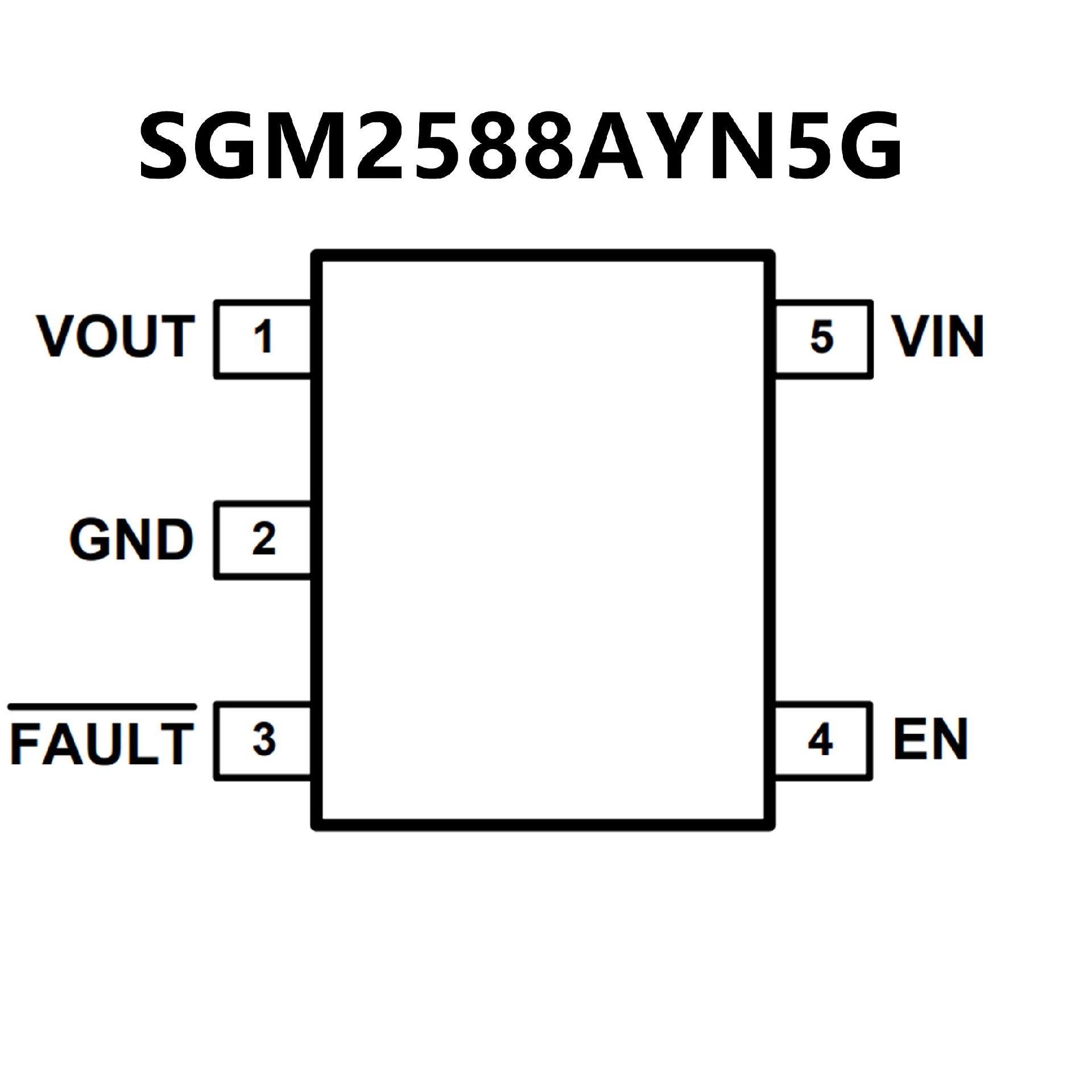

SGM2588.pdf? 100m? (TYP) High-side N-Channel MOSFET
? Three Current Limit Levels
SGM2588A/B/G: 1100 ± 100mA
SGM2588C/D/I: 2100 ± 210mA
SGM2588E/F/K: 2600 ± 300mA
? Input Voltage Range: 2.5V to 5.5V
? Low 23μA Quiescent Current
? Typical 0.1μA Shutdown Current
? Soft-Start Function
? Thermal Shutdown Protection
? Under-Voltage Lockout Protection for VIN
? No Reversed Leakage Current (Reverse Blocking)
? Fault Flag (FAULT ) with 13ms Filter Eliminates
False Assertions
? Automatic Output Discharge in Shutdown Mode
(SGM2588A/B/C/D/E/F)
? 500k? Pull-Down Resistor at EN Pin
(SGM2588G/I/K)
? Available in the Green SOT-23-5 Package
? Single USB Port Power Switches
? Over-Current and Thermal Protection
? 1.5A Accurate Current Limiting
? Reverse Current Blocking
? 95m? On-Resistance
? Input Voltage Range: 2.7V – 5.5V
? 0.6ms Typical Rise Time
? Very Low Shutdown Current: 1μA (max)
? Fault Report (FLG) with Blanking Time (7ms typ)
? ESD Protection: 4kV HBM, 300V MM

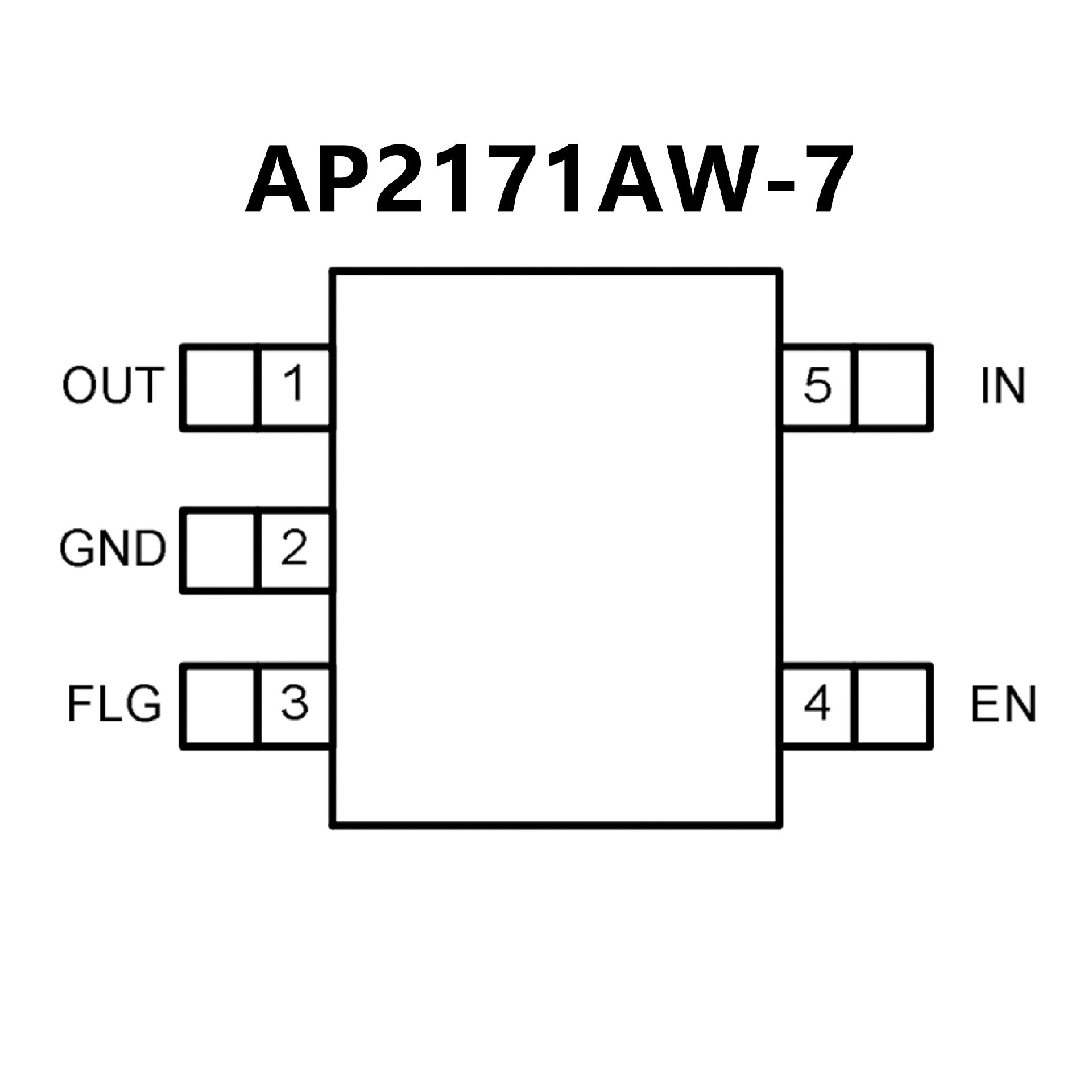

? Active Low (AP2161A) or Active High (AP2171A) Enable
? Ambient Temperature Range: -40°C to +85°C
? SOT25, SO-8, MSOP-8EP (Exposed Pad),
and U-DFN2018-6:
Available in “Green”
Molding Compound (No Br, Sb)
? Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
? Halogen and Antimony Free. “Green” Device (Note 3)
? UL Recognized, File Number E322375
? IEC60950-1 CB Scheme Certified
