2.5A Adjustable Current Limit,SGM2576 Replace RT2528.
SGM2576
SGM2576.pdf
SGM2576.pdfFEATURES
? 100mΩ (TYP) High-side N-Channel MOSFET
? Programmable Current Limit Range: 0.4A to 2.5A
1500mA ± 190mA@RILIM = 4.53kΩ
? Input Voltage Range: 2.5V to 5.5V
? Quiescent Current: 23μA (TYP)
? Shutdown Current: 0.1μA (TYP)
? Soft-Start Function
? Temperature Shutdown Protection
? Under-Voltage Lockout Protection for VIN
? No Reversed Leakage Current (Reverse Blocking)
? Automatic Output Discharge in Shutdown Mode
(SGM2576 Only)
? 500kΩ Pull-Down Resistor at EN Pin
? Evaluated to IEC 60950-1, Ed 2, Am1, Annex CC,
Test Program 1 with CB Report
? Available in Green SOT-23-5 Package

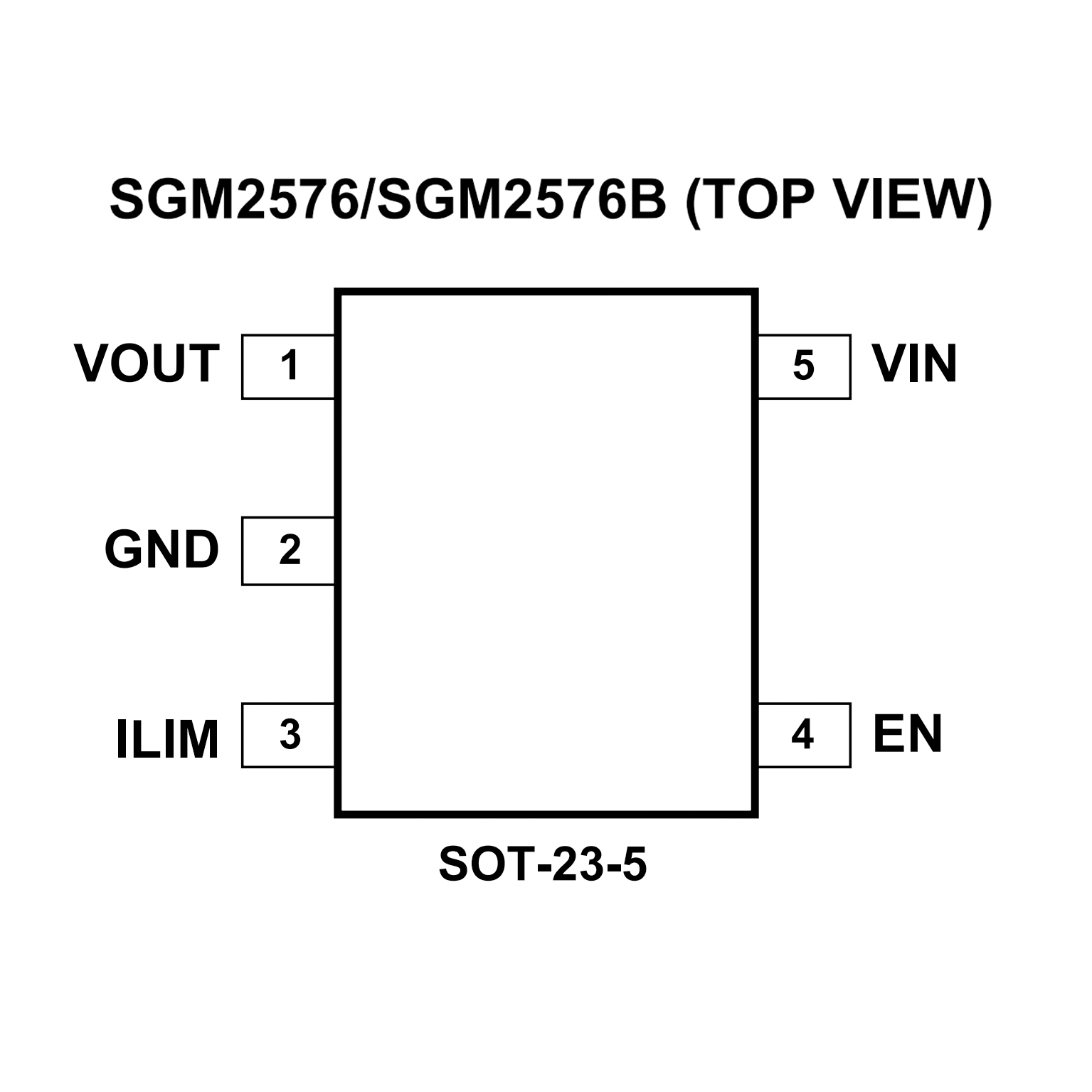

PIN CONFIGUTION
優(yōu)勢替代
FEATURES
? Adjustable Current Limit : 0.5A to 2.5A (typ.)
? ±10% Current Limit Accuracy @ 2A Over Temperature
? 120mΩ P-MOSFET
? Low Supply Current : 120μA
? Input Operating Voltage Range : 2.5V to 5.5V
? Reverse Input-Output Voltage Protection
? Built-in Soft-Start
? AEC-Q100 Grade 3 Qualified
? RoHS Compliant and Halogen Free

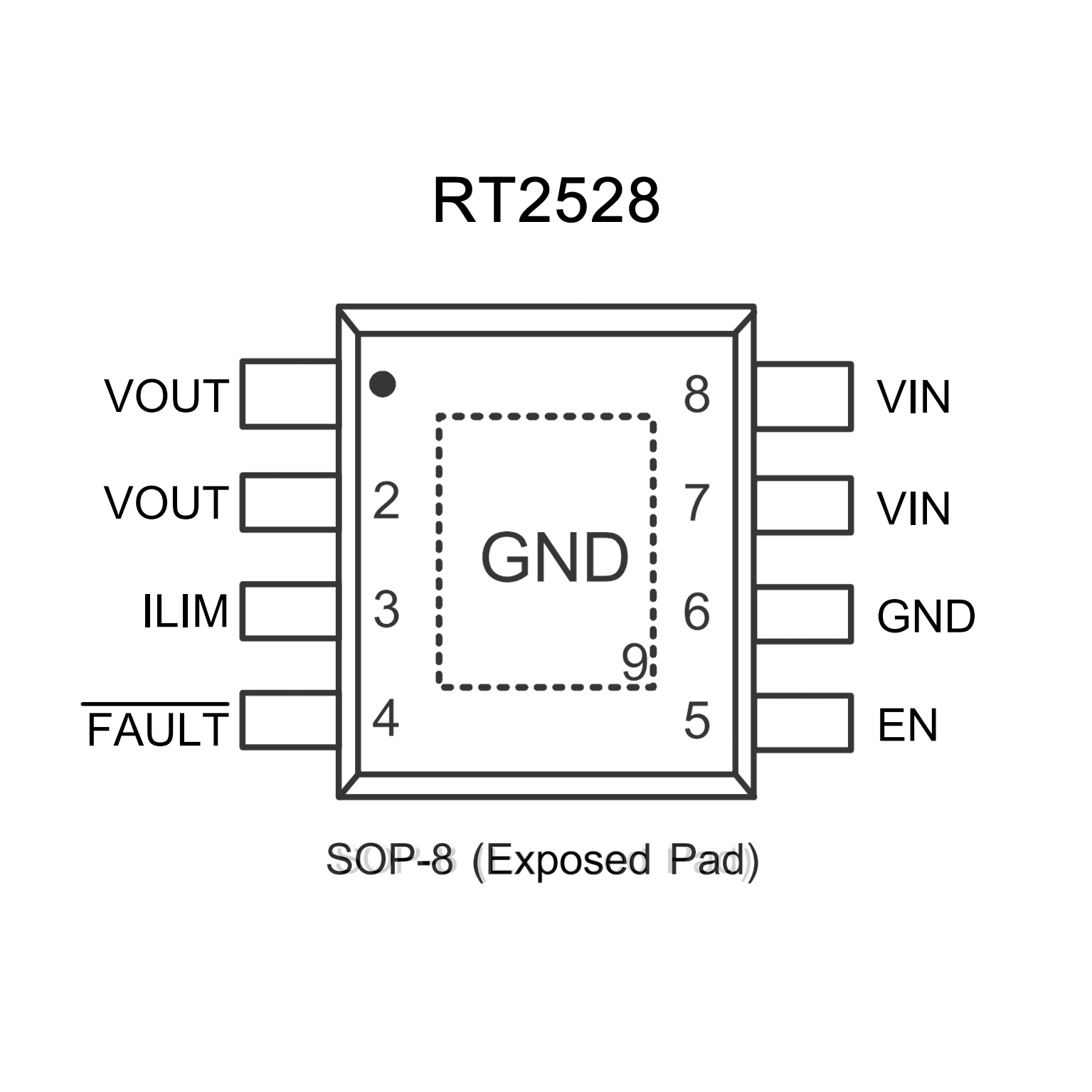

PIN CONFIGUTION
