Current Limited IC, VIN2.4V~5.5V, ILIM ADJ, Active High, SOT23-5, Replace ETA6010
SGM2576
SGM2576.pdf
SGM2576.pdfFEATURES
? 100mΩ (TYP) High-side N-Channel MOSFET
? Programmable Current Limit Range: 0.4A to 2.5A
1500mA ± 190mA@RILIM = 4.53kΩ
? Input Voltage Range: 2.5V to 5.5V
? Quiescent Current: 23μA (TYP)
? Shutdown Current: 0.1μA (TYP)
? Soft-Start Function
? Temperature Shutdown Protection
? Under-Voltage Lockout Protection for VIN
? No Reversed Leakage Current (Reverse Blocking)
? 500kΩ Pull-Down Resistor at EN Pin
? Available in Green SOT-23-5 Package

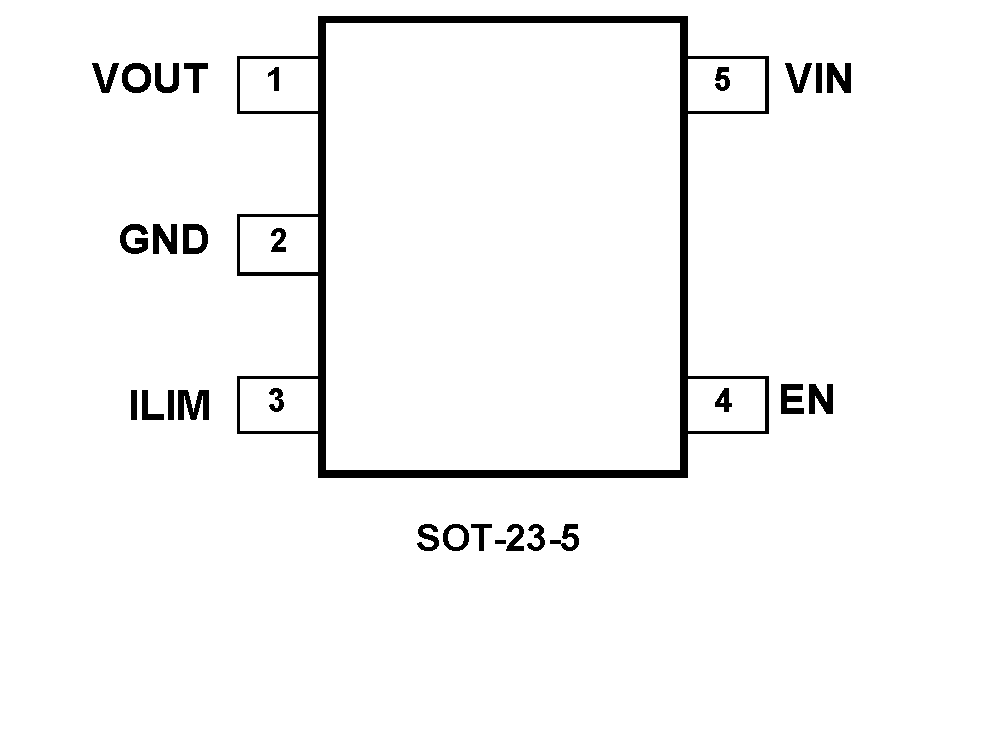

PIN CONFIGUTION
優勢替代
FEATURES
? Up to 1.3A Max Load current
? Accurate Current-limit threshold: +/-5%
? Programmable Current-limit : 75mA to 1.3A
? Fast Over-Current Response
? Reversed Current blocking
? Thermal Shutdown, UVLO protection
? Tiny SOT23-5L Package

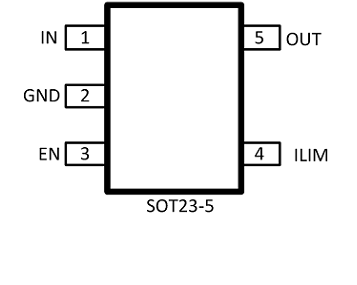

PIN CONFIGUTION
