SGM2575ADYG.pdf? Input Voltage Range: 1V to 5.5V
? Maximum Continuous Current: 2A
? Low On-Resistance
RON = 34mΩ at VIN = 5V
RON = 34mΩ at VIN = 3.3V
? Low Shutdown Current: 90nA (TYP)
? Reverse Current Protection When Disabled
? Low Threshold 1.8V GPIO Control Input
? Bidirectional Power Supply for
Power Zone Application
? Rise Time:
SGM2575A/SGM2575AD: 60μs (TYP)
SGM2575BD: 1600μs (TYP)
? Quick Output Discharge
(SGM2575AD/SGM2575BD Only)

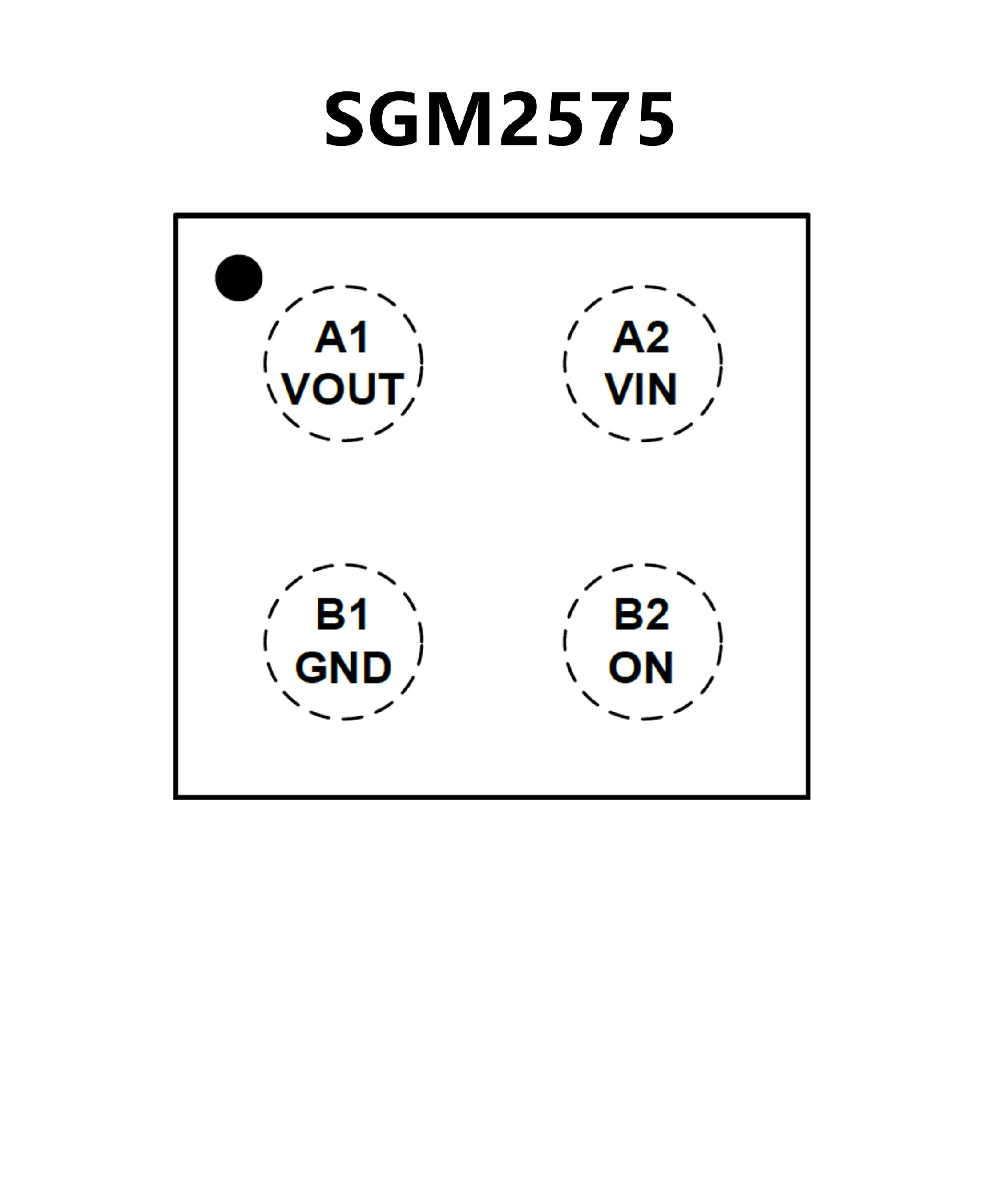

? Available in a Green WLCSP-0.8×0.8-4B Package

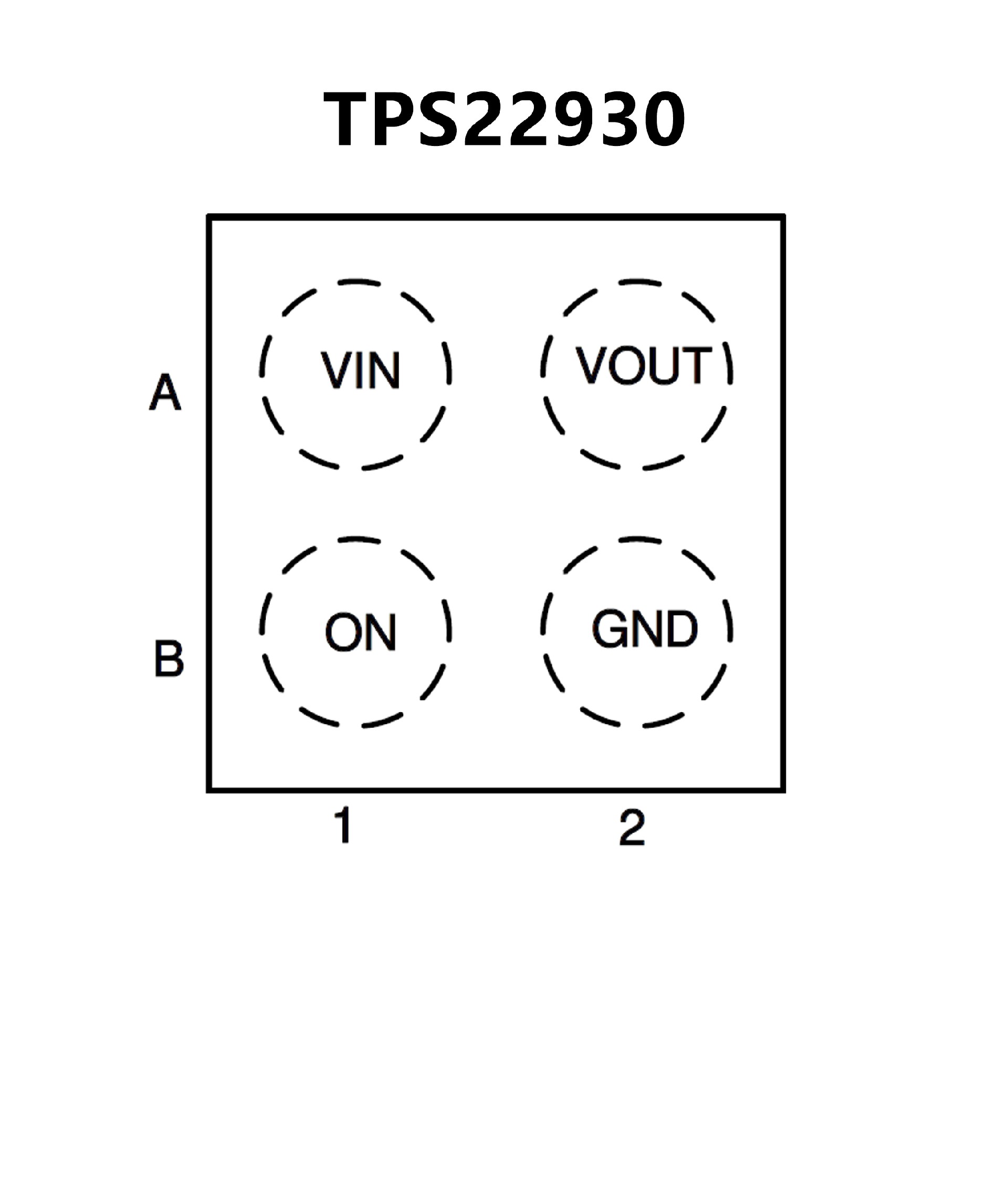

? Integrated single channel load switch
? Ultra small four terminal wafer-chip-scale package
(nominal dimensions shown see addendum for
details)
0.9 mm × 0.9 mm, 0.5 mm pitch, 0.5-mm height
(YZV)
? Input voltage range: 1.4 V to 5.5 V
? Ultra low RON resistance
RON = 35 mΩ at VIN = 5 V
RON = 36 mΩ at VIN = 3.6 V
RON = 49 mΩ at VIN = 1.8 V
? 2-A maximum continuous switch current
? Low quiescent current (< 3 μA)
? Low control input threshold enables use of
1.2-V/1.8-V/2.5-V/3.3-V logic
? Controlled slew rate
? Under voltage lockout
? Reverse current protection when disabled
