SGM2575.pdf? Input Voltage Range: 1V to 5.5V
? Maximum Continuous Current: 2A
? Low On-Resistance
RON = 34mΩ at VIN = 5V
RON = 34mΩ at VIN = 3.3V
? Low Shutdown Current: 90nA (TYP)
? Reverse Current Protection When Disabled
? Low Threshold 1.8V GPIO Control Input
? Bidirectional Power Supply for Power Zone
Application
? Rise Time:
SGM2575A/SGM2575AD: 60μs (TYP)
SGM2575BD: 1600μs (TYP)
? Quick Output Discharge
(SGM2575AD/SGM2575BD Only)

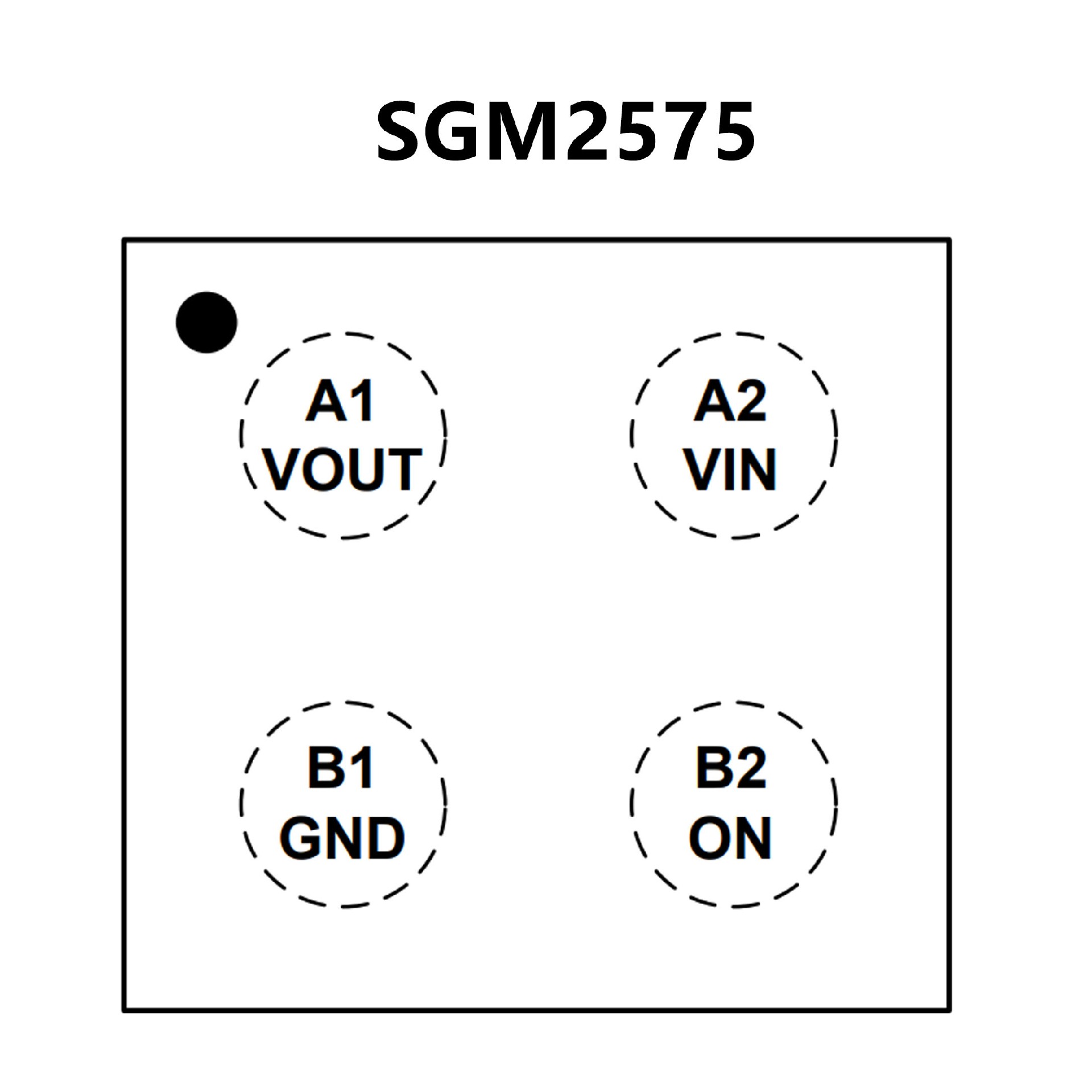

? Available in a Green WLCSP-0.8×0.8-4B Package
? 1.2 V to 5.5 V Input Voltage Operating Range
? Typical RON:
45 mΩ at VIN = 5.5 V
55 mΩ at VIN = 3.3 V
90 mΩ at VIN = 1.8 V
185 mΩ at VIN = 1.2 V
? Slew Rate Control with tR:
100μs
? Output Discharge Function on FPF1204
? Low <1.5μA Quiescent Current
? ESD Protected: Above 7 kV HBM, 2 kV CDM
GPIO / CMOS?Compatible Enable Circuitry

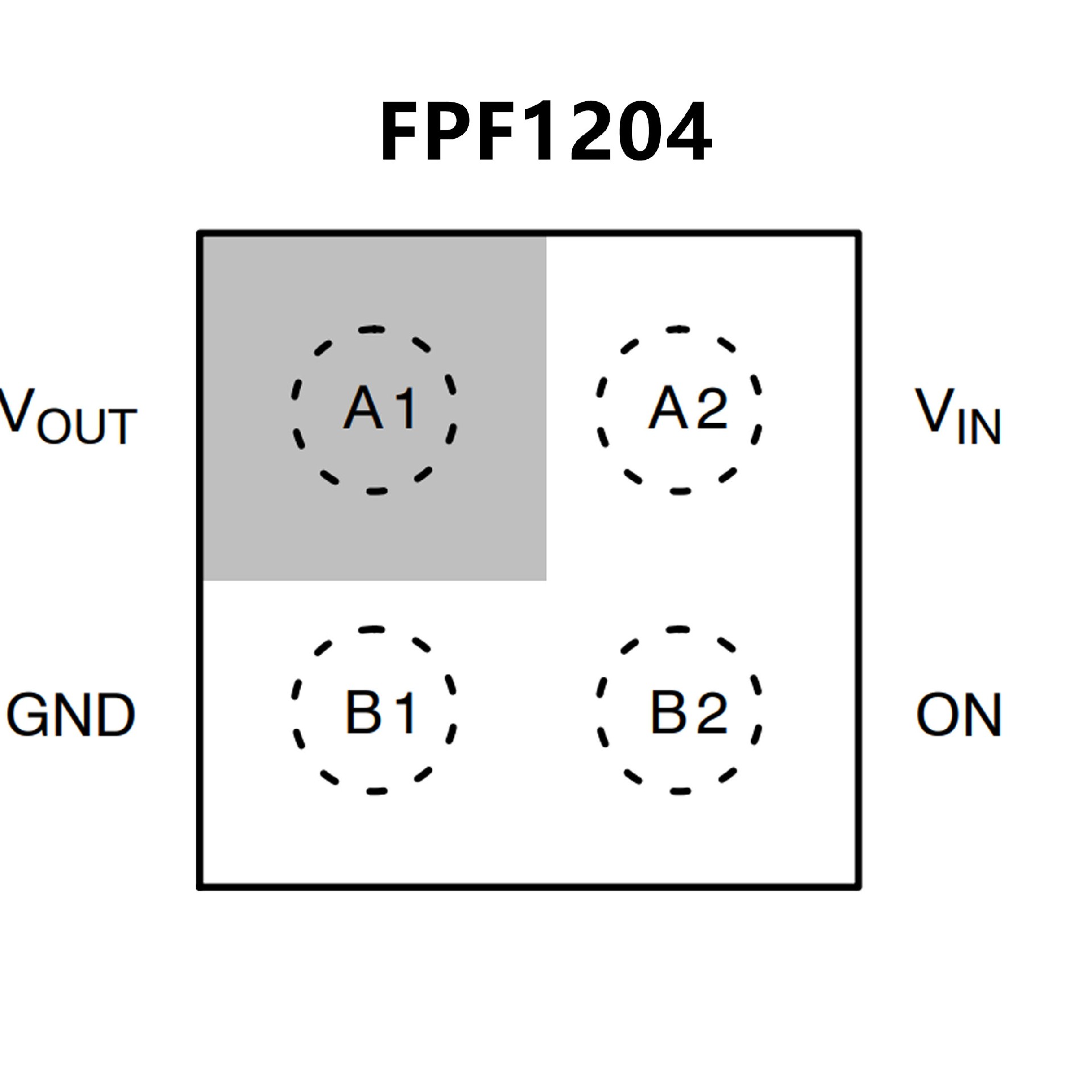

? 4?Bump, WLCSP 0.76 mm x 0.76 mm, 0.4 mm Pitch
? These are Pb?Free Devices
