Dual-Channel Power Distribution Switch,SGM2558AYS8G Replace SP2526A.
SGM2558AYS8G
SGM2558AYS8G.pdf
SGM2558AYS8G.pdfFEATURES
? 90mΩ (TYP) High-side MOSFET per Channel
? 600mA Minimum Continuous Current per Channel
? 1.1A Current Limit
? Input Voltage Range: 2.7V to 5.5V
? Low Quiescent Current: 28μA (Dual-Channel)
? Soft-Start Function
? Short-Circuit Protection with Thermal Shutdown
? Thermally Isolated Channels
? Fault Status Flag with 4ms Filter Eliminates False
Assertions
? Under-Voltage Lockout Protection for VIN
? No Reversed Leakage Current
? 1.8V Logic-Compatible Inputs
? Available in the Green SOIC-8 and TDFN-3×3-8L
Packages

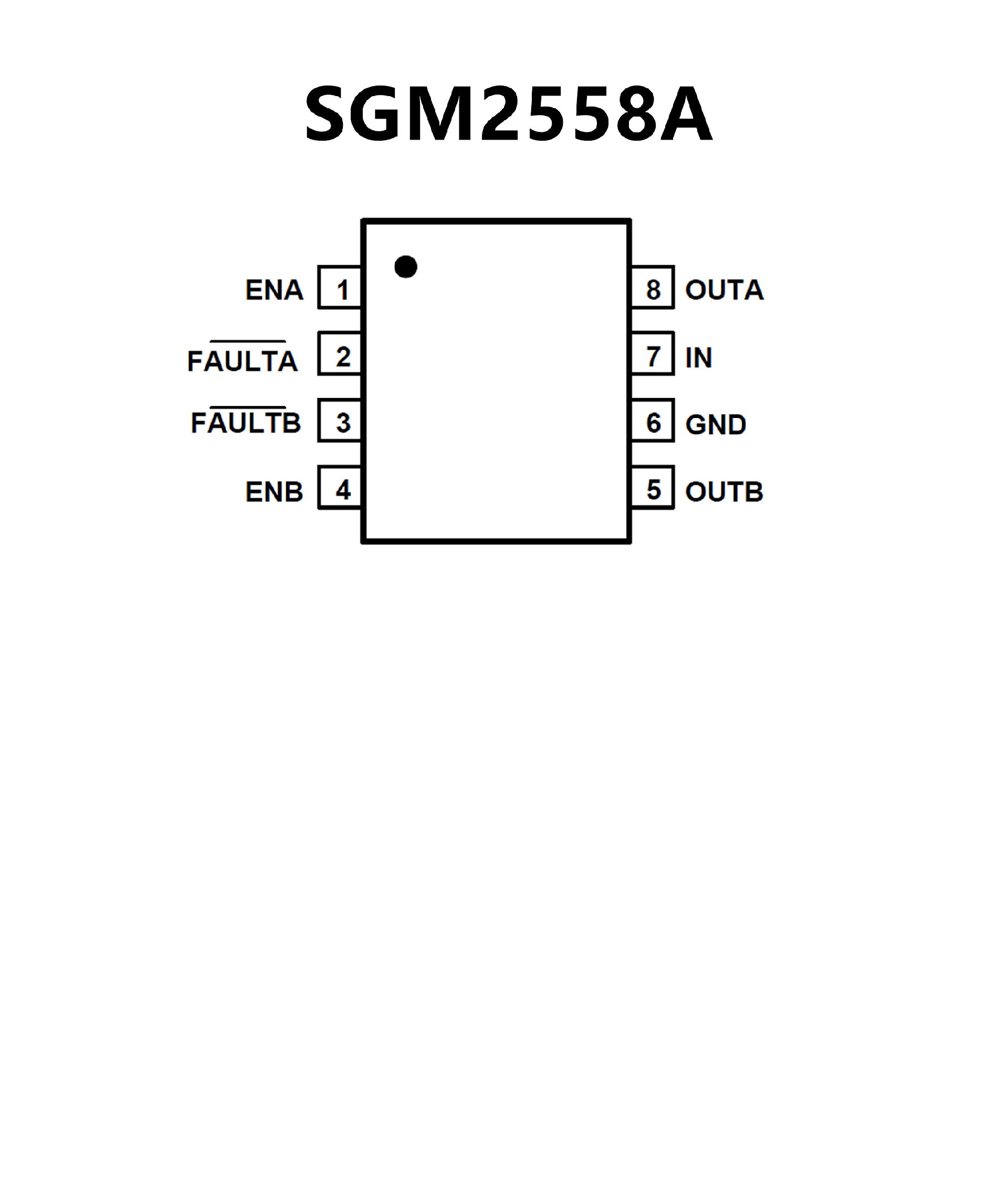

PIN CONFIGUTION
優勢替代
FEATURES
?Self Powered USB 2.0 and 3.0 Hubs
?USB Compliant VBUS Power Distribution
?Audio-Video Equipments
?Generic Power Switching

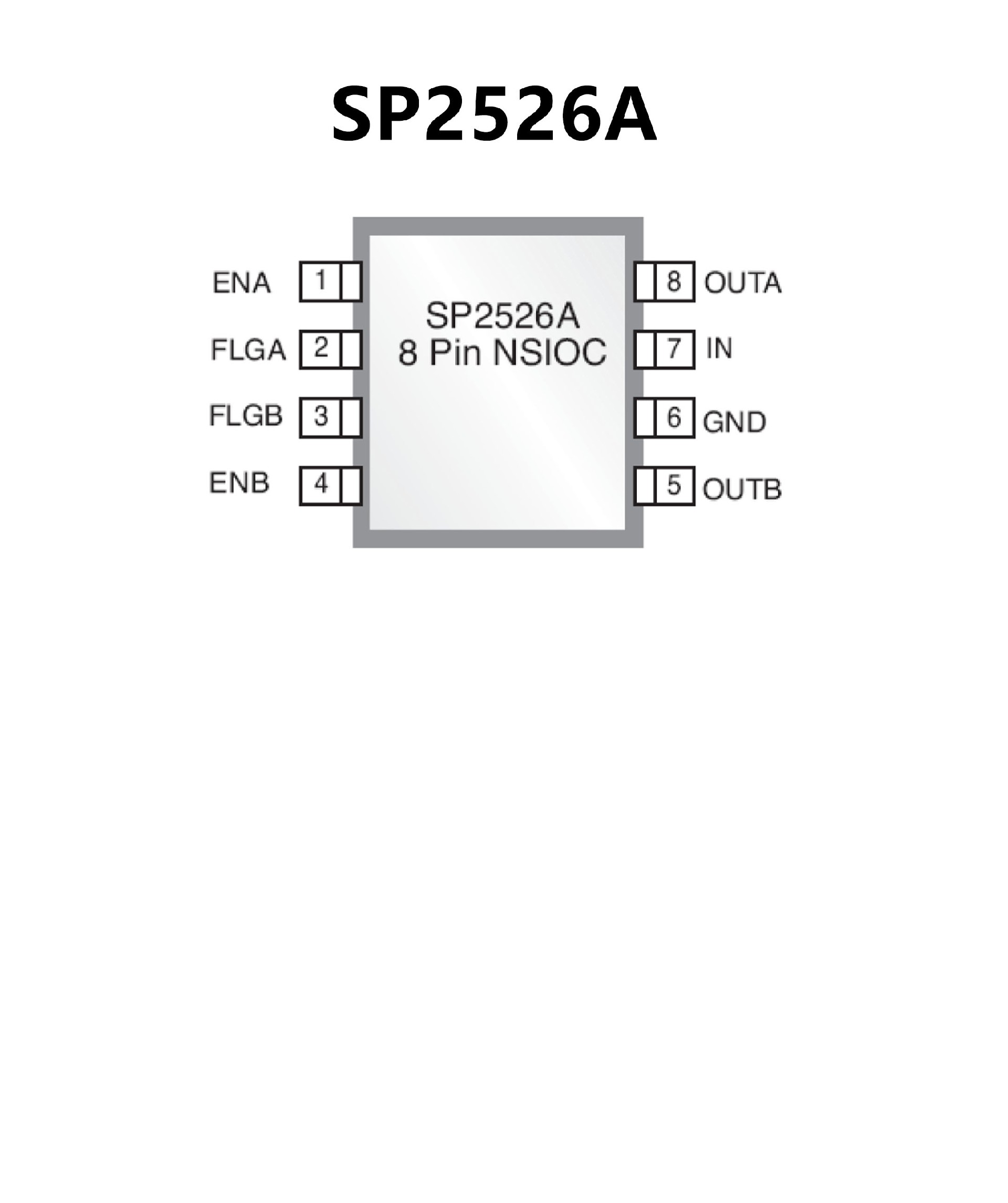

PIN CONFIGUTION
