SGM2553.pdf? Up to 1.5A Maximum Load Current
? Meets USB Current Limiting Requirements
? Adjustable Current Limit: 100mA to 1.7A
? Fast Over-Current Response: 2μs
? 90mΩ High-side MOSFET
? No Reverse Leakage Current of High-side MOSFET
? Reverse Input-Output Voltage Protection
? Operating Range: 2.5V to 5.5V
? Built-In Soft-Start Function
? Quick Auto-Discharge in Disable Status (SGM2553D)
? Evaluated to IEC 60950-1, Ed 2, Am1, Annex CC,
Test Program 1 with CB Report

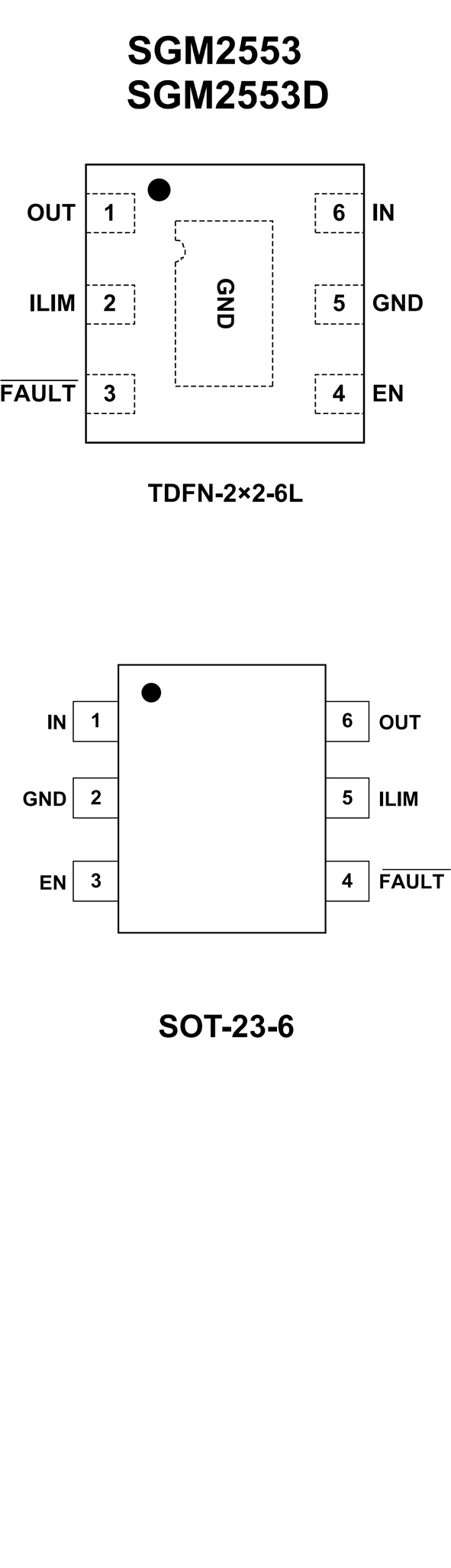

? Available in the Green TDFN-2×2-6L and
SOT-23-6 Packages
? Programmable Current Limit : 0.2A to 1.5A
? Low Quiescent Current : 10μA
? Low Shutdown Current : 0.1μA
? 145mΩ Switch On Resistance
? Operating Voltage Range : 2.4V to 5.5V
? Under Voltage Lockout
? Thermal Shutdown Protection
? RoHS Compliant and Halogen Free
