SGM2541.pdf? Bidirectional Switch for USBIN and OUT to
Allow On-The-Go (OTG) Mode
? Input Voltage Range:
3V to 20V at USBIN and 3V to 16V at OUT
? Programmable OVP Threshold Voltages
? 28V Tolerance on USBIN Pin
? 130V Surge Protection
? 5A Continuous Current from USBIN to OUT
? 5A Continuous Current from OUT to USBIN
in OTG Mode
? Low On-Resistance: 29mΩ (TYP)
? 1.4V Control Logic
? Soft-Start to Reduce Input Peak Current

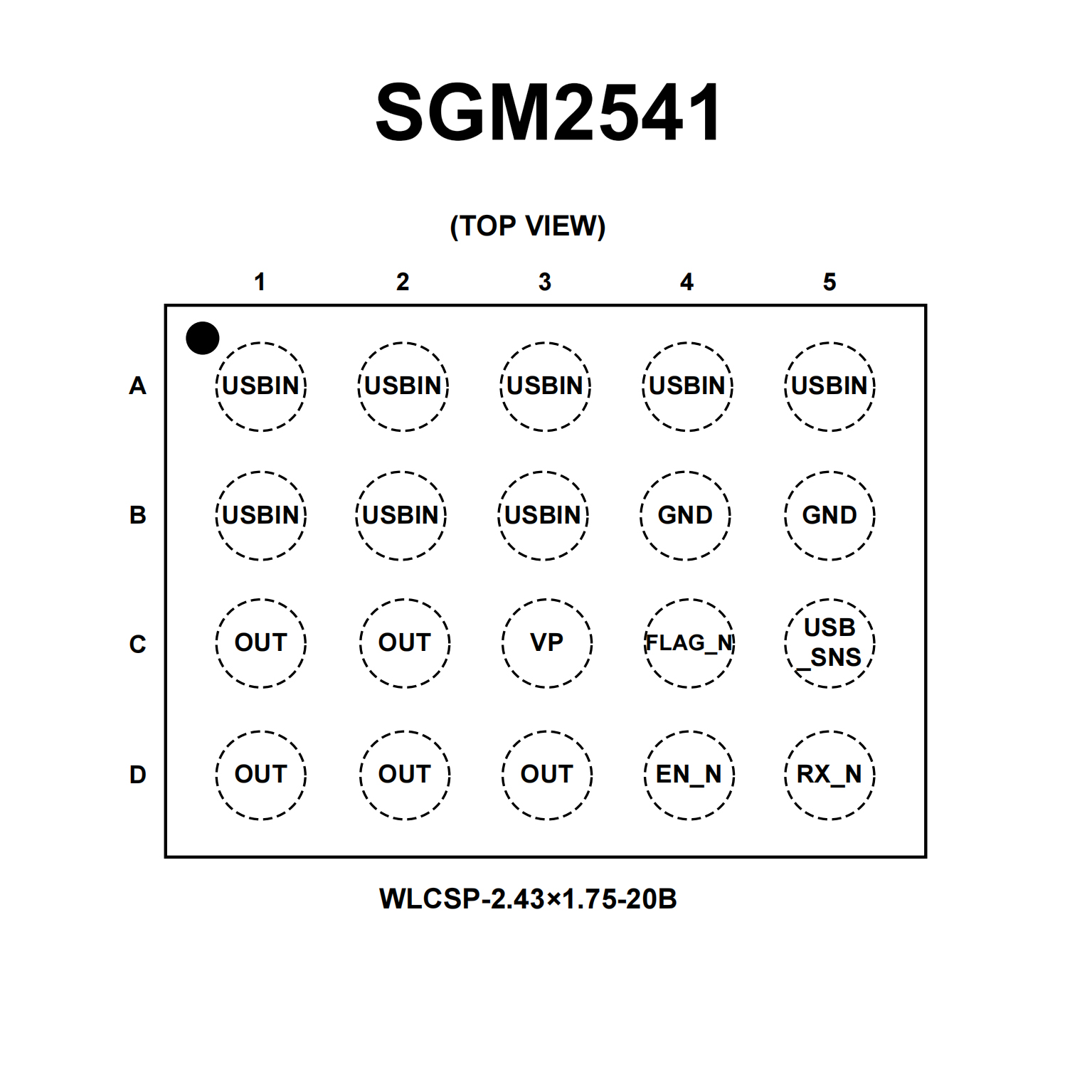

? Available in Green WLCSP-2.43×1.75-20B Package
? -40℃ to +85℃ Operating Temperature Range
? Wide Input voltage range: 3.0V to +28V
? Integrated MOSFET switch 20mΩ typical
? 5A Continuous Current
? VP Select pin
Over-Voltage threshold trip 13V/17V
VSNS clamp 16V/20V max
? Fast Over-Voltage response time 100ns
? Low Quiescent Current: 160μA (typ.)
? Integrated Protection
Thermal Shutdown
Under voltage protection (UVLO)
Soft-Start
OUT to IN Reverse Blocking
? EN, VSNS, WRX and FLAG pins
? Integrated Surge Protection up to +/-100V
? Pb-free WLCSP 20-Bump, 0.4mm pitch
? -40°C to +85°C Temperature Range
