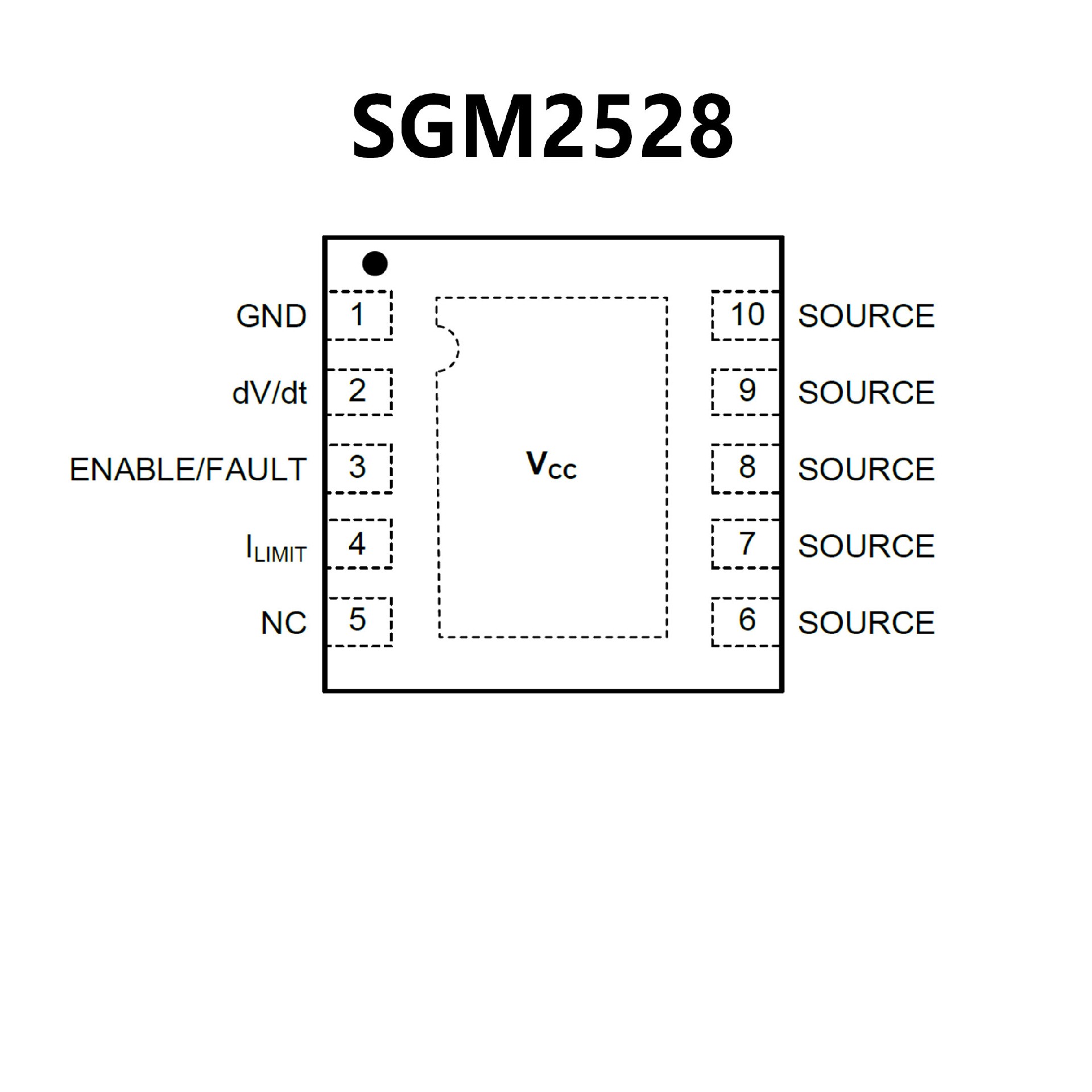

SGM2528.pdf? Wide Input Voltage Range from 9V to
18V withSurge up to 30V
? Extremely Low RDS(ON) for the
IntegratedProtection Switch: 26mΩ (TYP)
? 3-State ENABLE/FAULT Pin,
Bidirectional Interface
? Programmable Soft-Start Time
? Programmable Current Limit up to 5A
? Thermal Shutdown Options:
SGM2528A: Thermal Latch-Off with VCLAMP
SGM2528B: Thermal Auto-Retry with VCLAMP
SGM2528C: Thermal Latch-Off without VCLAMP
? Fault Output for Thermal Shutdown
? Accurate Under-Voltage Lockout
? Accurate Over-Voltage Clamp
(SGM2528A andSGM2528B)
? Available in a Green TDFN-3×3-10L Package

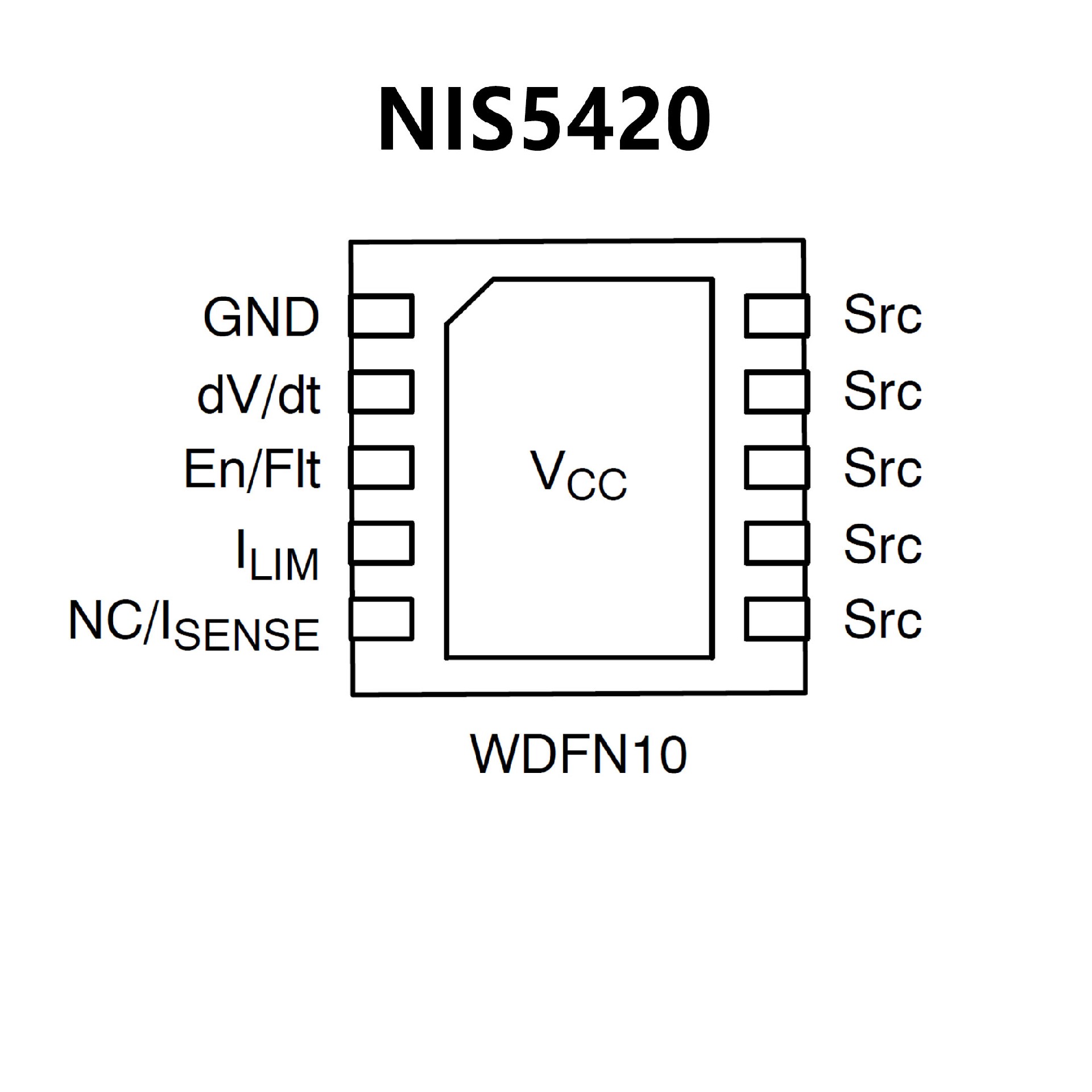

? Integrated Power Device
? Power Device Thermally Protected
? No External Current Shunt Required
? 8 V to 18 V Input Range
? 39 mΩ Typical
? Internal Charge Pump
? Internal Undervoltage Lockout Circuit
? Internal Overvoltage Clamp
? ESD Ratings: Human Body Model (HBM); 2000 V
? These Devices are Pb?Free, Halogen Free/BFR
Free and are RoHSCompliant
