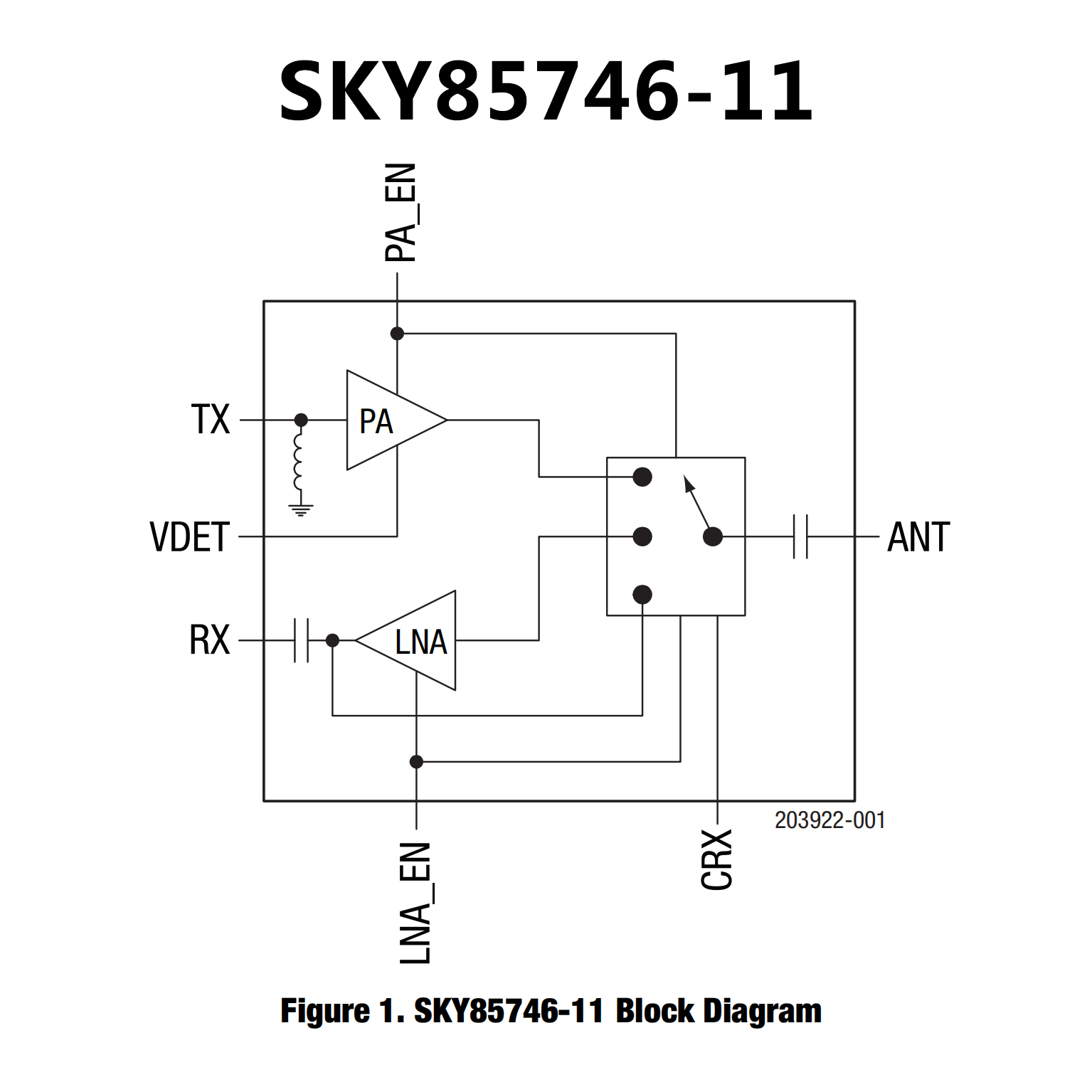

SKY85746-11: 5 GHz 802.11ax Ultra-Linear WLAN Front-End Module with Integrated Log Detector,Replace SKY85746.
SGM23746A.pdf優勢替代
FEATURES
? Integrated 802.11ax 1024 QAM, 5 GHz PA, LNA
with bypass,and T/R switch
? Fully-matched input and output
? Integrated logarithmic power detector
? Transmit gain: 32 dB
? Receive gain: 13 dB
? Output power:
? MCS11, +18 dBm, -43 dB DEVM
? MCS11, +20 dBm, -40 dB DEVM
? MCS9, +23 dBm, -35 dB DEVM
? MCS7, +24 dBm, -30 dB DEVM
? Small QFN (16-pin, 2.5 x 2.5 mm) package
(MSL1, 260 ?C per JEDEC J-STD-020)
PIN CONFIGUTION
