1MHz, General Purpose CMOS Operational Amplifier,SGM2358YS Replace TP358A.
SGM2358YS
SGM2358YS.pdf
SGM2358YS.pdfFEATURES
? Low Cost
? Rail-to-Rail Output
1.7mV Typical VOS
? Unity Gain Stable
? Gain Bandwidth Product: 1MHz
? Very Low Input Bias Currents: 10pA
? Input Common-Mode Voltage Range Includes
Ground
? Operates from 3 V to 5.5 V
? Small Packaging: SO-8

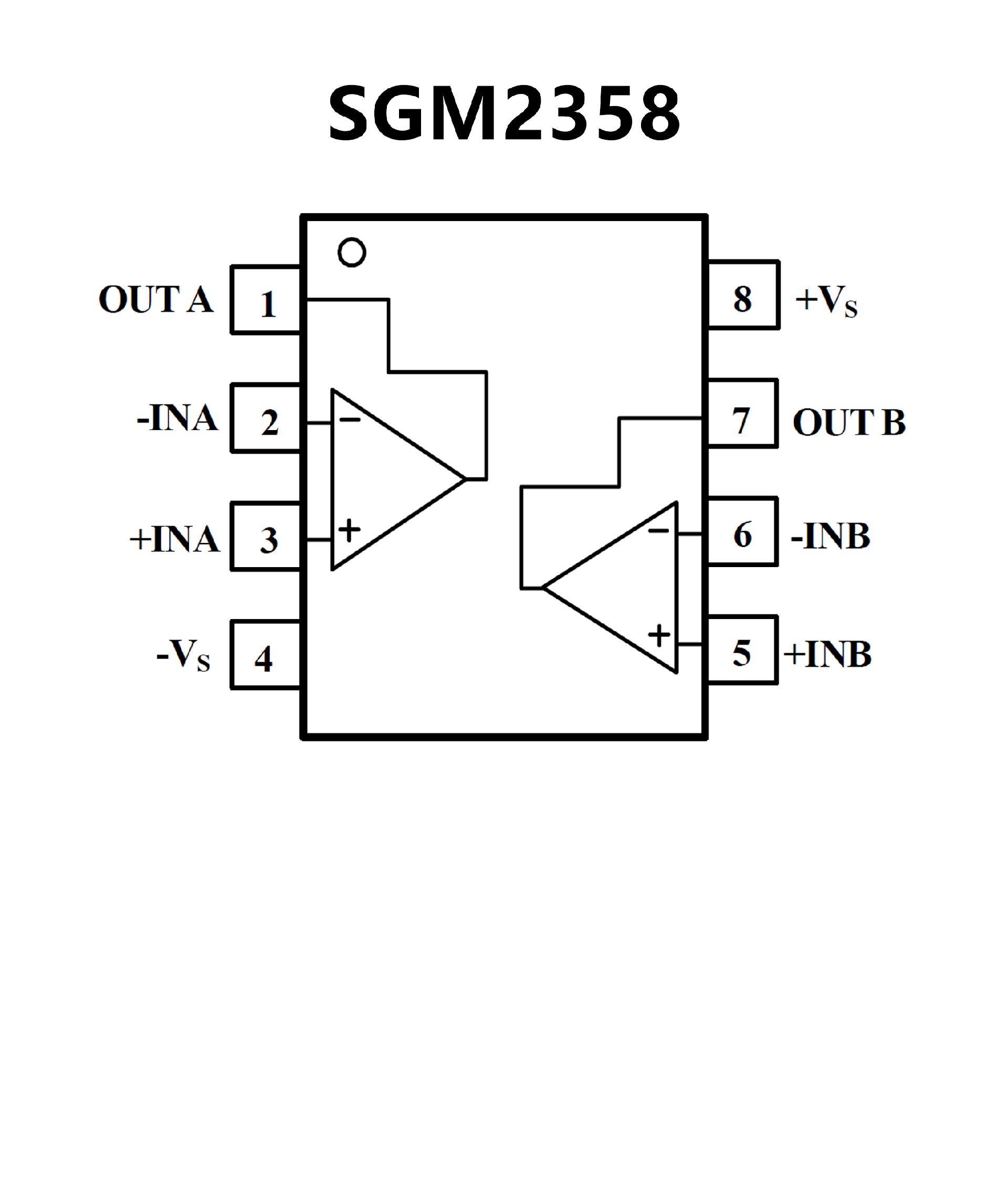

PIN CONFIGUTION
優(yōu)勢替代
FEATURES
? General Purpose, Low Cost
? Gain Bandwidth Product: 1MHz
? Low Quiescent Current: 45μA/Amplifier
? Offset Voltage: 5.0mV Maximum
? Offset Voltage Temperature Drift: 2uV/°C
? Input Bias Current: 10pA
? CMRR/PSRR: 90dB
? Unity Gain Stable
? Rail-to-Rail Input and Output
? No Phase Reversal for Overdriven Inputs
? Supply Voltage Range:
? TP321-DF0R: 2.1V to 5.5V
? Other Part: 2.1V to 6.0V
? Operation Range: –40°C to 125°C

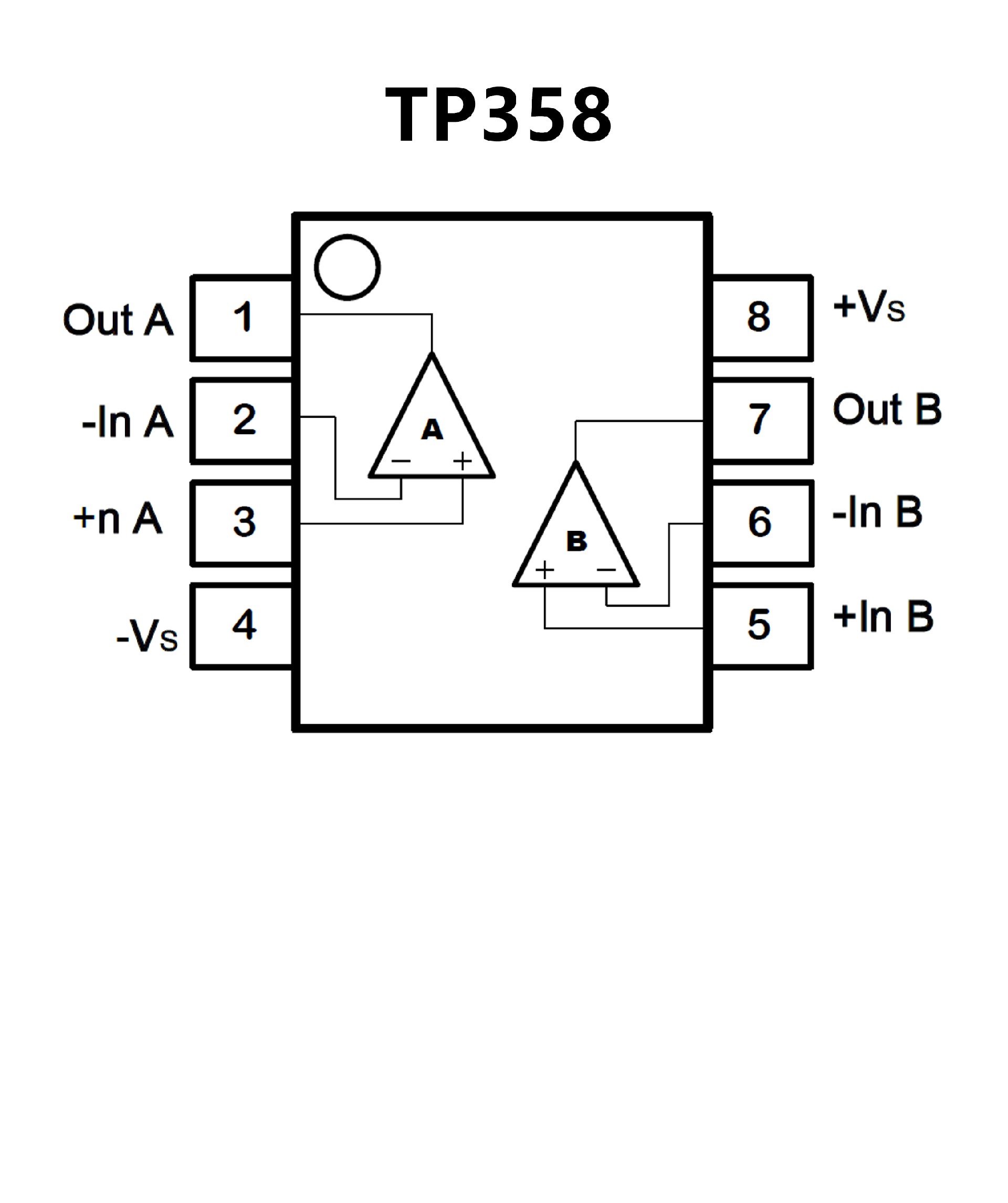

PIN CONFIGUTION
