1MHz, General Purpose CMOS Operational Amplifier, SGM2358 Replace TLV6002.
SGM2358
SGM2358.pdf
SGM2358.pdfFEATURES
? Low Cost
? Rail-to-Rail Output
1.7mV Typical VOS
? Unity Gain Stable
? Gain Bandwidth Product: 1MHz
? Very Low Input Bias Currents: 10pA
? Input Common-Mode Voltage Range Includes
Ground
? Operates from 3 V to 5.5 V
? Small Packaging: SO-8

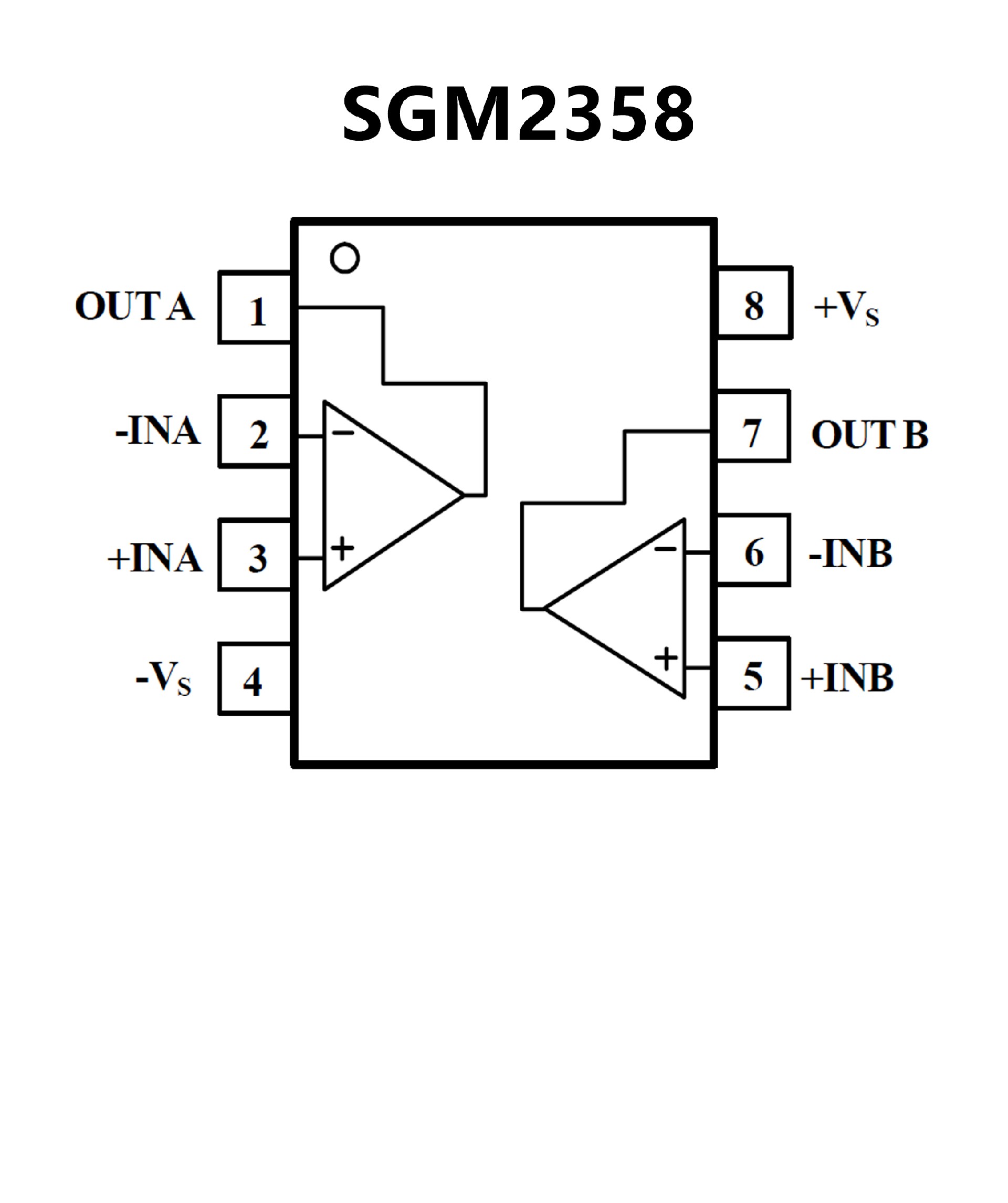

PIN CONFIGUTION
優(yōu)勢替代
FEATURES
? Precision Amplifiers for
Cost-Sensitive Systems
? Low Quiescent Current: 75 μA/ch
? Supply Range: 1.8 V to 5.5 V
? Input Voltage Noise Density:
28 nV/√Hz at 1 kHz
? Rail-to-Rail Input/Output
? Gain Bandwidth: 1 MHz
? Low Input Bias Current: 1.0 pA
? Low Offset Voltage: 0.75 mV
? Unity-Gain Stable
? Internal RF/EMI Filter
? Extended Temperature Range:
–40°C to +125°C

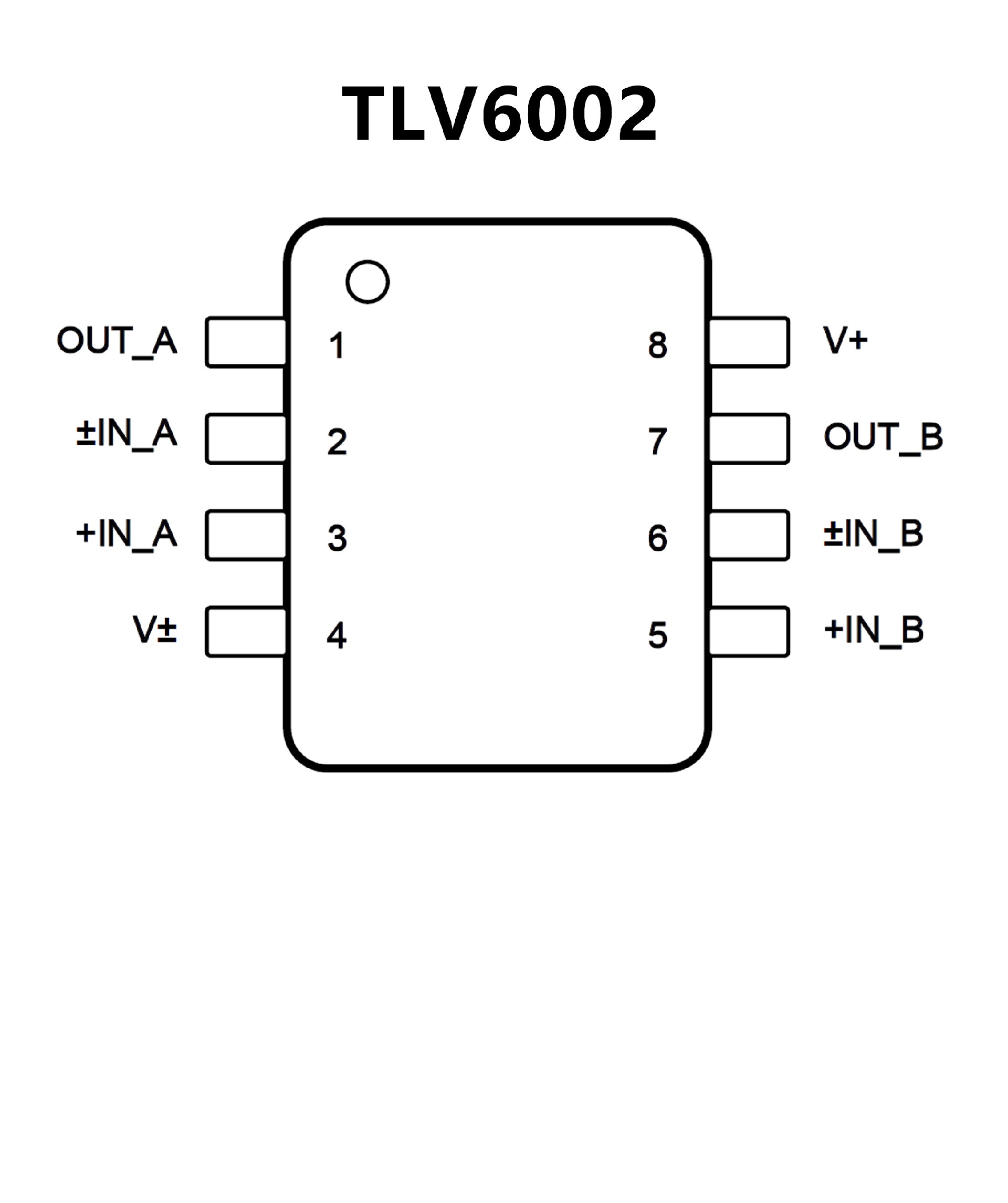

PIN CONFIGUTION
