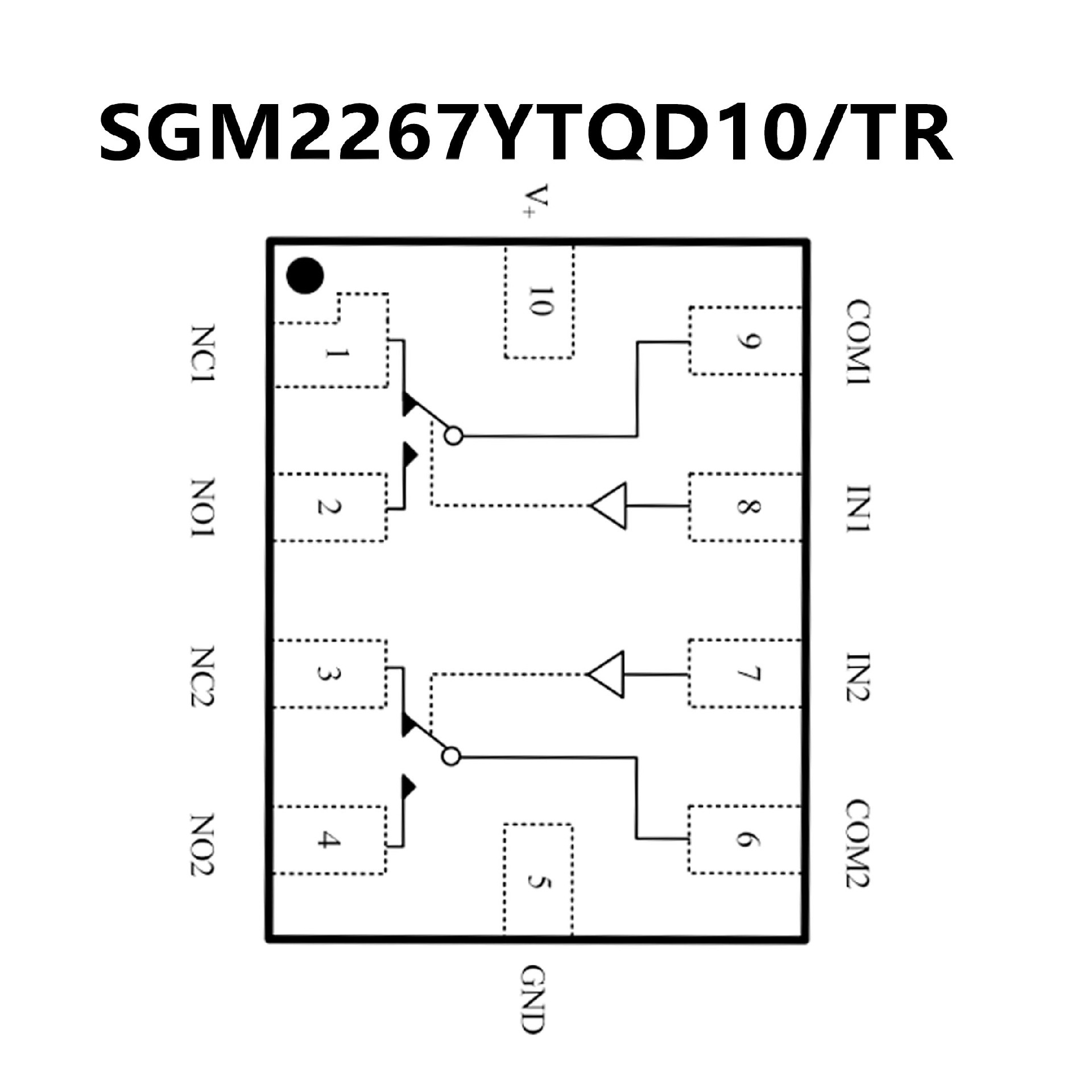

SGM2267.pdf? Voltage Operation: +1.8V to +4.2V
? Ultra Low On-Resistance: 0.4Ω (TYP) at +4.2V
? On-Resistance Matching: 0.04Ω (TYP)
? On-Resistance Flatness: 0.08Ω (TYP)
? -3dB Bandwidth: 40MHz
? High Off-Isolation: -78dB at 100kHz
? Low Crosstalk: -103dB at 100kHz
? Rail-to-Rail Input and Output Operation
? TTL/CMOS Compatible
? Break-Before-Make Switching
? Extended Industrial Temperature Range:-40°C to +85°C
? Lead (Pb) Free TQFN-10 (2.1mm×1.6mm) Package
? Typical 0.35Ω On Resistance (RON) for +2.7V Supply

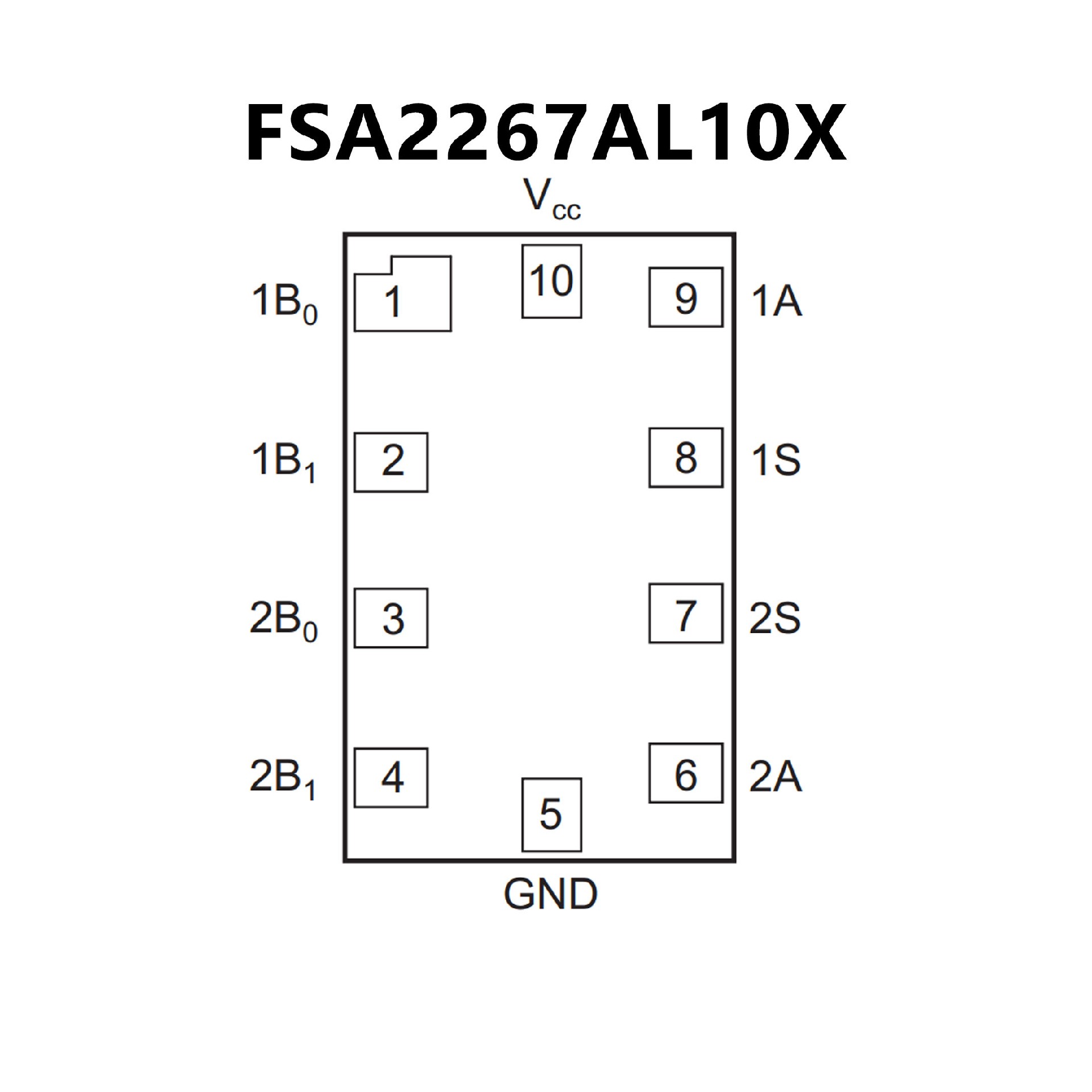

? FSA2267A Features <10μA ICCT Current
when S Input is Lower than VCC
? RON Fatness for +2.7V Supply: 0.25Ω Maximum
? 1.6mm x 2.1mm 10-Lead MicroPak? Package
? Broad VCC Operating Range
? Low THD (0.02% Typical for 32ΩLoad)
? High Current Handling Capability
(350mA Continuous
Current <3.3V Supply)
