40V, 300mA, Low Quiescent Current and Low Dropout Voltage Linear Regulator, SGM2249Q Replace LN20042.
SGM2249Q
SGM2249Q.pdf
SGM2249Q.pdfFEATURES
? AEC-Q100 Qualified for Automotive Applications
Device Temperature Grade 1
TA = -40℃ to +125℃
? Operating Input Voltage Range: 2.5V to 40V
? Enable Pin Accept Voltages Higher than the
Supply Voltage and up to 40V
? Adjustable Output from 0.6V to 24V
? 300mA Output Current
? Output Voltage Accuracy: ±1% at +25℃
? Low Quiescent Current: 3.2μA (TYP)
? Low Dropout Voltage:
740mV (TYP) at 300mA, VOUT = 24V
? Current Limiting and Thermal Protection
? With Output Automatic Discharge
? Stable with Small Case Size Ceramic Capacitors
? -40℃ to +125℃ Operating Temperature Range
? Available in a Green MSOP-8 (Exposed Pad)
Package

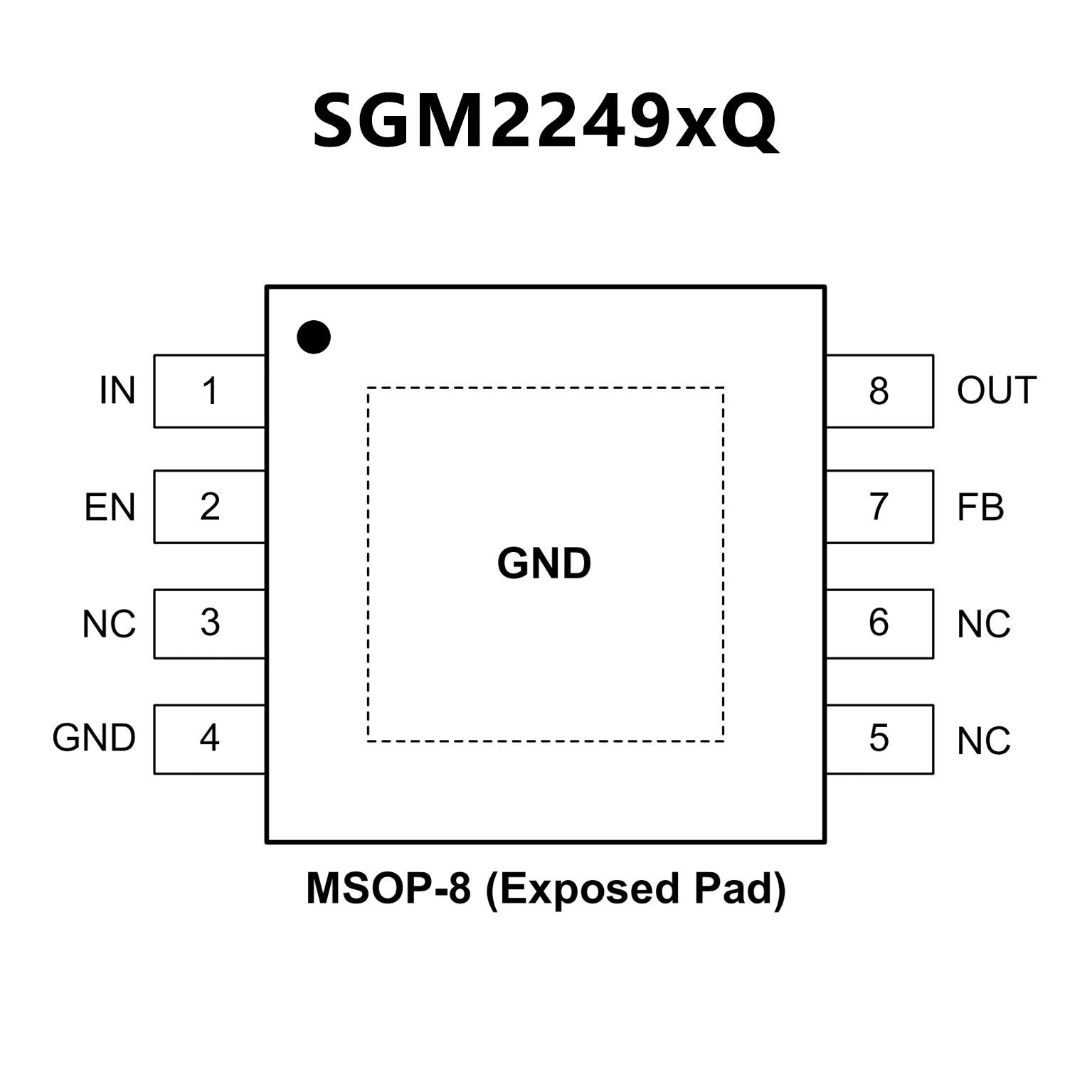

PIN CONFIGUTION
