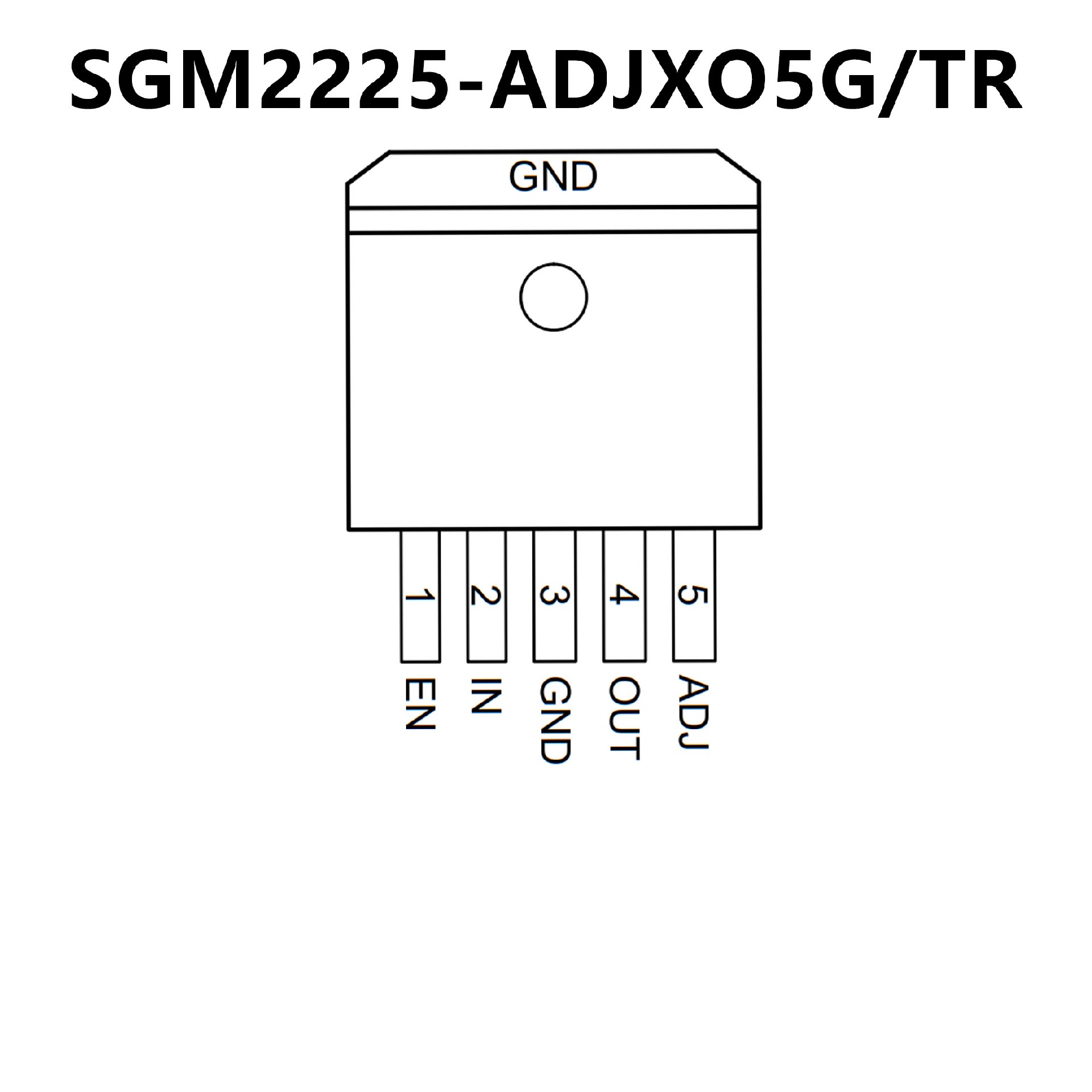

SGM2225-ADJXO5G.pdf? Wide Operating Input Voltage Range: 3.6V to 36V
? Fixed Outputs of 1.8V, 2.5V, 3.3V, 5.0V and 12V
? Adjustable Output from 1.8V to 15V
? Output Voltage Accuracy: ±1.5% at +25℃
? Low Dropout Voltage: 450mV (TYP) at 800mA
? Current Limiting and Thermal Protection
? Excellent Load and Line Transient Responses
? With Output Automatic Discharge
? No-Load Stability
? -40℃ to +125℃ Operating Temperature Range
? Available in Green SOT-223-3, SOT-89-3, SOIC-8,
TDFN-3×3-8L and TO-263-5B Packages

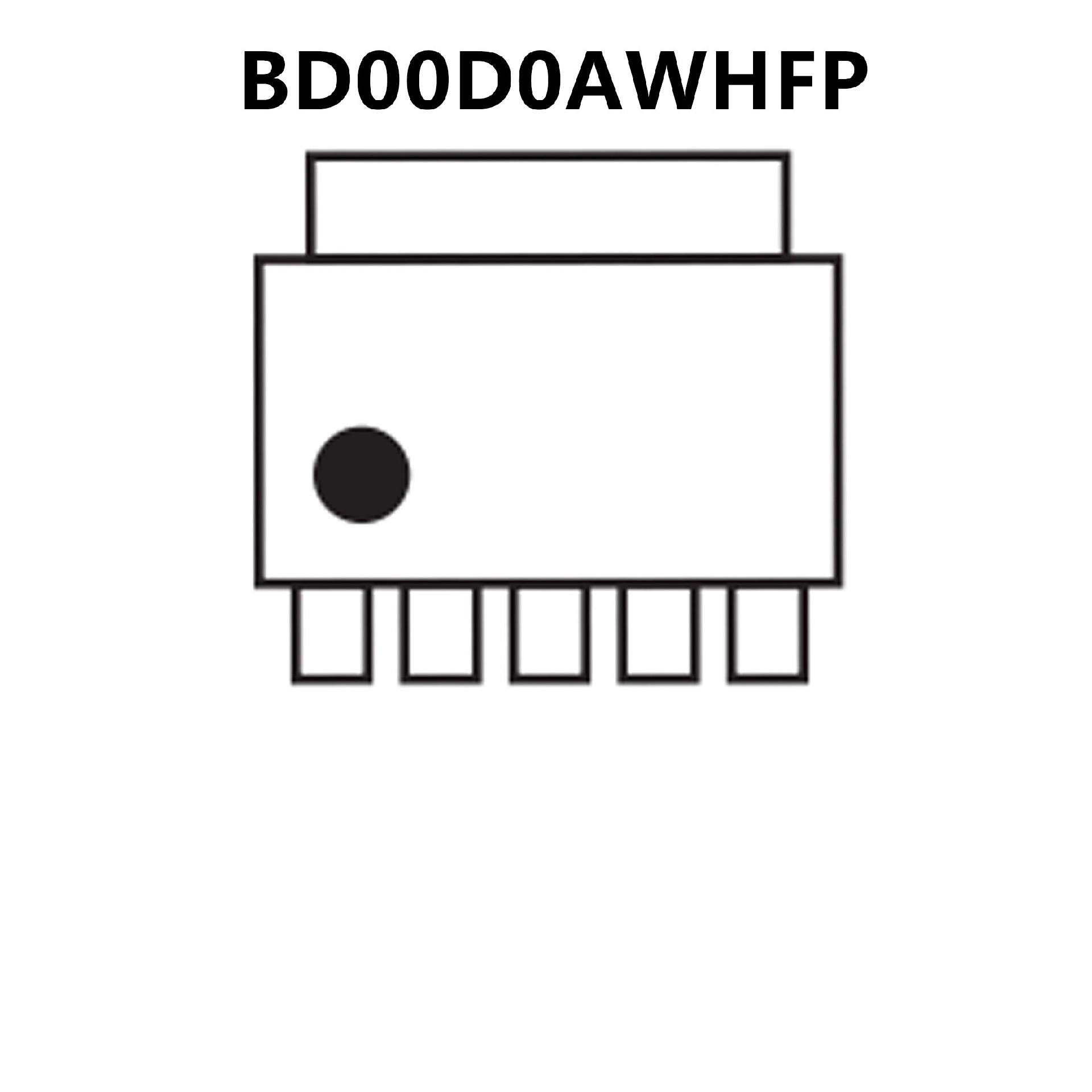

? Output Current : 2A
? High Output Voltage Precision : ±1%
? Low saturation with PDMOS output
? Built-in over-current protection circuit that
prevents the destruction of the IC due
to output short circuits
? Built-in thermal shutdown circuit
for protecting the IC from thermal
damage due to overloading
? Low ESR Capacitor
? HRP5 packaging
