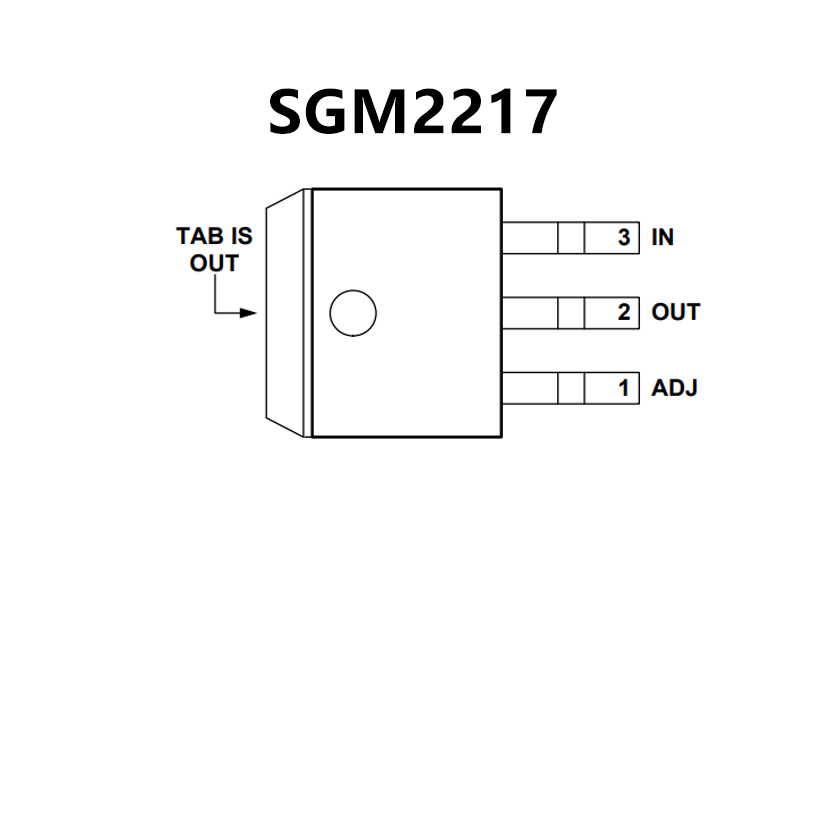

SGM2217-ADJ.pdf? Wide Input Voltage Range: 2.8V to 30V
? Adjustable Output Voltage Range: 1.25V to 26V
? Fixed Output Voltages:
1.8V, 2.5V, 2.8V, 3.0V, 3.3V, 5.0V and 12V
? Maximum Output Current: 1.5A
? Low Dropout Voltage: 1.3V (TYP) at 1.5A
? Line Regulation: 0.04% (TYP)
? Load Regulation: 0.04% (TYP)
? Current Limiting and Thermal Protection
? Output Voltage is Stable with Ceramic Capacitor
? -40℃ to +125℃ Operating Temperature Range
? Available in Green TO-263-3A and TDFN-4×4-8L
Packages

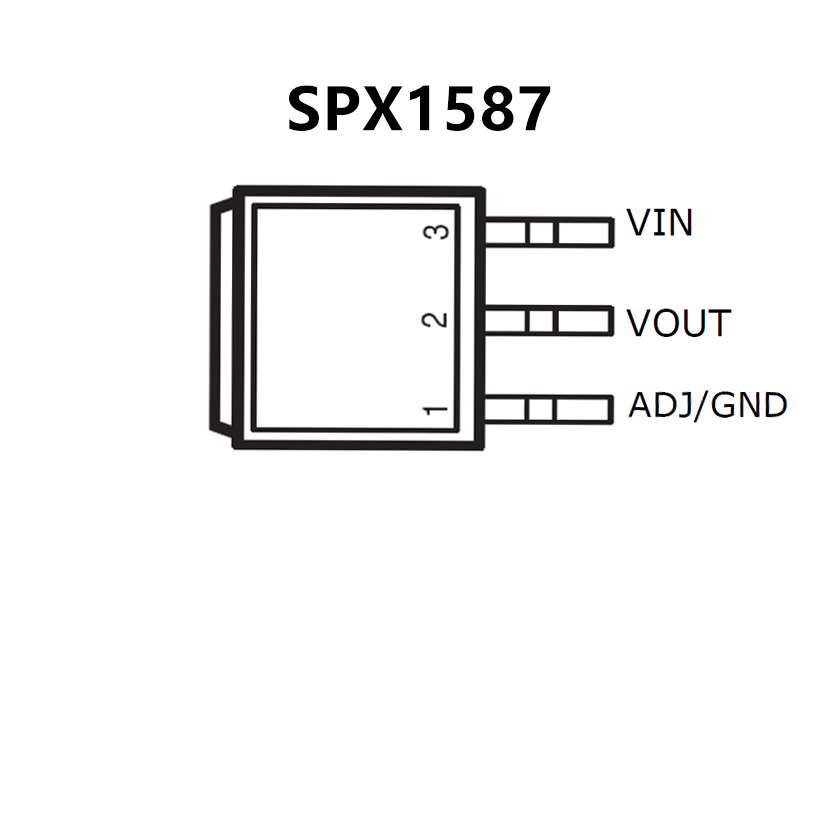

? Guaranteed 3A Output Current
? Three Terminal Adjustable or Fixed
1.5V, 2.5V, 3.3V and 5.0V
? Low Quiescent Current
? Low Dropout Voltage: 1.1V at 3A
? Line Regulation: 0.1%
? Load Regulation: 0.1%
? Stable with 10uF Ceramic Capacitor
? Over Current and Thermal Protection
? Similar to Industry Standard
LT1085/LT1585
? RoHS Compliant Lead Free 3-Pin
TO-220, TO-252 and TO-263 Packages
