800mA, Low Noise, Low Quiescent Current,High PSRR, Low Dropout Linear Regulator, SGM2212 P2P TLV1117-18.
SGM2212
SGM2212.pdf
SGM2212.pdfFEATURES
? Input Voltage Range: 2.7V to 20V
? Output Current: 800mA
? Fixed Output Voltages:1.8V, 2.5V, 2.8V, 3.3V, 5V
? Adjustable Output Voltage Range: 1.25V to 15V
? Output Voltage Accuracy: ±1% at +25℃
? Line Regulation: 0.012% (MAX)
? Load Regulation: 0.4% (MAX)
? Stable with Small Case Size Ceramic Capacitors
? Output Current Limit
? Thermal Shutdown Protection
? -40℃ to +125℃ Operating Temperature Range
? Available in Green TO-252-2, TO-263-3,
SOT-223-3 and TDFN-3×3-8L Packages

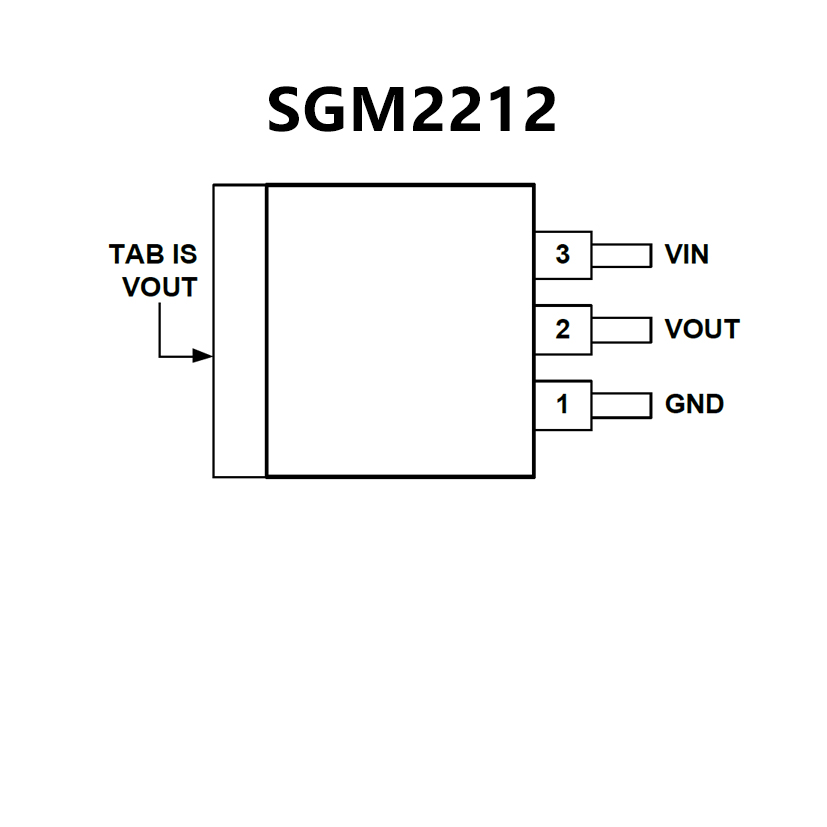

PIN CONFIGUTION
優(yōu)勢替代
FEATURES
? 1.5-V, 1.8-V, 2.5-V, 3.3-V, 5-V, and
Adjustable-Output Voltage Options
? Output Current of 800 mA
? Specified Dropout Voltage at Multiple Current Levels
? 0.2% Line Regulation Maximum
? 0.4% Load Regulation Maximum

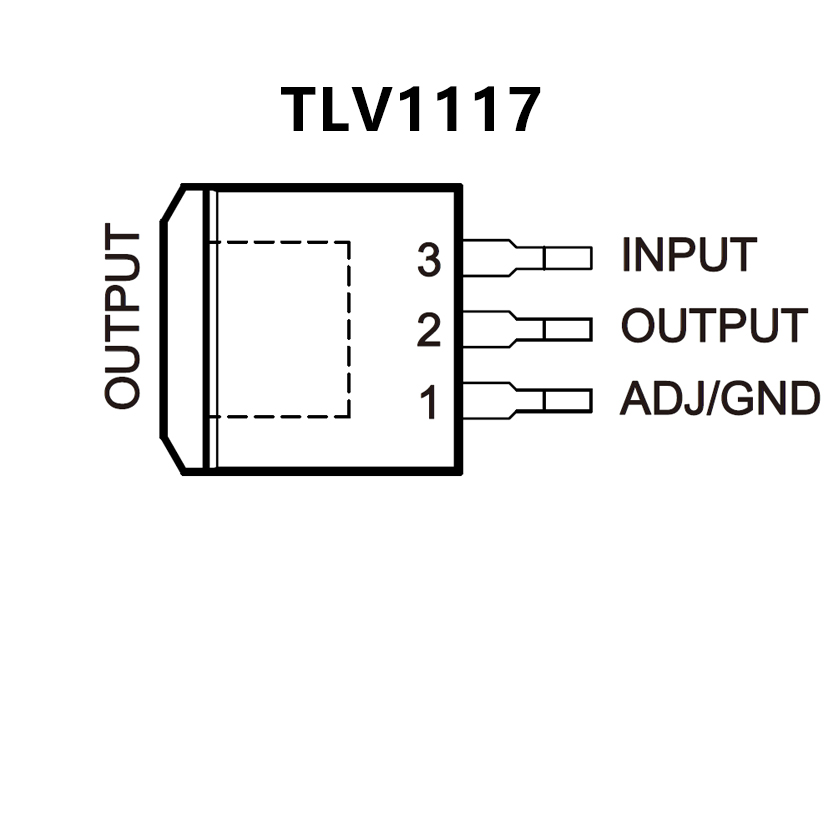

PIN CONFIGUTION
