SGM2212.pdf? Input Voltage Range: 2.7V to 20V
? Output Current: 800mA
? Fixed Output Voltages:1.8V, 2.5V, 2.8V, 3.3V, 5V
? Adjustable Output Voltage Range: 1.25V to 15V
? Output Voltage Accuracy: ±1% at +25℃
? Line Regulation: 0.012% (MAX)
? Load Regulation: 0.4% (MAX)
? Stable with Small Case Size Ceramic Capacitors
? Output Current Limit
? Thermal Shutdown Protection
? -40℃ to +125℃ Operating Temperature Range

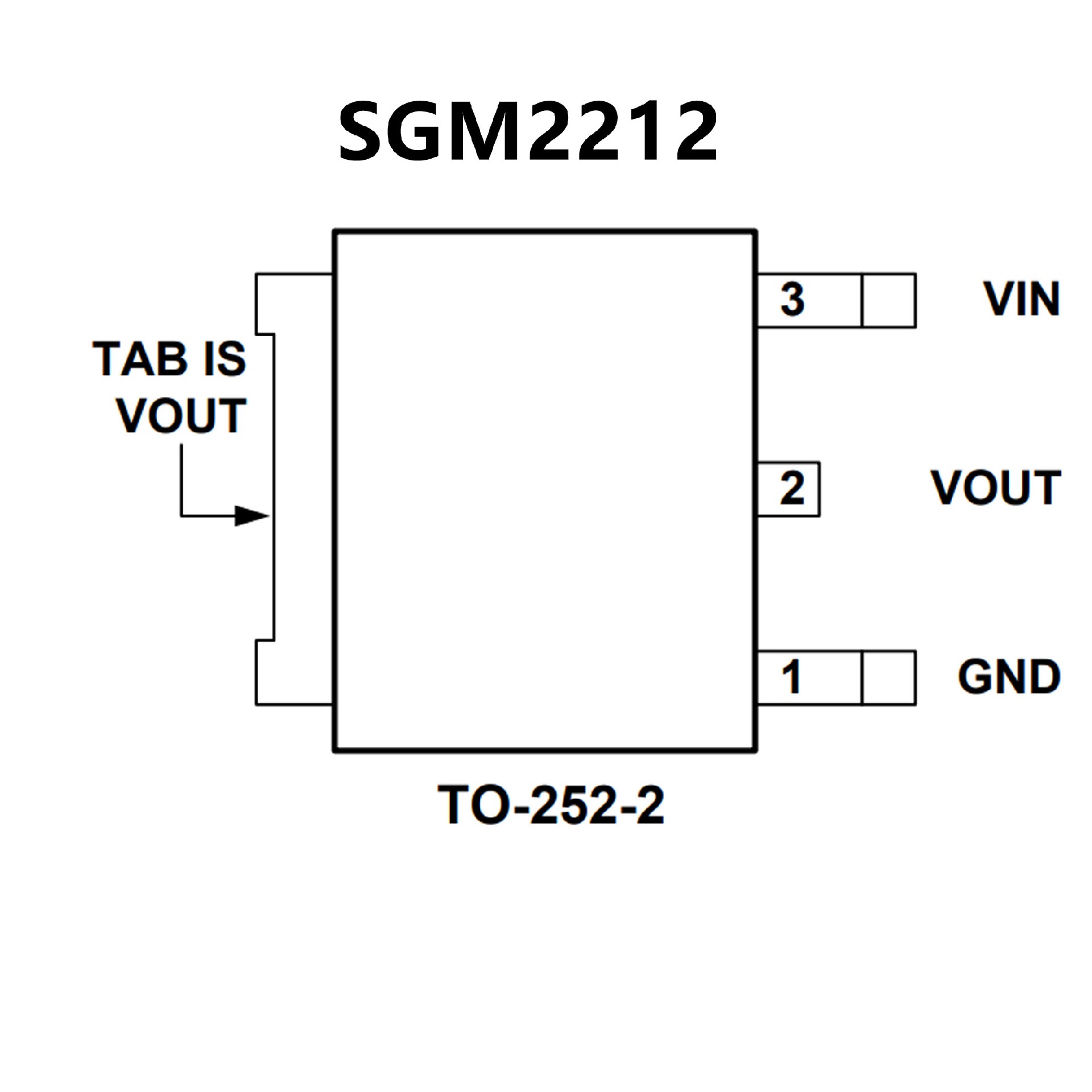

? Available in Green TO-252-2, TO-263-3,
SOT-223-3 and TDFN-3×3-8L Packages

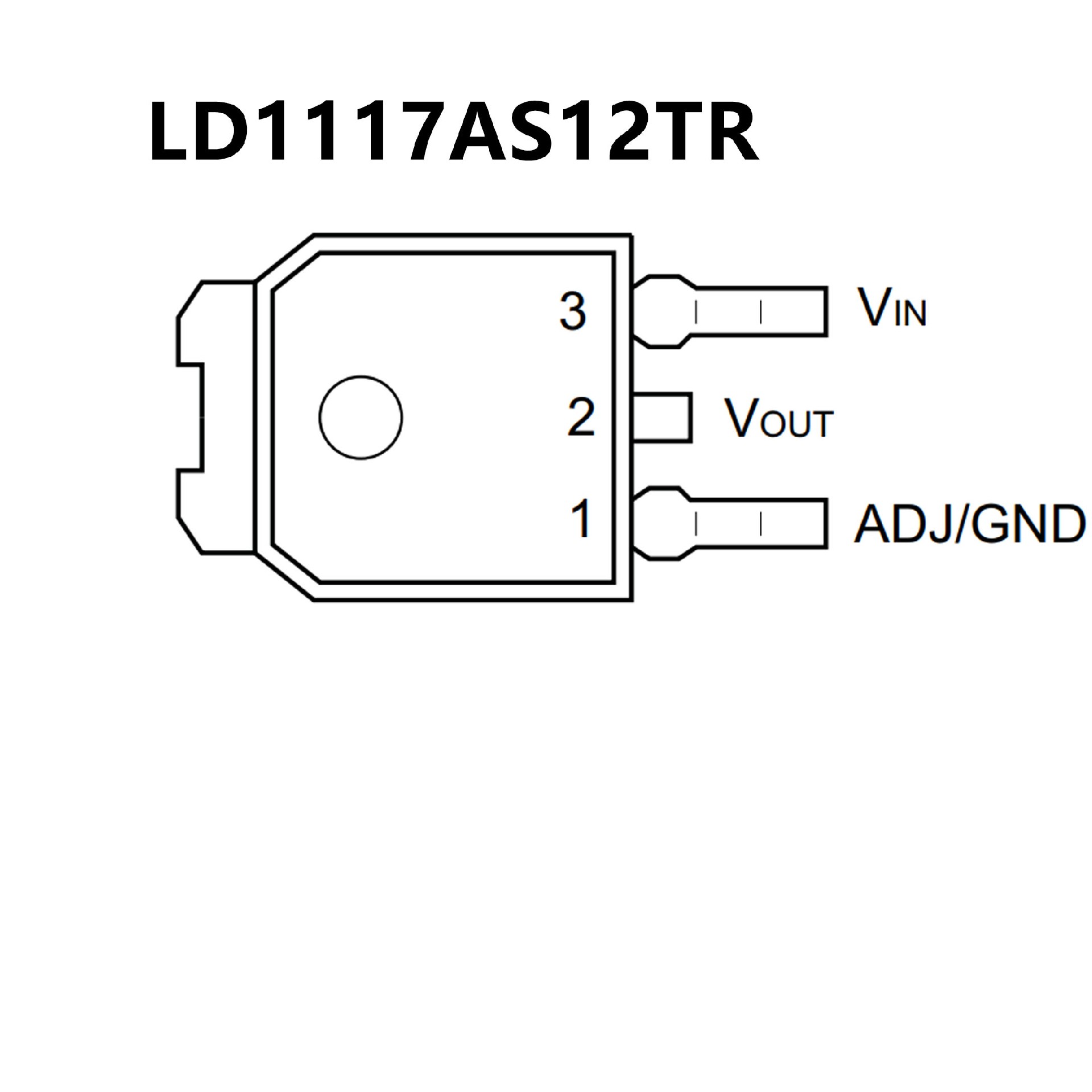

? Low dropout voltage:
1.15 V typ. @ IOUT = 1 A, 25 °C
? Very low quiescent current:
5 mA typ. @ 25 °C
? Output current up to 1 A
? Fixed output voltage of:
1.2 V, 1.8 V, 3.3 V
? Adjustable version availability
(VREF = 1.25 V)
? Internal current and thermal limit
? Only 10 μF for stability
