SGM2212.pdf? Input Voltage Range: 2.7V to 20V
? Output Current: 800mA
? Fixed Output Voltages:1.8V, 2.5V, 2.8V, 3.3V, 5V
? Adjustable Output Voltage Range: 1.25V to 15V
? Output Voltage Accuracy: ±1% at +25℃
? Line Regulation: 0.012% (MAX)
? Load Regulation: 0.4% (MAX)
? Stable with Small Case Size Ceramic Capacitors
? Output Current Limit
? Thermal Shutdown Protection
? -40℃ to +125℃ Operating Temperature Range

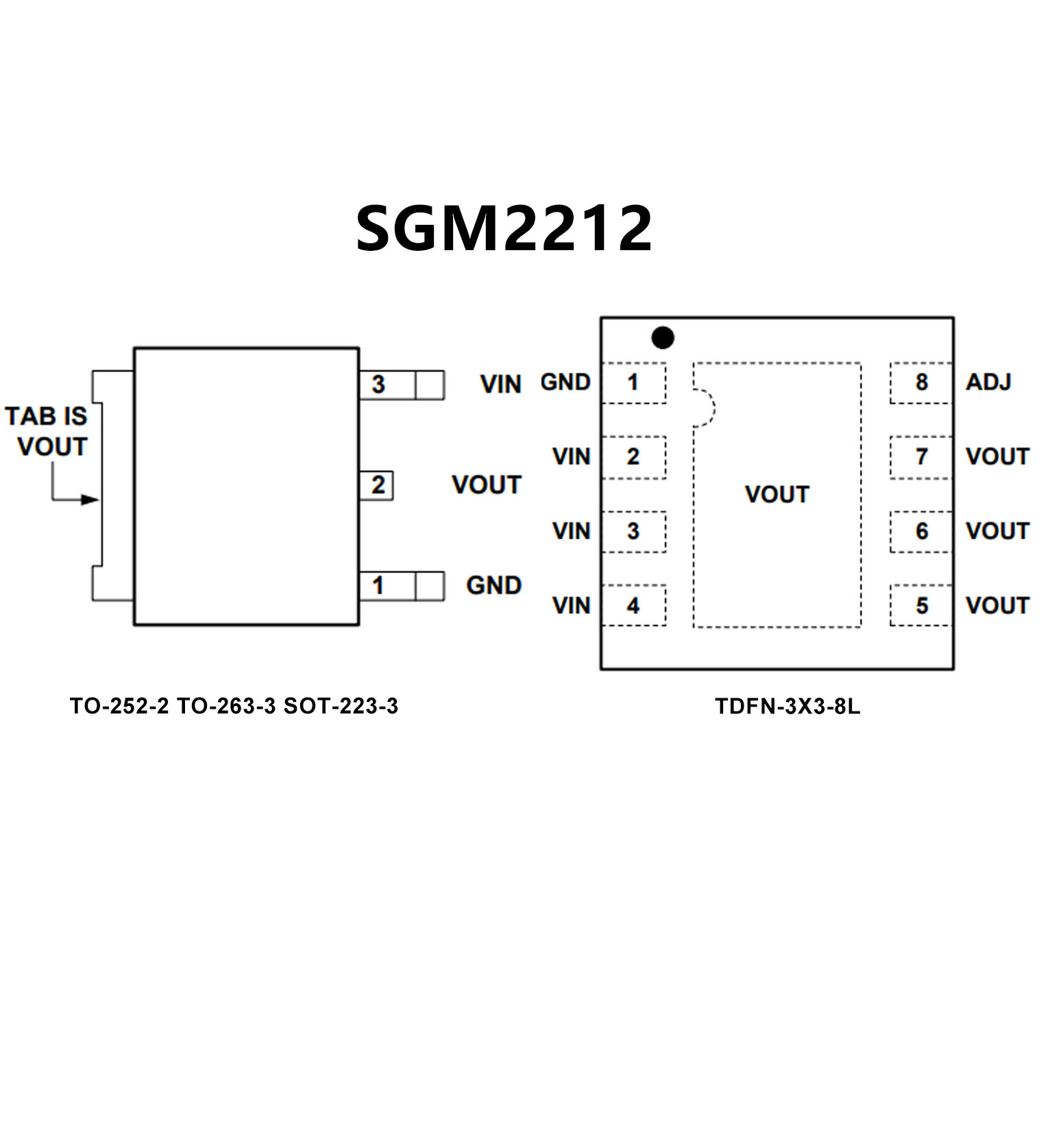

? Available in Green TO-252-2, TO-263-3, SOT-223-3 and TDFN-3×3-8L Packages

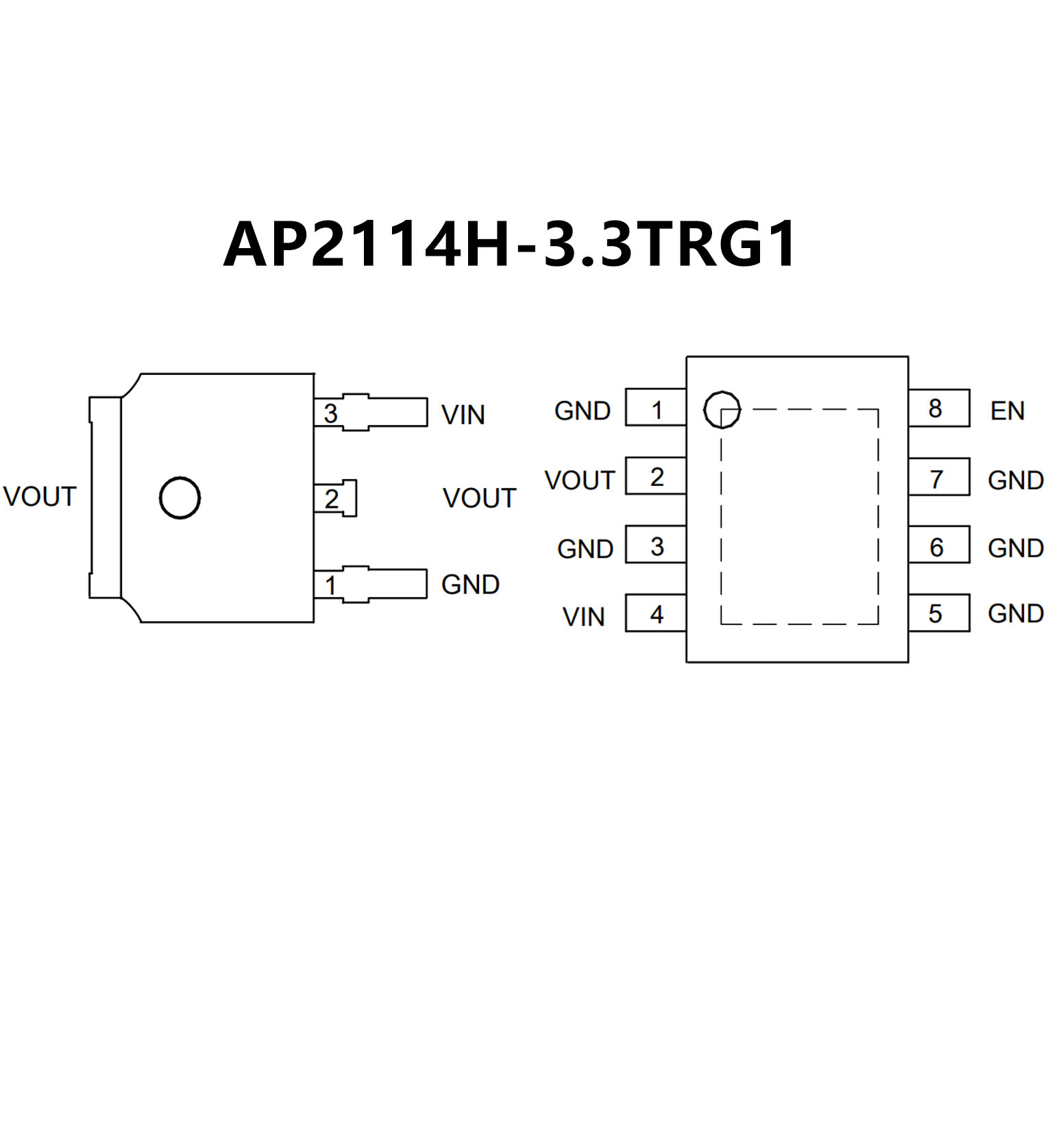

? Output Voltage Accuracy: ±1.5%
? Output Current: 1A (Min)
? Fold-back Short Current Protection: 50mA
? Low Dropout Voltage (3.3V): 450mV (Typ) @IOUT=1A
? Stable with 4.7μF Flexible Cap: Ceramic,
Tantalum and Aluminum Electrolytic
? Excellent Line Regulation: 0.02%/V (Typ),
0.1%/V (Max) @ IOUT=30mA
? Excellent Load Regulation: 0.2%A
(Typ) @ IOUT=1mA to 1A
? Low Quiescent Current: 60μA
(1.2V/1.5V/1.8V /2.5V/ADJ)
? Low Output Noise: 30μVRMS
? PSRR: 68dB @ Freq=1KHz (1.2V/1.5V/1.8V /ADJ)
? OTSD Protection
? Operating Temperature Range: -40°C to 85°C
? ESD: MM 400V, HBM 4000V
