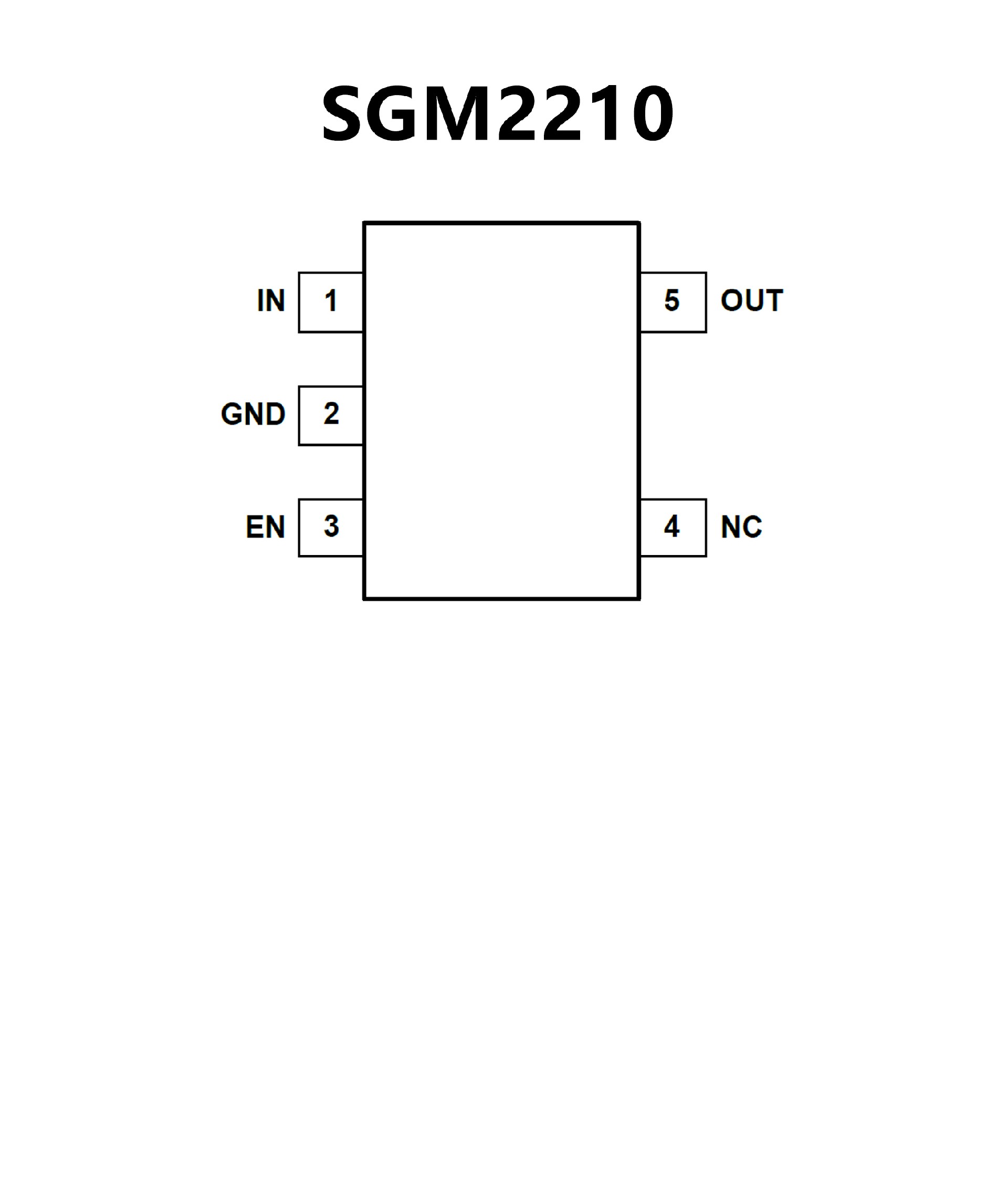

SGM2210-3.3XN5G.pdf? Input Voltage Range: 2.5V to 20V
? Low Dropout Voltage: 80mV (TYP) at 100mA Load
? Low Quiescent Current: 36μA (TYP)
? Shutdown Current: 0.5μA (TYP)
? Output Voltage Accuracy: ±1% at +25℃
? 300mA Guaranteed Output Current
? Fixed Output Voltage Versions:
1.2V to 5.0V with 100mV per Step
? Adjustable Output Voltages: 1.2V to 12V
? Logic-Controlled Shutdown
? Output Short-Circuit Constant Current Limiting
and Thermal Protection
? -40℃ to +125℃ Operating Temperature Range
? Available in a Green SOT-23-5 Package

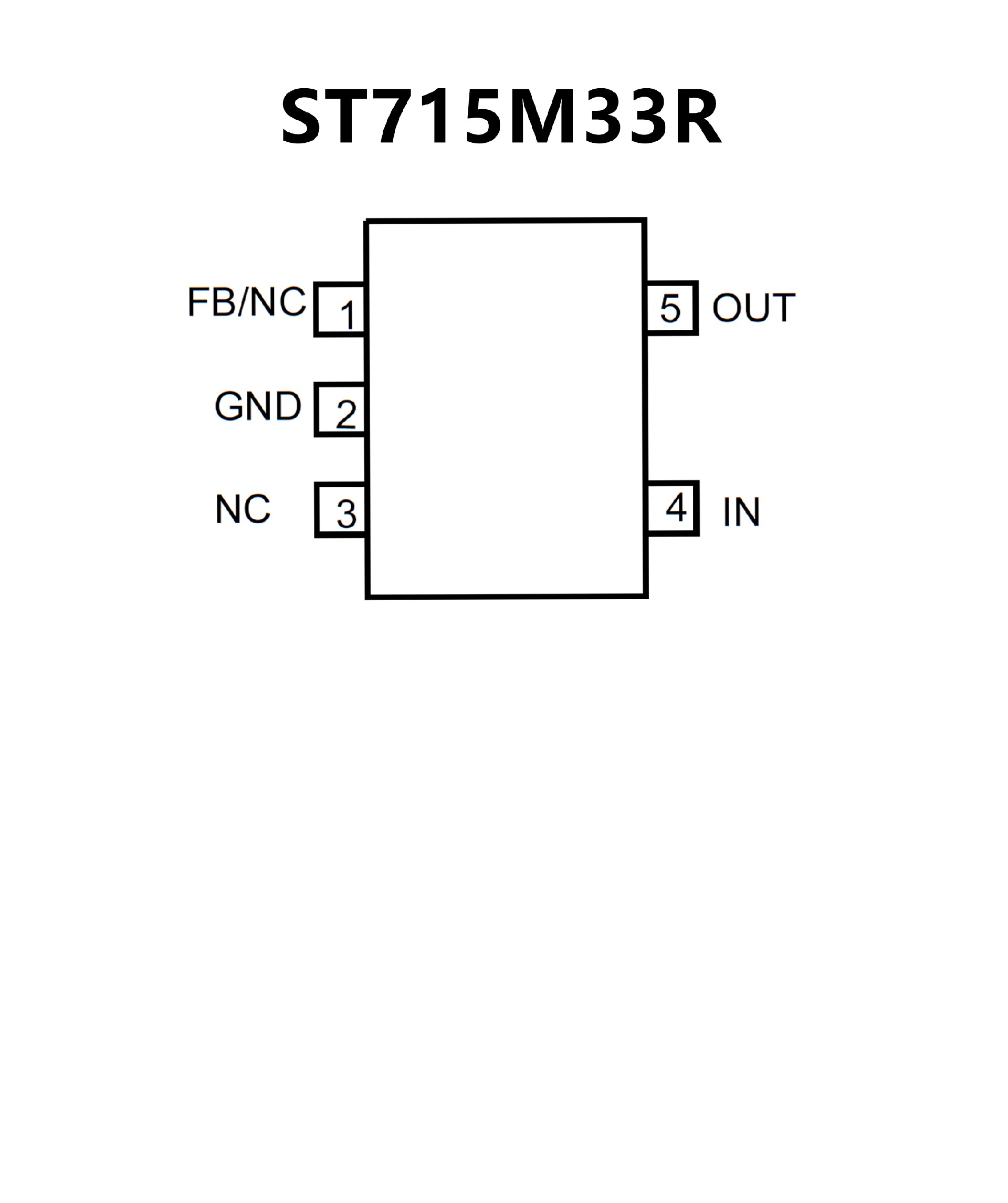

? 2.5 V to 24 V input voltage
? Low-dropout voltage (500 mV typ. at 85 mA)
? Very low quiescent current (3.8 μA typ. at full
load)
? 85 mA guaranteed output current
? Output voltages available on request: from
1.2 V to 5.0 V with 100 mV step and adjustable
? Compatible with ceramic output capacitors
from 0.47 μF to 10 μF
? Internal current limit
? Packages: SOT23-5L, SOT323-5L and DFN8
(3x3 mm)
? Temperature range: from -40 °C to 125 °C
