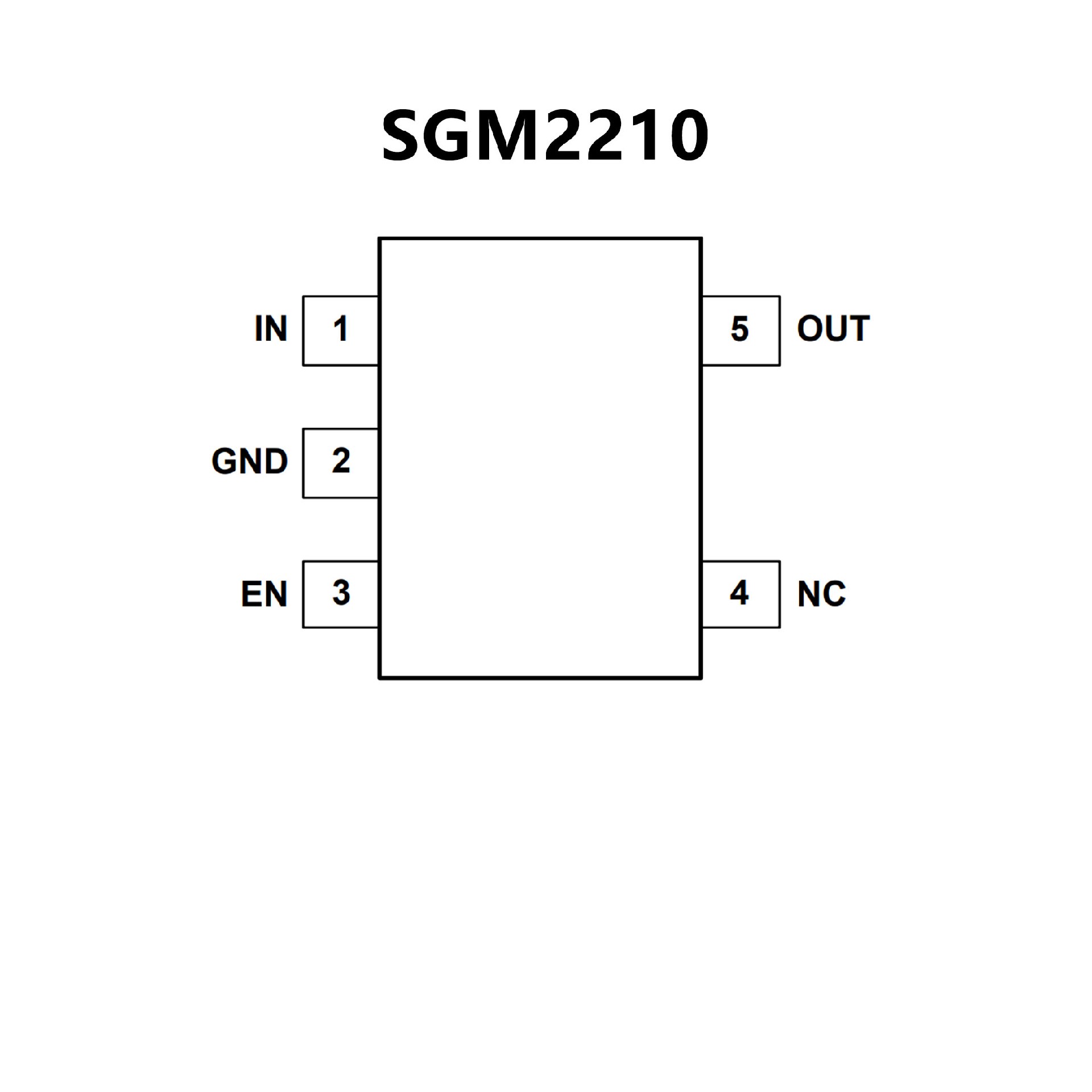

SGM2210.pdf? Operating Input Voltage Range: 2.5V to 20V
? Fixed Outputs of 1.2V, 1.8V, 2.5V, 3.3V and 5.0V
? Adjustable Output from 1.2V to 12V
? 300mA Output Current
? Output Voltage Accuracy: ±1% at +25℃
? Quiescent Current: 36μA (TYP)
? Low Dropout: 80mV (TYP) at 100mA, VOUT = 3.3V
? Low Noise: 48μVRMS (TYP) at VOUT = 3.3V
? High PSRR: 100dB (TYP) at 1kHz
? Current Limiting and Thermal Protection
? With Output Automatic Discharge
? Stable with Small Case Size Ceramic Capacitors
? Shutdown Supply Current: 0.5μA (TYP)
? -40℃ to +125℃ Operating Temperature Range
? Available in a Green SOT-23-5 Package

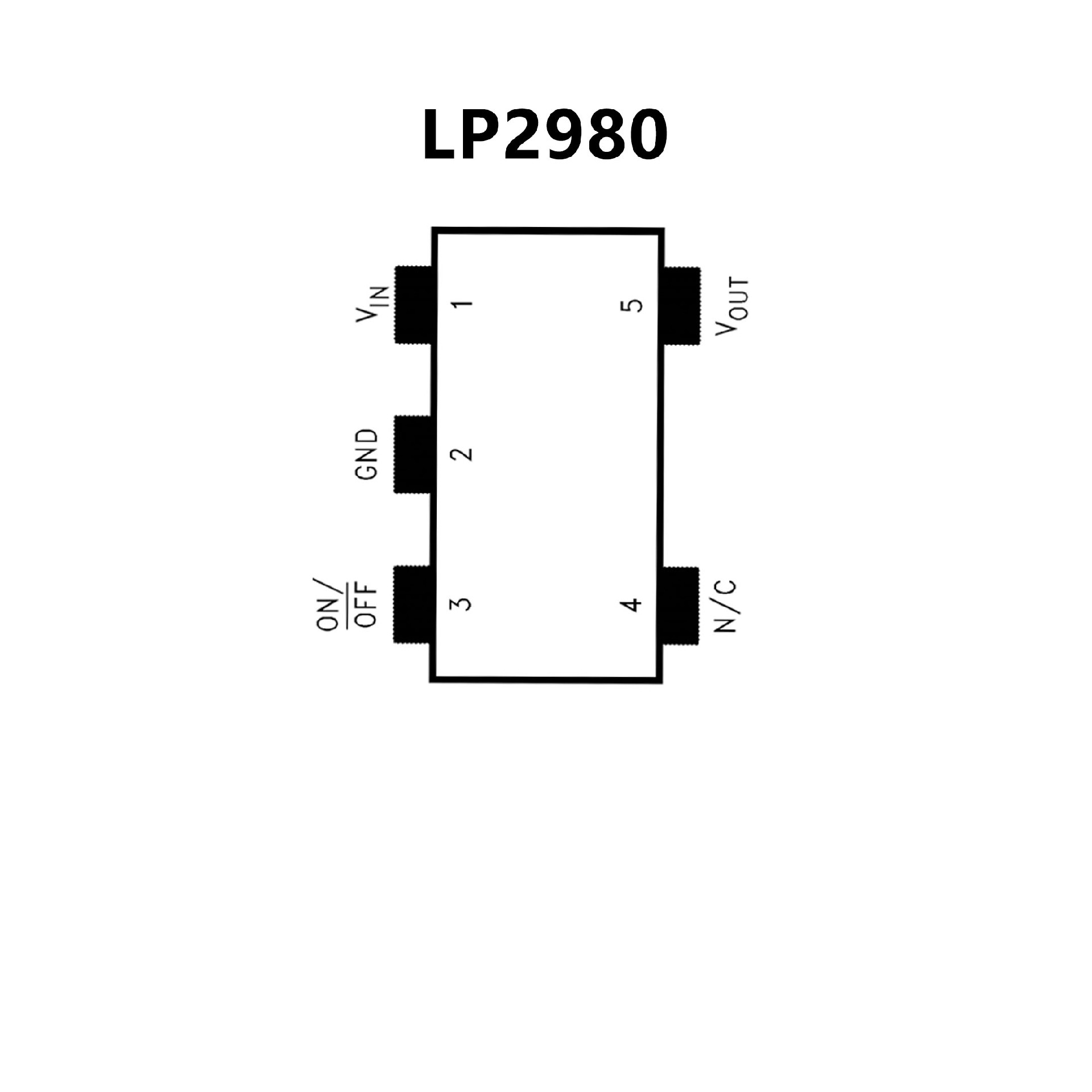

? Ultra low dropout voltage
? Output voltage accuracy 0.5% (A Grade)
? Guaranteed 50 mA output current
? Smallest possible size (SOT-23, micro SMD package)
? Requires only 1 μF external capacitance
? < 1 μA quiescent current when shutdown
? Low ground pin current at all load currents
? High peak current capability (150 mA typical)
? Wide supply voltage range (16V max)
? Fast dynamic response to line and load
? Low ZOUT over wide frequency range
? Overtemperature/overcurrent protection
? ?40?C to +125?C junction temperature range
