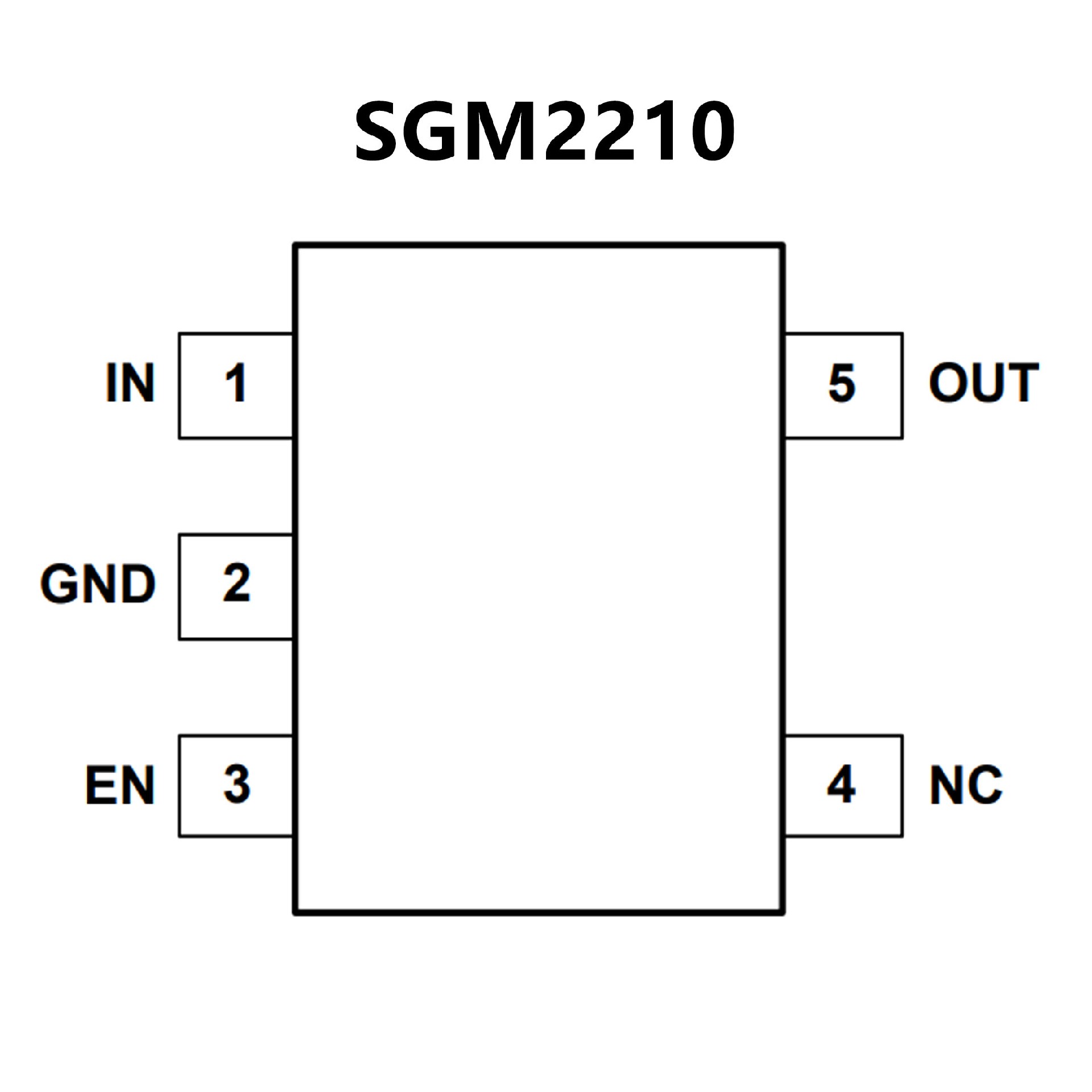

SGM2210.pdf? Operating Input Voltage Range: 2.5V to 20V
? Fixed Outputs of 1.2V, 1.8V, 2.5V, 3.3V and 5.0V
? Adjustable Output from 1.2V to 12V
? 300mA Output Current
? Output Voltage Accuracy: ±1% at +25℃
? Quiescent Current: 36μA (TYP)
? Low Dropout: 80mV (TYP) at 100mA, VOUT = 3.3V
? Low Noise: 48μVRMS (TYP) at VOUT = 3.3V
? High PSRR: 100dB (TYP) at 1kHz
? Current Limiting and Thermal Protection
? With Output Automatic Discharge
? Stable with Small Case Size Ceramic Capacitors
? Shutdown Supply Current: 0.5μA (TYP)
? -40℃ to +125℃ Operating Temperature Range
? Available in a Green SOT-23-5 Package
? Input voltage from 2.5 to 13.2 V
? Very low-dropout voltage
(100 mV typ. @100 mA load)
? Low quiescent current
(typ. 55 μA, 1 μA inoff mode)
? Low noise
? Output voltage tolerance: ± 2.0% @ 25 °C
? 200 mA guaranteed output current
? Wide range of output voltages available
onrequest: fixed from 1.2 V to 12 V
with100 mV step and adjustable
? Logic-controlled electronic shutdown
? Compatible with ceramic capacitorCOUT = 1 μF
? Internal current and thermal limit
? Available in SOT23-5L, SOT323-5L, SOT-89
and DFN6-1.2x1.3 packages
? Temperature range: -40 °C to 125 °C
