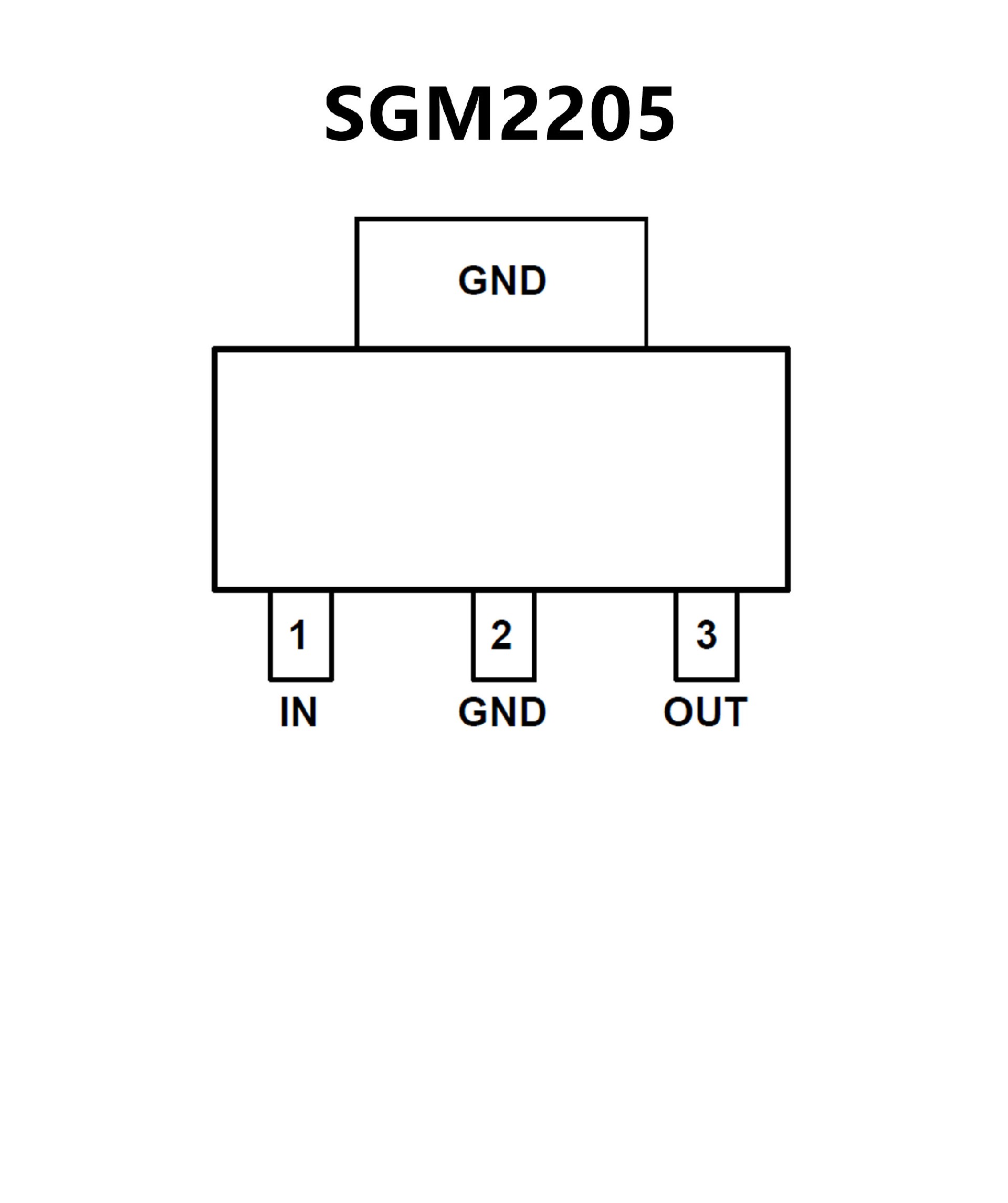

SGM2205.pdf? 2.5V to 20V Wide Input Voltage Range
? Output Voltage Range: 1.8V to 15V
? Guaranteed 800mA Output over the
FullOperating Temperature Range
? Low 480mV (TYP) Dropout Voltage at Full Load
? Extremely Tight Load and Line Regulation
? Fast Load Transient
? Low Temperature Coefficient
? Output Shorted to GND Protection
? Current and Thermal Limiting
? No-Load Stability
? Ultra Low Noise Capability
? -40℃ to +125℃ Operating Temperature Range
? Thermally-Efficient Surface-Mount Package
vAvailable in Green SOT-89-3,
SOT-223-3, SOIC-8,TDFN-3×3-8L
and TO-263-5B Packages
? 5.0V and 3.3V versions at 250mA output
? Accurate 0.5% for SPX2954A
? Very low quiescent current
? Low dropout: 310mV at 250mA
? Extremely tight load and line regulation
? Very low temperature coefficient
? Current and thermal limiting
? Need only 1μF for stability
? Direct replacement for LP2954
? Error flag warns of output dropout
? Logic-controlled electronic shutdown
? Programmable output from 1.24V to 30V
