150mA, High PSRR, High Voltage Regulator,SGM2202 Replace NCP730.
SGM2202
SGM2202.pdf
SGM2202.pdfFEATURES
? Low Power Consumption
? 150mA Nominal Output Current
? Low Dropout Voltage
? High PSRR
? Low Temperature Coefficient
? High Input Voltage (up to 36V)
? Output Voltage Accuracy: ±1%
? Fixed Outputs of 3.0V, 3.3V and 5.0V
? -40℃ to +85℃ Operating Temperature Range
? Available in Green SOT-23-5 Package

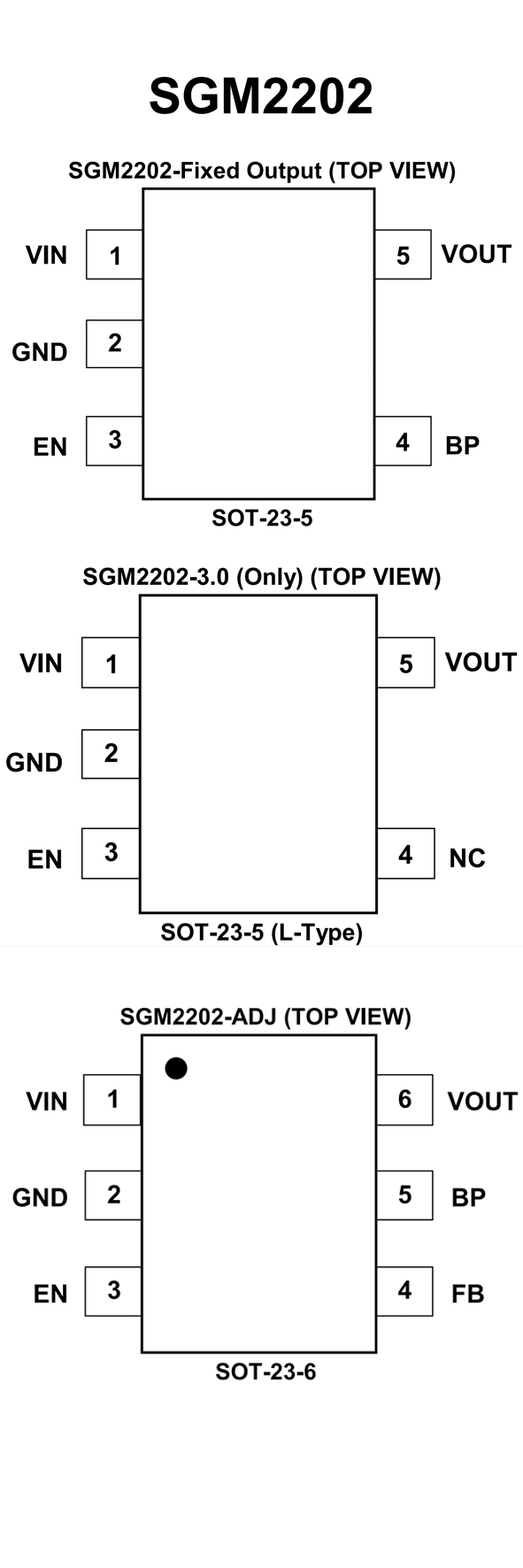

PIN CONFIGUTION
優(yōu)勢(shì)替代
FEATURES
? Operating Input Voltage Range: 2.7 V to 38 V
? Output Voltage: 1.2 V to 24 V
? Capable of Sourcing 200 mA Peak Output Current
? Very Low Quiescent Current: 1 A typ.
? Low Dropout: 290 mV typ. at 150 mA, 3.3 V Version
? Output Voltage Accuracy ±1%
? Power Good Output (Version B)
? Stable with Small 1 F Ceramic Capacitors
? Built?in Soft Start Circuit to Suppress Inrush Current
? Over?Current and Thermal Shutdown Protections
? Available in Small TSOP?5 and WDFN6 (2x2) Packages
? These Devices are Pb?Free and are RoHS Compliant

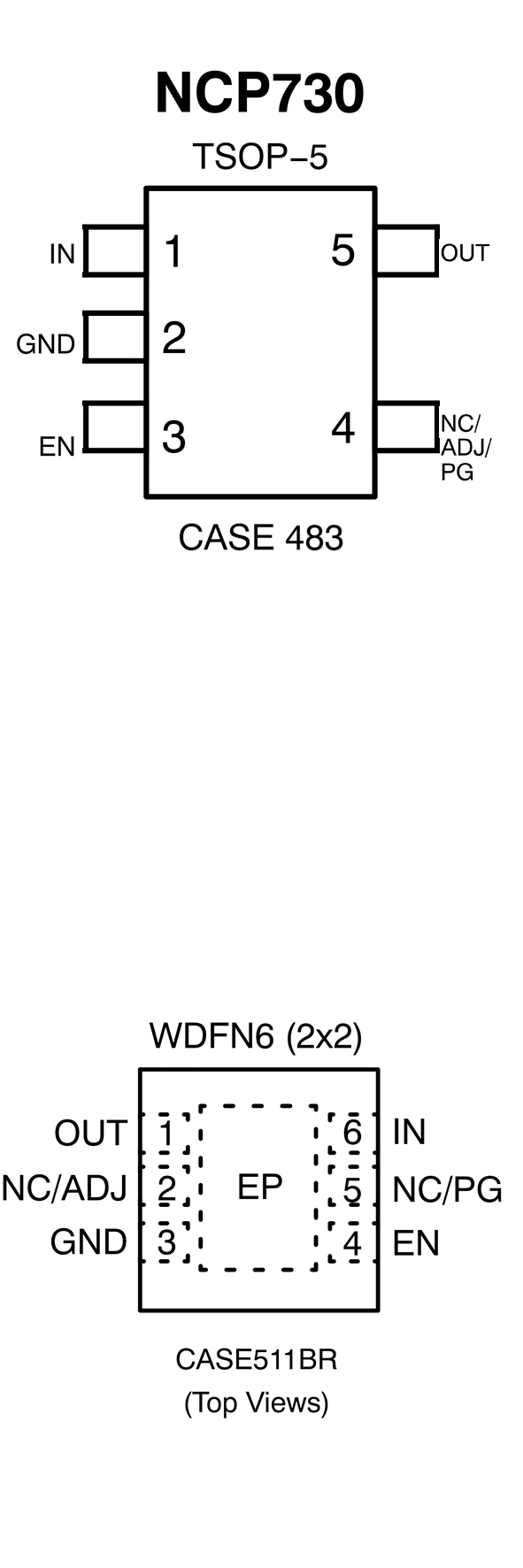

PIN CONFIGUTION
