SGM2048.pdf? Operating Input Voltage Range: 2.2V to 7V
? Fixed Outputs of 1.2V, 1.8V, 2.8V, 3.0V, 3.3V, 5.0V
? Adjustable Output from 0.8V to 6V
? Output Voltage Accuracy: ±1% at +25℃
? Low Dropout Voltage: 150mV (TYP) at 1A
? Low Noise: 30μVRMS (TYP)
? Power Supply Rejection Ratio at VOUT = 3.3V:
75dB at 1kHz
65dB at 100kHz
55dB at 1MHz
? Current Limiting and Thermal Protection
? Excellent Load and Line Transient Responses
? With Output Automatic Discharge
? Stable with Small Case Size Ceramic Capacitors
? -40℃ to +125℃ Operating Temperature Range

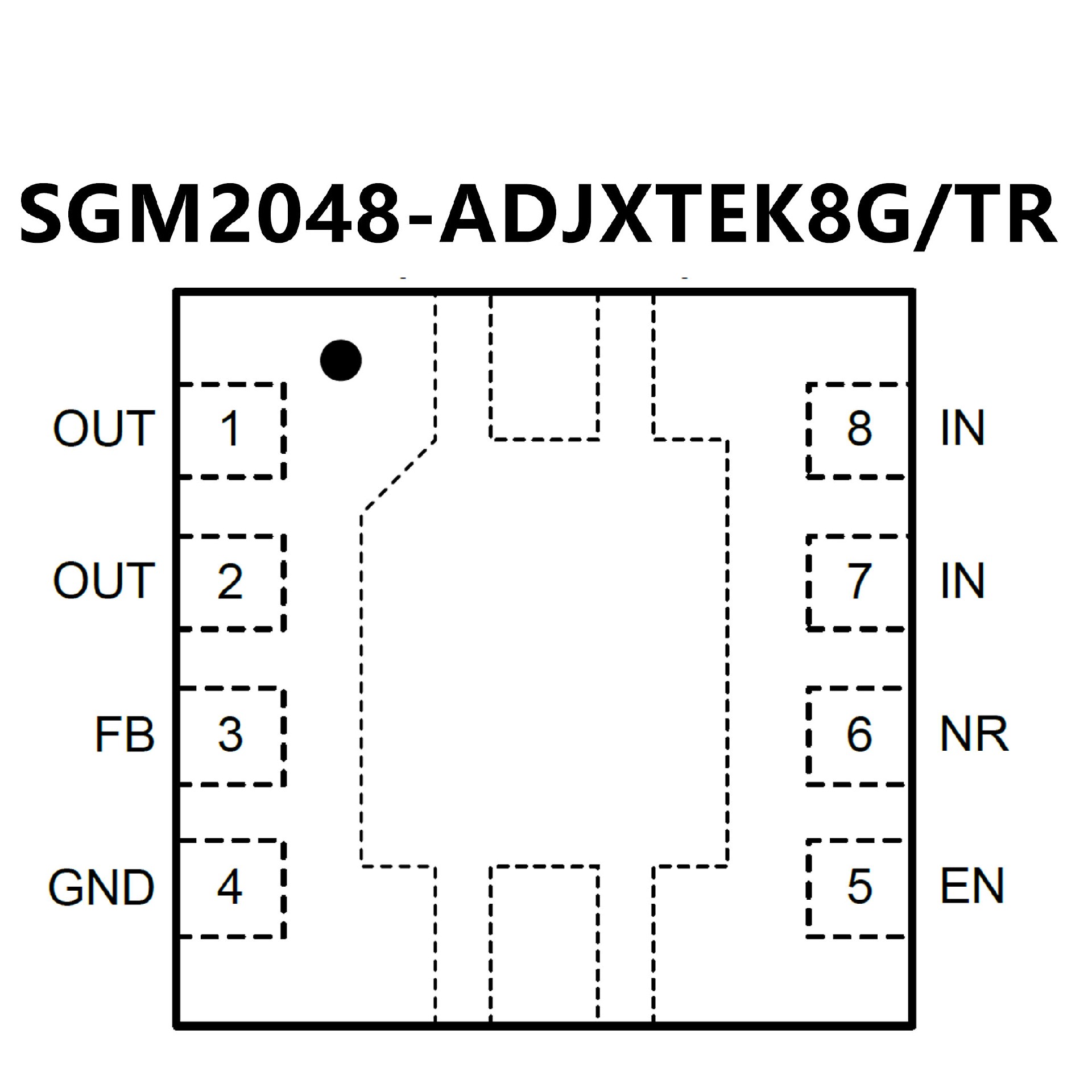

? Available in a Green TDFN-3×3-8CL Package
? Wide Input Voltage Range: 2.2V to 6.0V
? Output Voltage Accuracy: ±1%
? Very Low Dropout Voltage (3.3V): 360mV at 1A Typical
? Low Quiescent Current (IQ): 60μA Typical
? Adjustable Output Voltage Range: 0.8V to 5.0V
? Fixed Output Options: 1.0V, 1.2V, 1.5V, 1.8V, 2.5V, 2.8V and
3.3V
? High PSRR: 75dB @ 1kHz
? Current Limit: 1.5A
? Fold-Back Short Circuit Protection: 400mA
? Thermal Shutdown Protection
? Stable with MLCC, E-Cap, Tan-Cap or Solid Capacitor ≥ 2.2μF
? Ambient Temperature Range: -40°C to +85°C
? Available in “Green” Molding Compound (No Br, Sb)
? Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
? Halogen and Antimony Free. “Green” Device (Note 3)
