SGM2040.pdf? Fixed Output Voltages:
1.2V to 5.2V with 0.05V per Step
? Input Voltage Range: 1.7V to 7.5V
? High Output Voltage Accuracy: ±1.2%
? Low Dropout Voltage: 60mV (TYP) at 100mA
? Ultra-Low Current Consumption: 1μA (TYP)
? 250mA Nominal Output Current
? Output Capacitor: Ceramic Capacitor of 0.1μF or
Higher can be Used
? Low Reverse Leakage Current:
0.4μA (TYP) when VOUT > VIN
? Built-In Over-Temperature Protection
? Built-In Over-Current Protection Circuit
? Supports 1.8V Logic for EN Pin
? -40℃ to +85℃ Operating Temperature Range

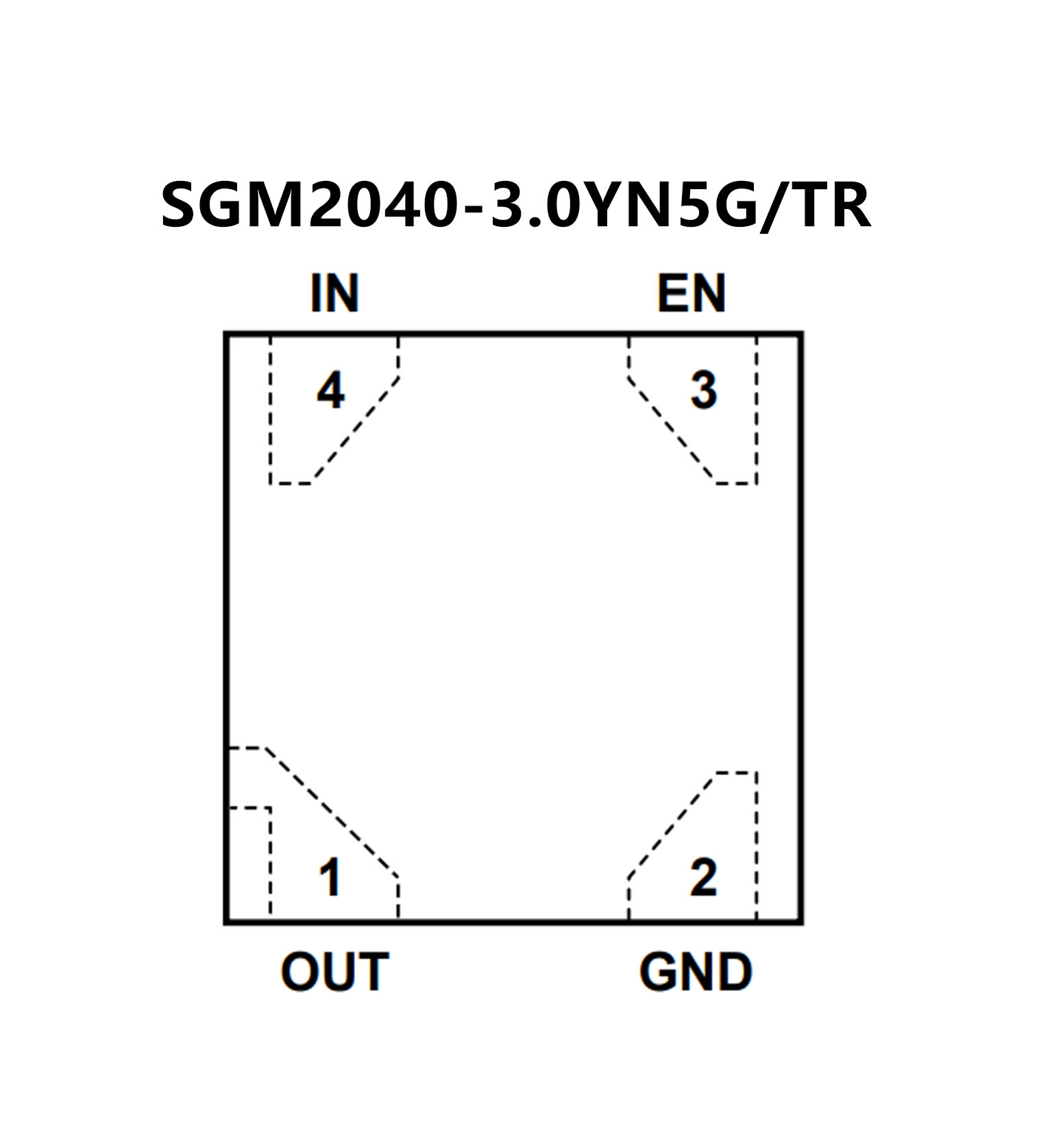

? Available in Green SOT-23-5 and UTDFN-1×1-4AL
Packages
? Ultralow quiescent current
IQ = 560 nA with 0 μA load
IQ = 860 nA with 1 μA load
? Stable with 1 μF ceramic input and output capacitors
? Maximum output current: 150 mA
? Input voltage range: 2.2 V to 5.5 V
Low shutdown current: <50 nA typical
Low dropout voltage: 195 mV at 150 mA load
? Initial accuracy: ±1%
? Accuracy over line, load, and temperature: ±3.5%
? 15 fixed output voltage options: 1.2 V to 4.2 V
? Adjustable output available
? PSRR performance of 72 dB at 100 Hz
? Current limit and thermal overload protection
? Logic-control enable
? Integrated output discharge resistor
? 5-lead TSOT package

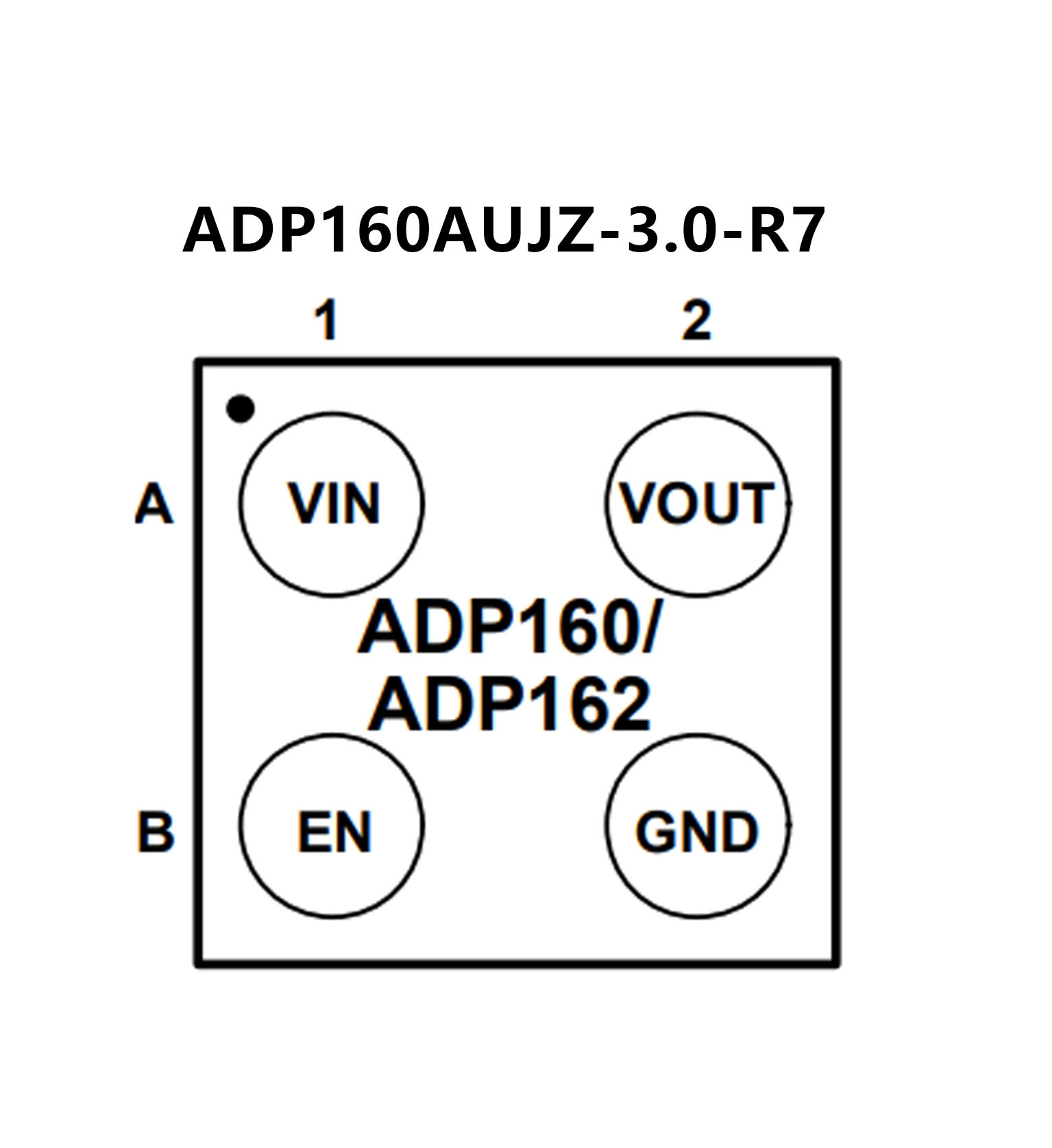

? 4-ball, 0.5 mm pitch WLCSP
