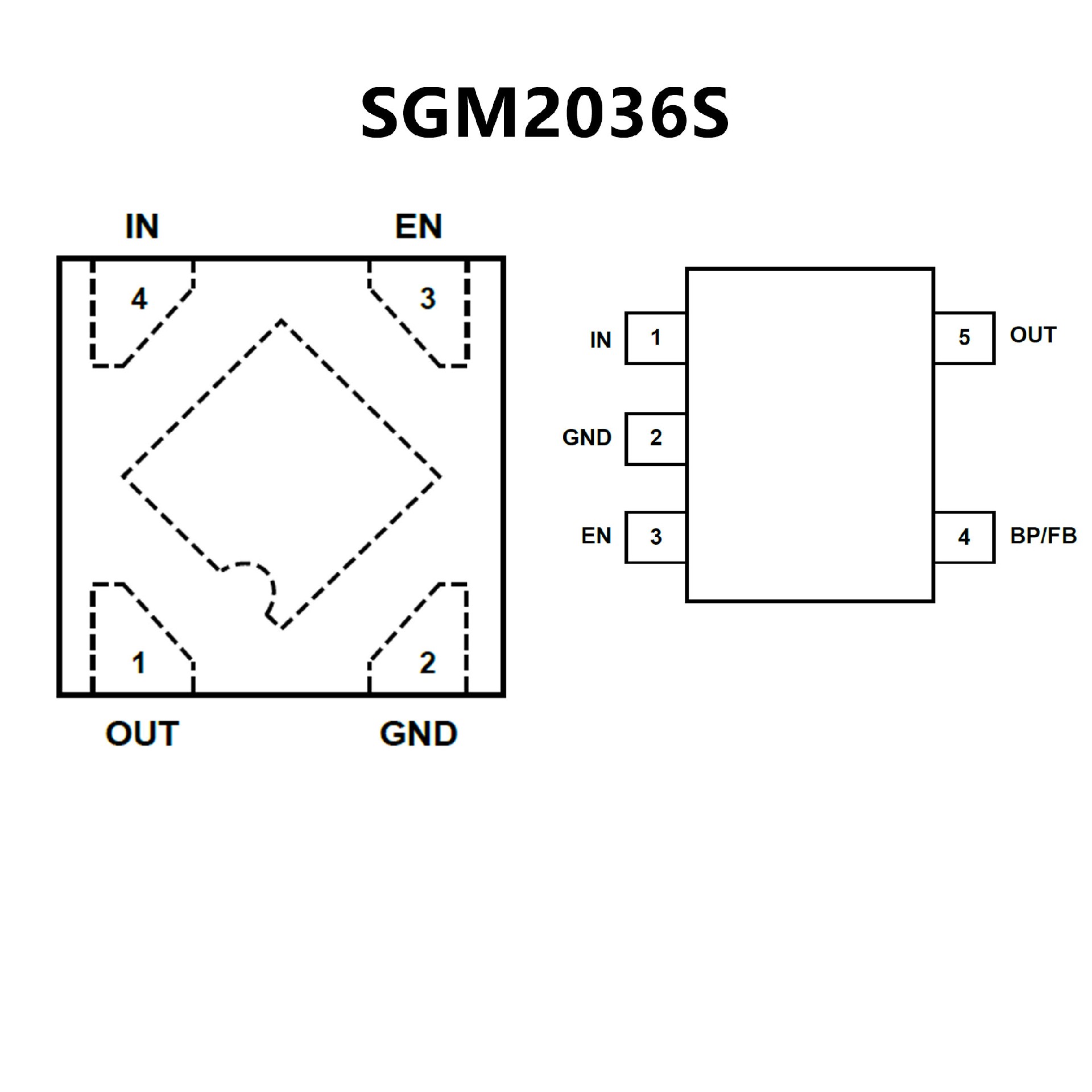

SGM2036S.pdf? Operating Input Voltage Range: 1.6V to 5.5V
? Fixed Output Voltages: 0.8V, 0.9V, 1.0V, 1.05V,
1.1V, 1.2V, 1.3V, 1.35V, 1.5V, 1.8V, 1.85V, 2.1V,
2.2V, 2.3V, 2.5V, 2.6V, 2.7V, 2.8V, 2.85V, 2.9V,
3.0V,3.1V, 3.3V, 3.6V, 4.2V, 4.4V and 5.0V
? Adjustable Output from 0.8V to 5.0V
? 300mA Guaranteed Output Current
? Low Dropout Voltage: 154mV (TYP) at 300mA
? Low Noise: 40μVRMS (TYP)
? Low Supply Current: 25μA (TYP)
? Shutdown Supply Current: 0.04μA (TYP)
? Short Start-Up Time
? Short Auto-Discharge Function
? Thermal Shutdown Protection
? Short-Circuit Current Limit
? Fast Load and Line Transient Responses
? -40℃ to +125℃ Operating Temperature Range
? Available in Green XTDFN-1×1-4L,
SOT-23-5 andSC70-5 Packages

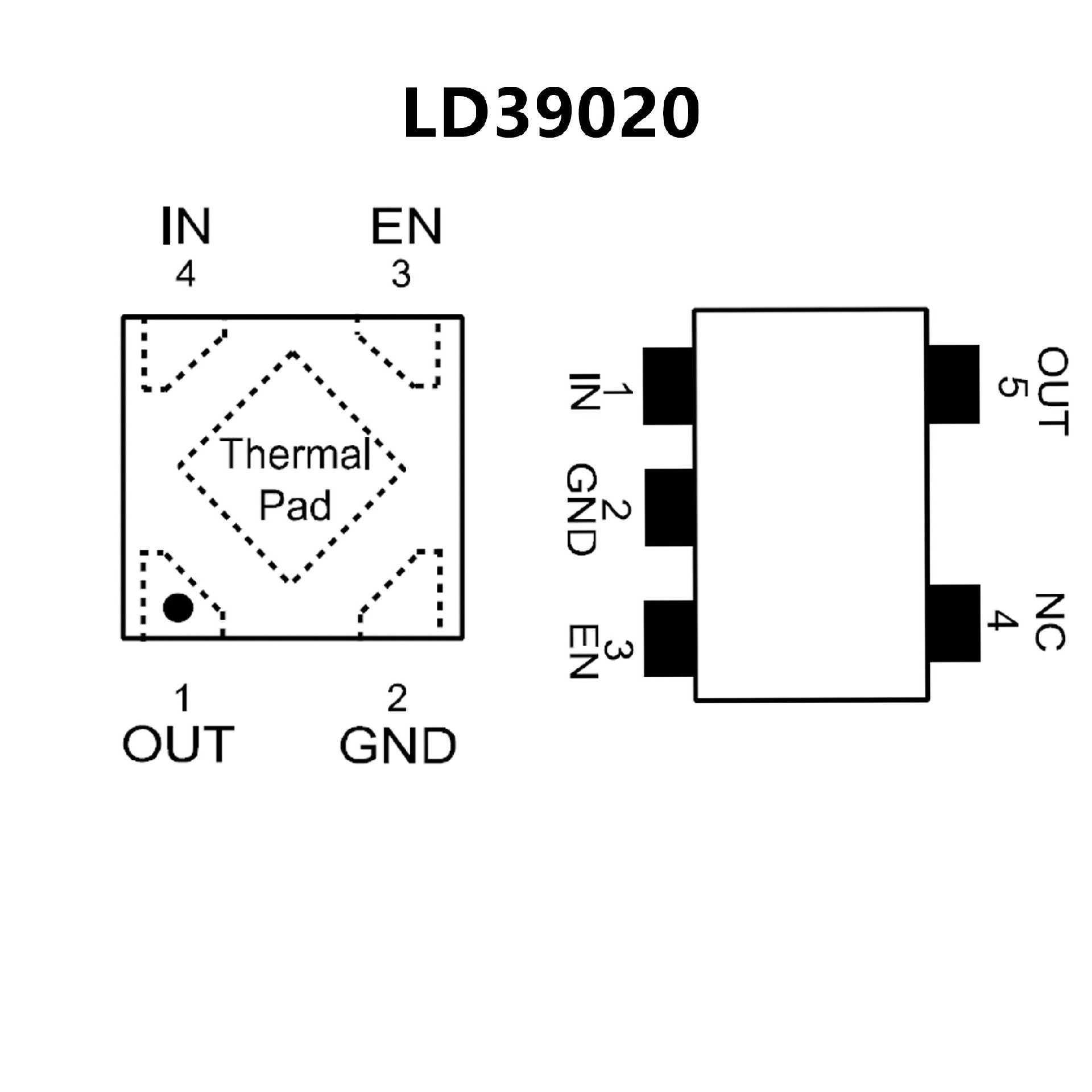

? Input voltage from 1.5 to 5.5 V
? Ultra low dropout voltage
(200 mV typ. at200 mA load)
? Very low quiescent current
(20 μA typ at noload, 0.03 μA typ in off mode)
? Output voltage tolerance: ±0.5%
(A version)or ± 2.0% @ 25 °C (standard version)
? 200 mA guaranteed output current
? High PSRR (80 dB@1 kHz, 50 db@100kHz)
? Wide range of output voltages available
onrequest: from 0.8 V up to 5.0 V in 50 mVstep
? Logic-controlled electronic shutdown
? Internal soft-start
? Optional output voltage discharge feature
? Compatible with ceramic capacitor COUT =0.47 μF
? Internal constant current and thermalprotections
? Available in DFN 1x1-4L and SOT23-5L
? Operating temperature range: -40 °C to125 °C
