300mA, Low Power, Low Dropout,RF Linear Regulators, SGM2036-3.3 Replace TLV75801.
SGM2036-3.3
SGM2036-3.3.pdf
SGM2036-3.3.pdfFEATURES
? Low Dropout Voltage
? Thermal Overload Protection
? Built-In Fold Back Protection Circuit
? 20μA Low Supply Current
? 10nA Logic-Controlled Shutdown
? 1.6V to 5.5V Input Voltage Range
? Fixed Outputs of 0.8V, 0.9V, 1.0V, 1.05V,
1.1V, 1.2V, 1.3V, 1.35V, 1.5V, 1.8V, 1.85V,
2.1V, 2.2V, 2.3V, 2.5V, 2.6V, 2.7V, 2.8V, 2.85V,
2.9V, 3.0V, 3.1V, 3.3V, 3.6V, 4.2V, 4.4V and 5.0V
? Adjustable Output from 0.8V to 5.0V
? Short Auto-Discharge Function
? 300mA Output Current
? High Output Voltage Accuracy
? Short Start-Up Time
-40℃ to +85℃ Operating
Temperature Range
Available in Green UTDFN-1×1-4L,
SOT-23-5 and SC70-5 Packages

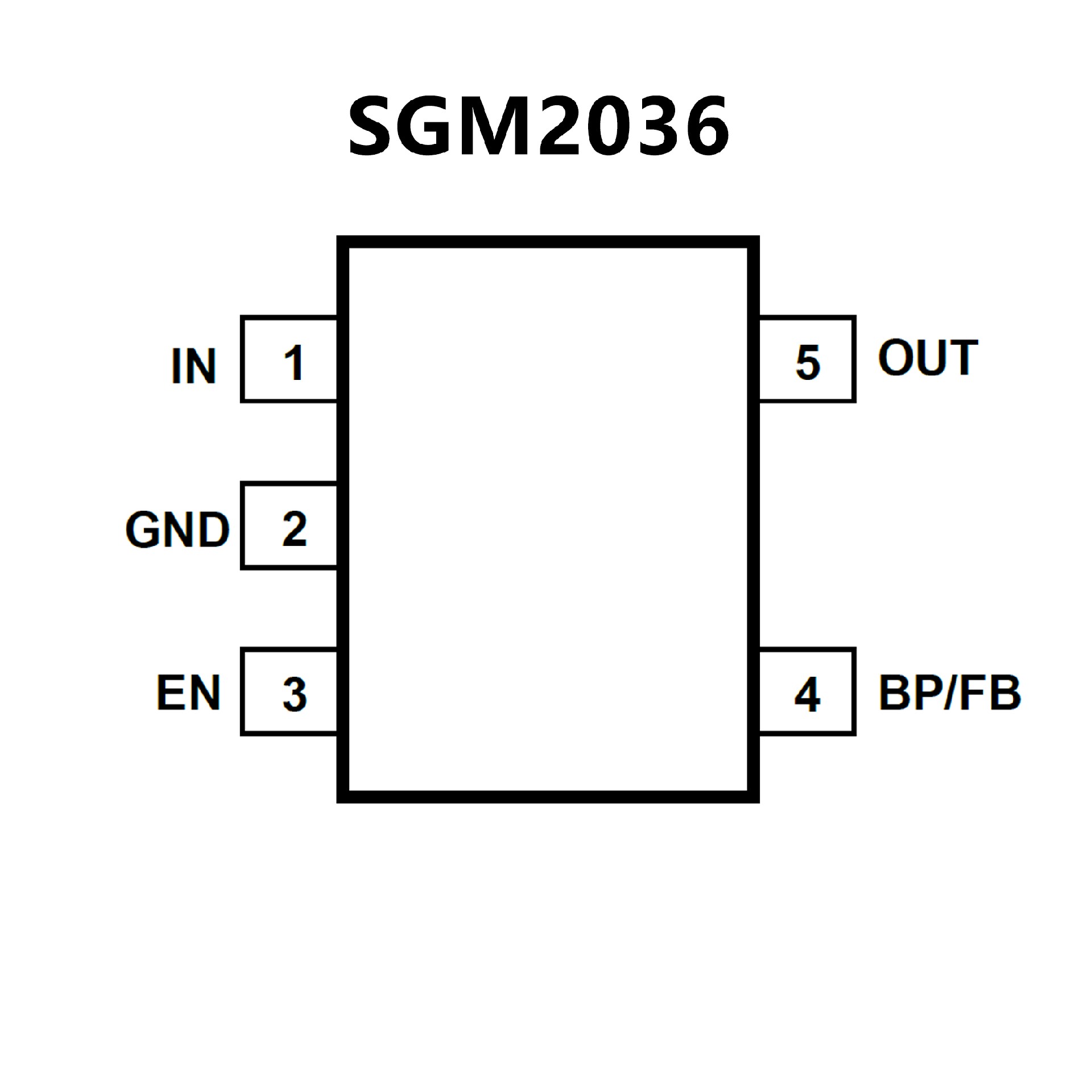

PIN CONFIGUTION
