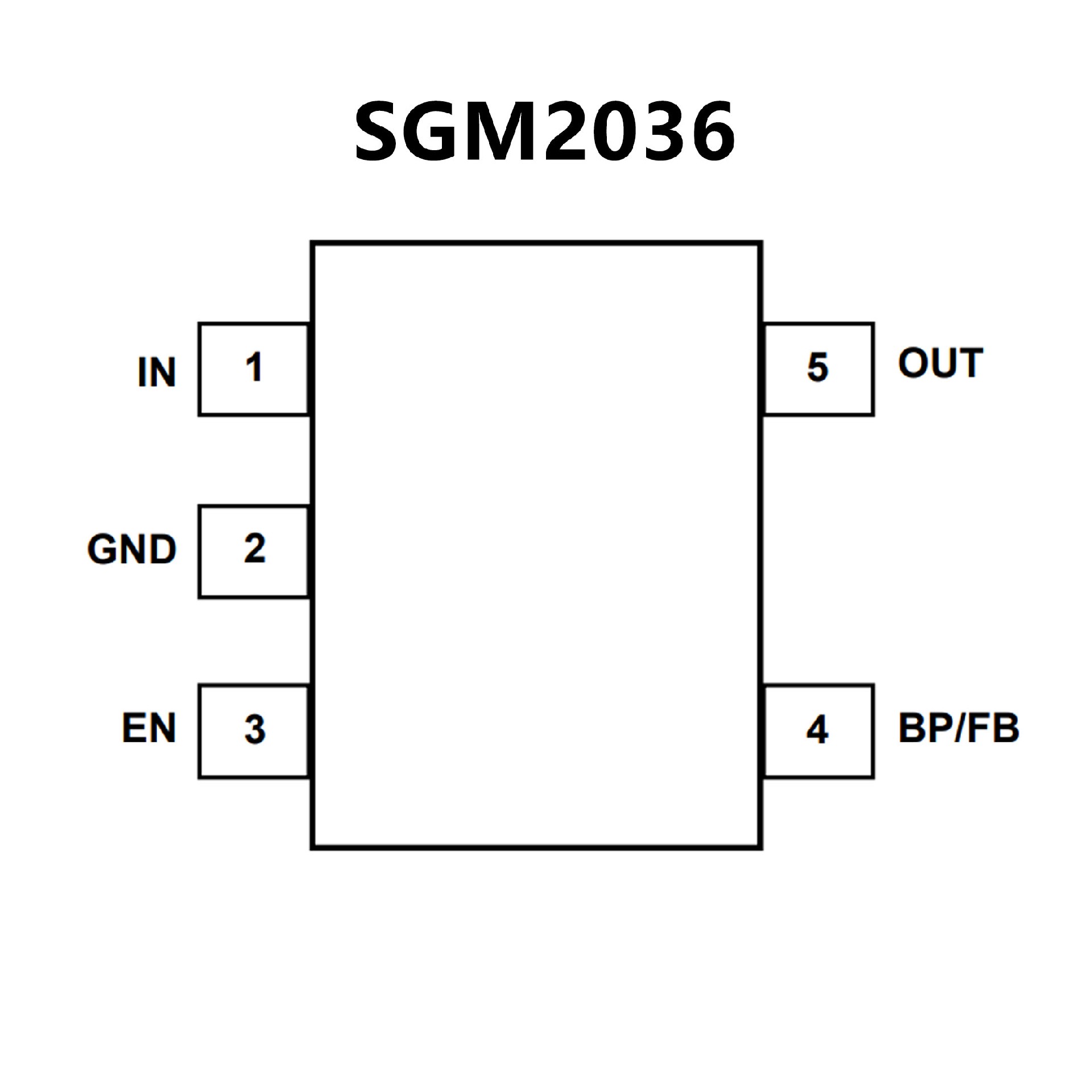

SGM2036.pdf? Low Dropout Voltage
? Thermal Overload Protection
? Built-In Fold Back Protection Circuit
? 20μA Low Supply Current
? 10nA Logic-Controlled Shutdown
? 1.6V to 5.5V Input Voltage Range
? Fixed Outputs of 0.8V, 0.9V, 1.0V,
1.05V, 1.1V,1.2V, 1.3V, 1.35V, 1.5V,
1.8V, 1.85V, 2.1V, 2.2V,2.3V, 2.5V,
2.6V, 2.7V, 2.8V, 2.85V, 2.9V, 3.0V,
3.1V,3.3V, 3.6V, 4.2V, 4.4V and 5.0V
? Adjustable Output from 0.8V to 5.0V
? Short Auto-Discharge Function
? 300mA Output Current
? High Output Voltage Accuracy
? Short Start-Up Time
? -40℃ to +85℃ Operating
Temperature Range
? Available in Green UTDFN-1×1-4L,
SOT-23-5 andSC70-5 Packages

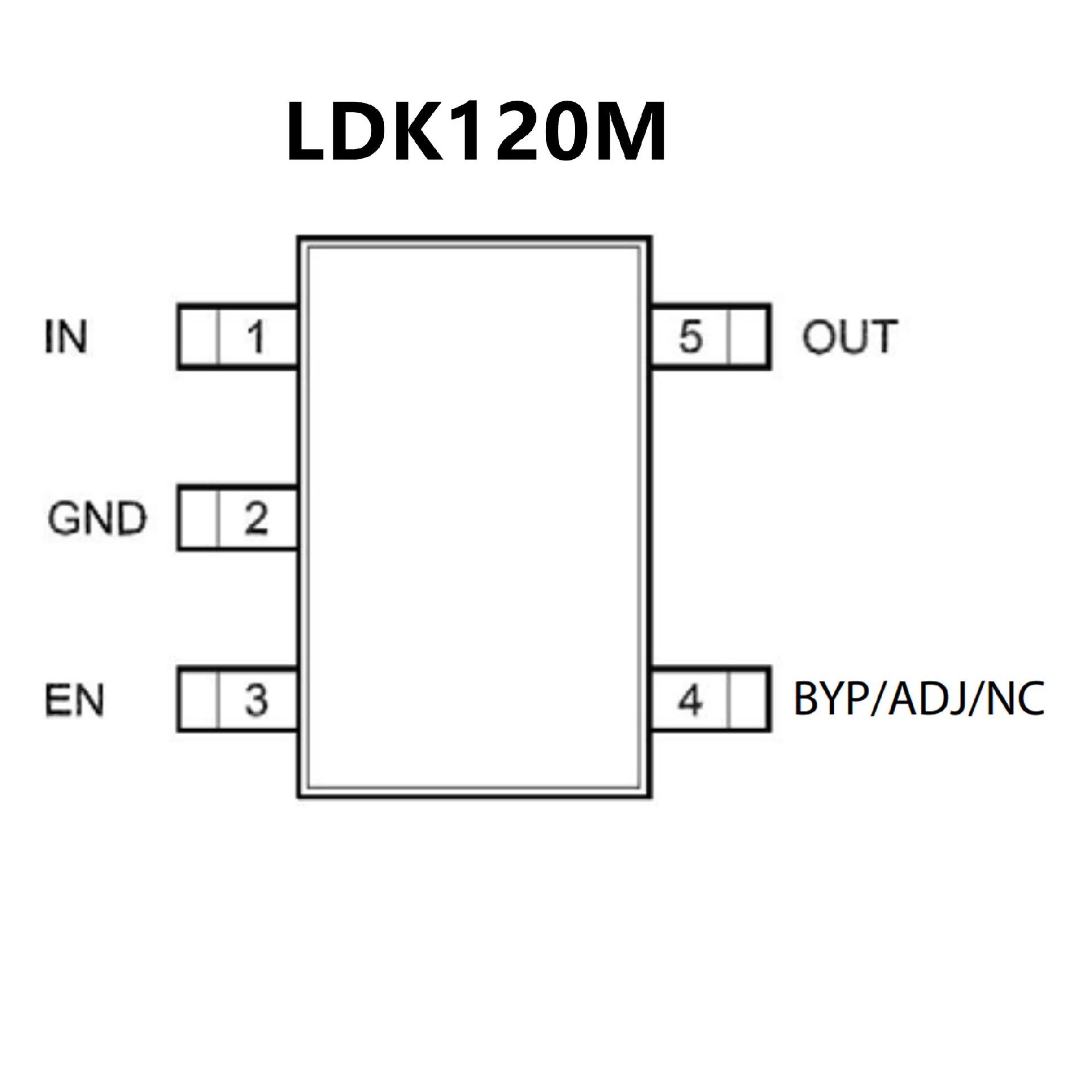

? Input voltage from 1.9 to 5.5 V
? Very low dropout voltage
(100 mV typ. at 100mA load)
? Low quiescent current
(max. 100 μA, 1 μA inOFF mode)
? Very low noise
? Output voltage tolerance: ± 2.0% @ 25 °C
? 200 mA guaranteed output current
? Wide range of fixed output voltages
availableon request: from 0.8 V to
3.5 V with 100 mVstep
? Adjustable version: from 0.8 V to VIN-Vdrop
? Logic-controlled electronic shutdown
? Compatible with ceramic capacitor COUT = 1 μF
? Internal current and thermal limit
? Available in SOT23-5L, SOT323-5L
and DFN6(1.2 x 1.3 mm) packages
? Temperature range: -40 °C to 125 °C
