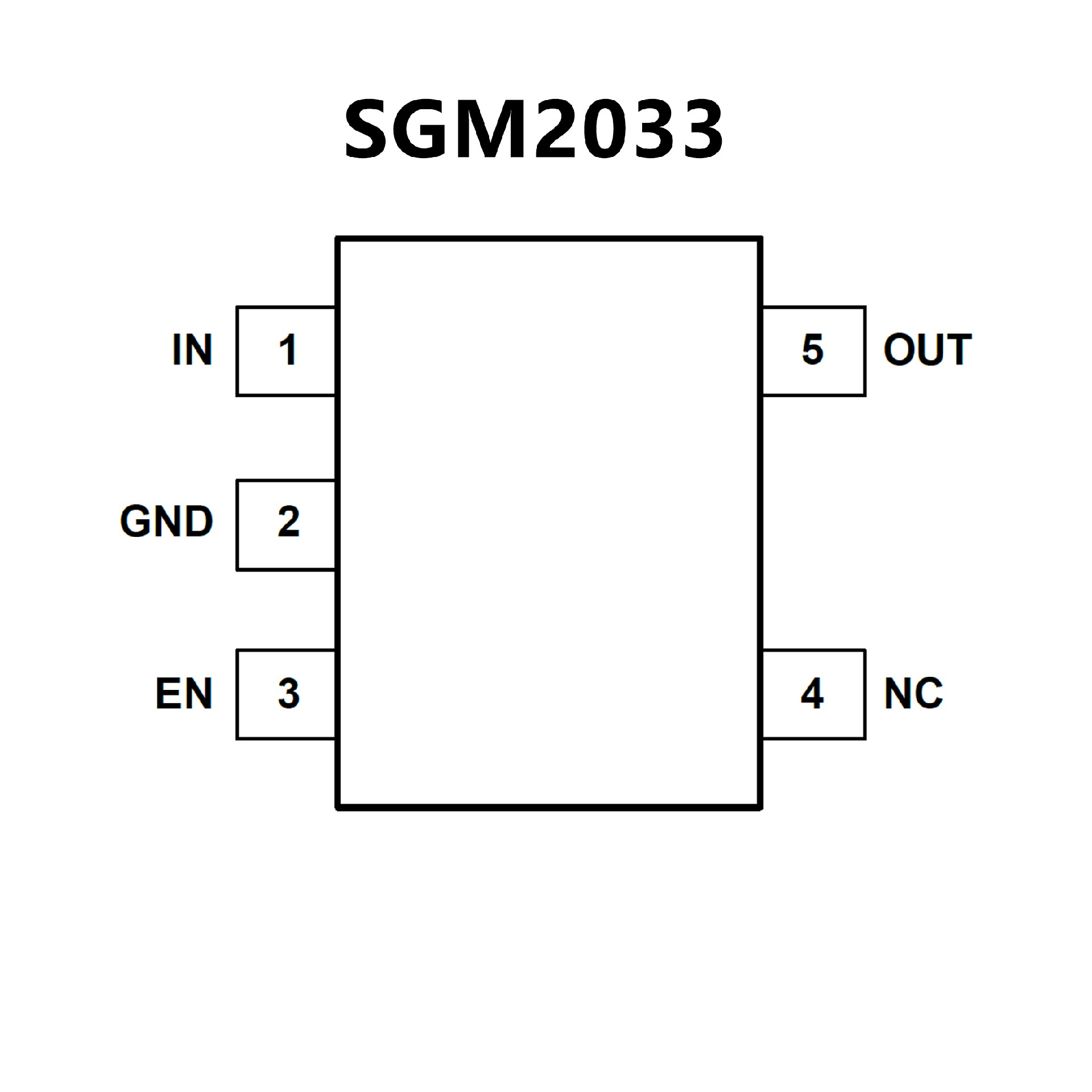

SGM2033-1.2XN5G.pdf? Operating Input Voltage Range: 1.8V to 5.5V
? Fixed Output Voltage Range: 1.2V to 5.0V
? Adjustable Output Voltage Range: 1.2V to 5.0V
? Output Current Limit: 500mA (TYP)
? Ultra-Low Quiescent Current: 13.5μA (TYP)
? Shutdown Current: 0.1μA (TYP)
? High PSRR: 94dB (TYP) at 1kHz
? Low Dropout Voltage:
175mV (TYP) at 250mA when VOUT = 1.8V
(SOT-23-5)
145mV (TYP) at 250mA when VOUT = 1.8V
(UTDFN-1×1-4AL)
? Output Short-Circuit Protection
? Thermal Shutdown Protection
? Fast Load Transient Response
? Stable with 1μF Small Case Size Ceramic
Capacitors
-40℃ to +125℃ Operating Temperature Range
Available in Green SOT-23-5 and UTDFN-1×1-4AL
Packages
? Qualified for Automotive Applications
? AEC-Q100 Qualified With the Following Results:
Device Temperature Grade 1: –40°C to 125°C
Ambient Operating Temperature Range
Device HBM ESD Classification Level H2
Device CDM ESD Classification Level C3B
? 2% Accuracy

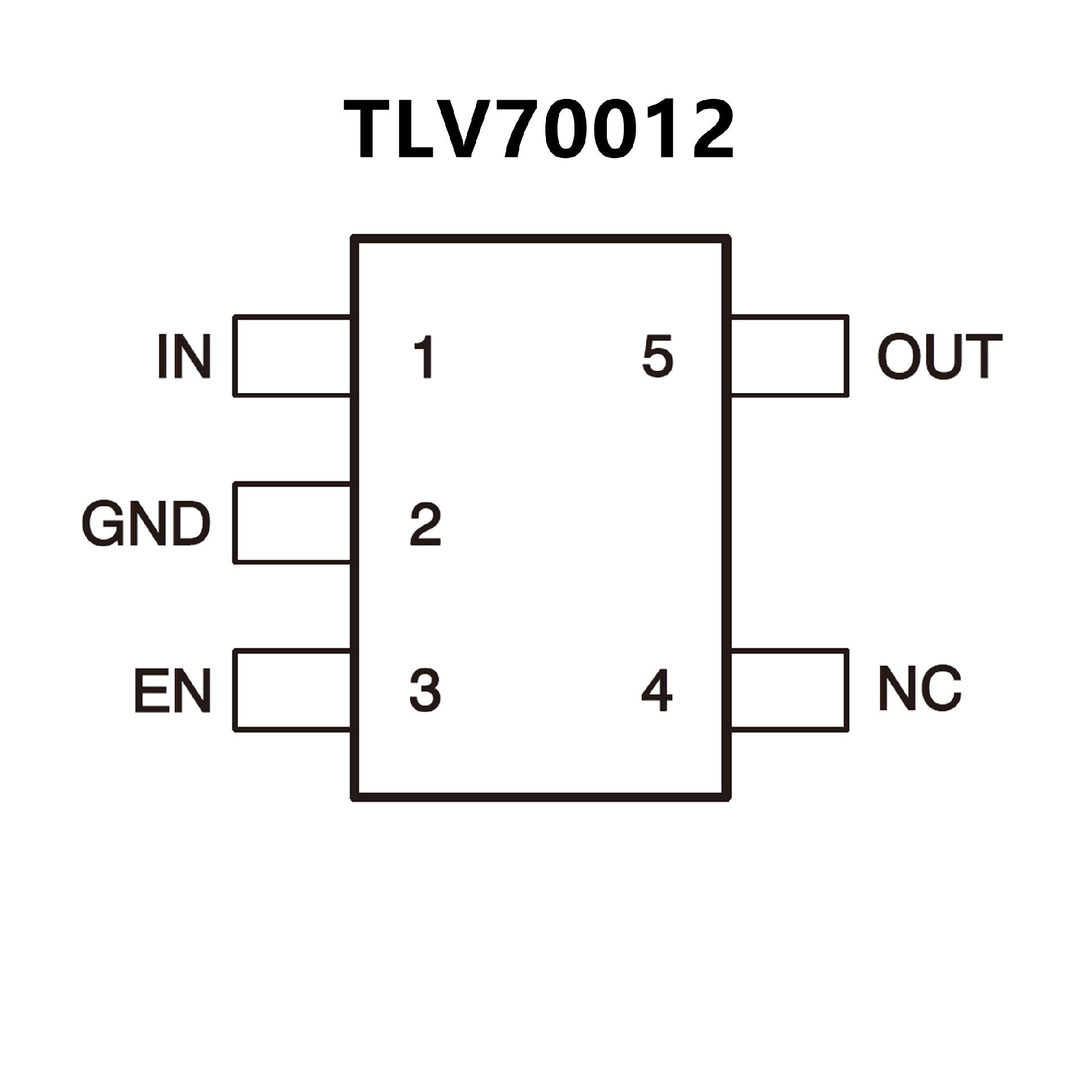

? Low IQ: 35 μA
? Fixed-Output Voltages: 1.2 V and 1.8 V
? High PSRR: 68 dB at 1 kHz
? Stable With Effective Capacitance of 0.1 μF(1)
? Thermal Shutdown and Overcurrent Protection
