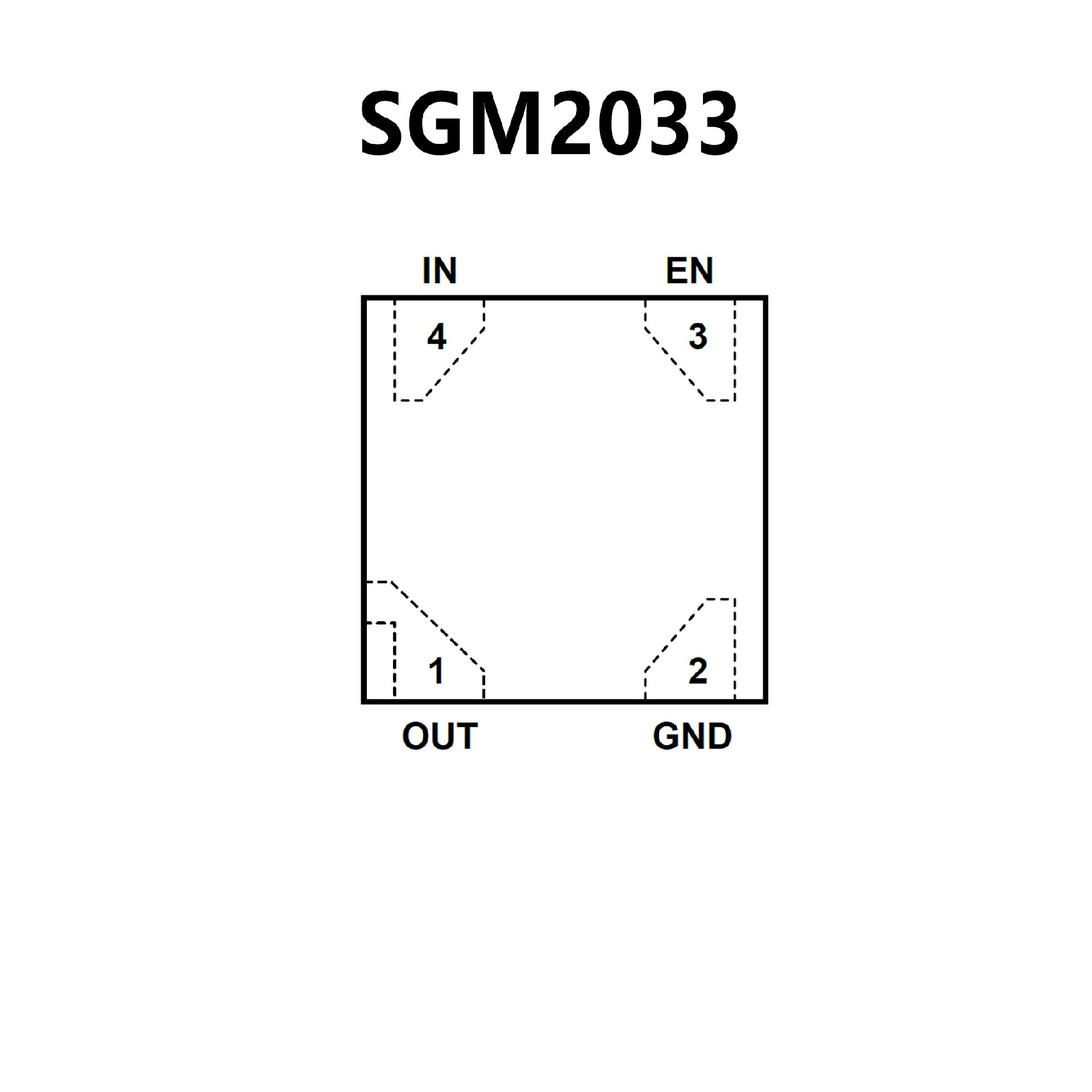

SGM2033.pdf? Operating Input Voltage
Range: 1.8V to 5.5V
? Fixed Output Voltage Range: 1.2V to 5.0V
? Adjustable Output Voltage
Range: 1.2V to 5.0V
? Output Short to GND Protection
? Output Current Limit: 500mA (TYP)
? Over-Temperature Protection: +165℃
? Fast Load Transient Response
? Ultra-Low Quiescent
Current: 13.5μA (TYP)
? Shutdown Current: 0.1μA (TYP)
? Stable with 1μF Small Case
Size CeramicCapacitors
? -40℃ to +125℃ Operating
Temperature Range
? Available in Green SOT-23-5
and UTDFN-1×1-4ALPackages

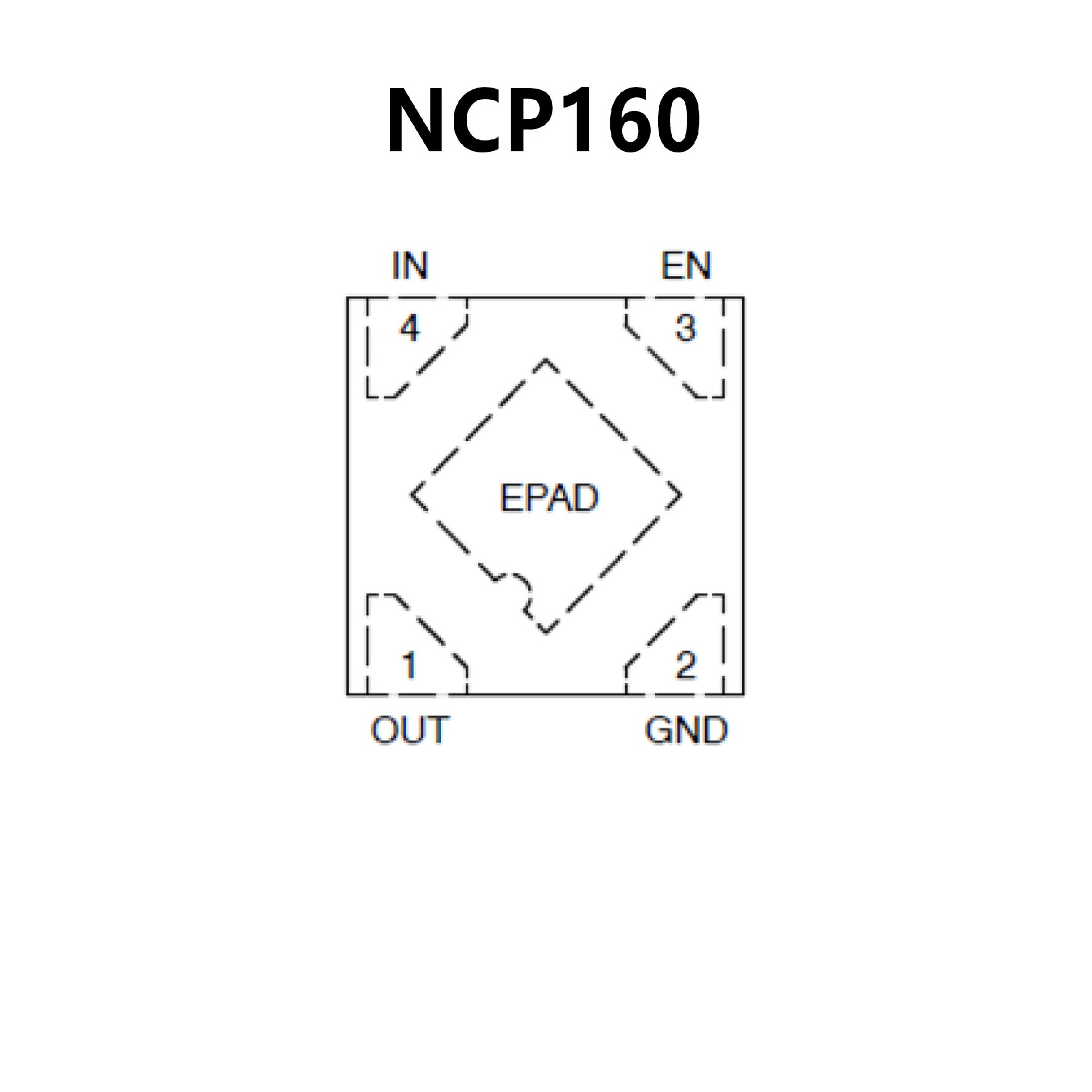

? Operating Input Voltage
Range: 1.9 V to 5.5 V
? Available in Fixed Voltage
Option: 1.8 V to 5.14 V
? ±2% Accuracy Over Load/Temperature
? Ultra Low Quiescent Current Typ. 18 μA
? Standby Current: Typ. 0.1 μA
? Very Low Dropout: 80 mV at 250 mA
? Ultra High PSRR: Typ. 98 dB at 20 mA, f = 1 kHz
? Ultra Low Noise: 10 μVRMS
? Stable with a 1 μF Small Case
Size Ceramic Capacitors
? Available in ?WLCSP4 0.65
mm x 0.65 mm x 0.4 mm
WLCSP4 0.65 mm x 0.65 mm x 0.33 mm
XDFN4 1 mm x 1 mm x 0.4 mm
? These Devices are Pb?Free, Halogen
Free/BFR Free and are RoHSCompliant
