Low Noise Amplifier for LTE Mid-High Band,SGM13006H1 Replace MXD8015H.
SGM13006H1.pdf優勢替代
FEATURES
? Broadband frequency range: 1.8 to 2.7 GHz
? High Gain
15.5dB gain at 1.8GHz to 2.2GHz
14.5dB gain at 2.3GHz to 2.7GHz
? Low noise figure
0.65dB noise figure at 1.8GHz to 2.2GHz
0.70dB noise figure at 2.3GHz to 2.7GHz
? Operation current 6mA
? Small, LGA (6-pin, 1.1mm x 0.7mm x 0.45mm)
package ，MSL1
? No DC blocking capacitors required.

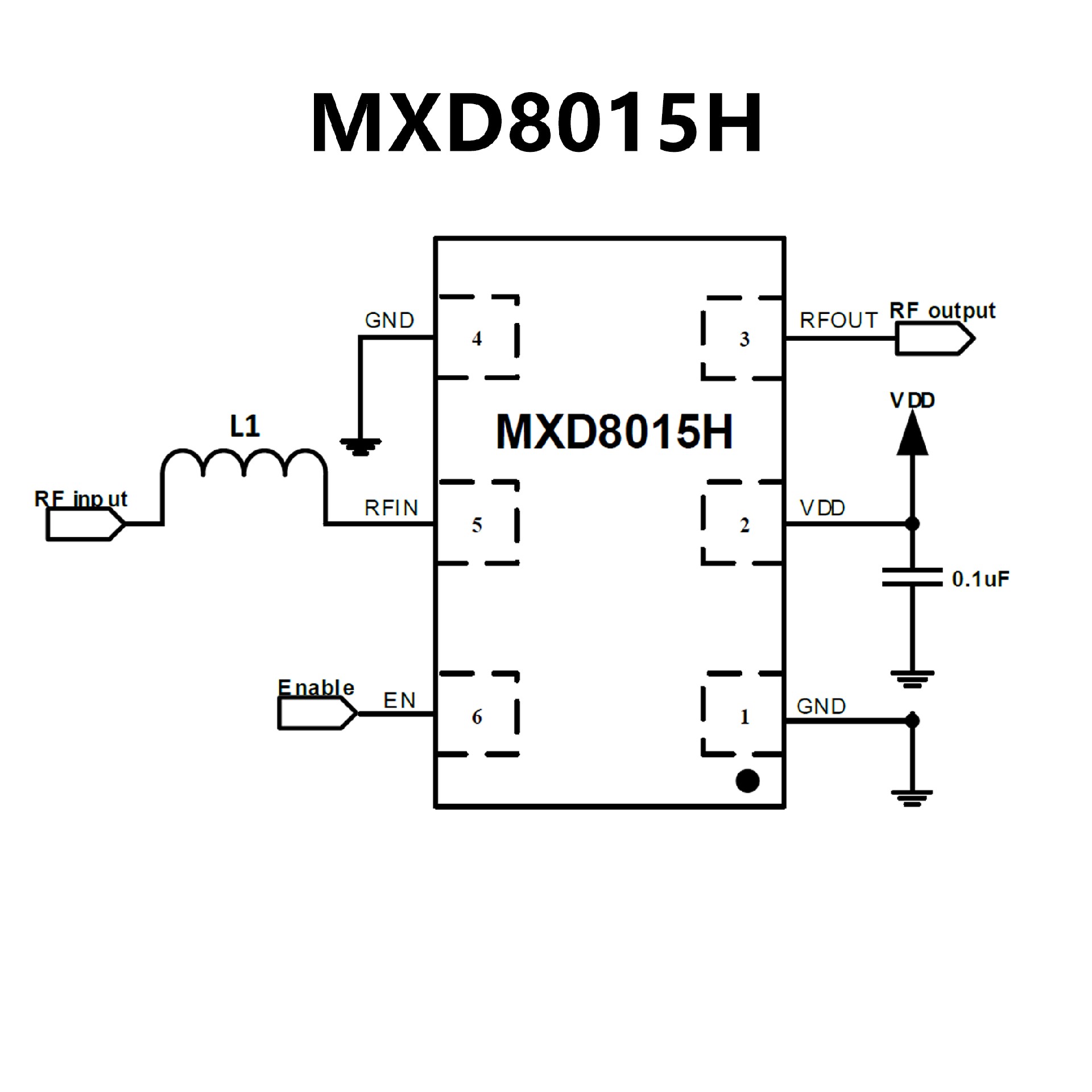

PIN CONFIGUTION
