LTE Low Noise Amplifier with Bypass Mode,SGM13005M2 Replace MXD8011H.
SGM13005M2
SGM13005M2.pdf
SGM13005M2.pdfFEATURES
? Operating Frequency Range: 1800MHz to 2200MHz
? Low Noise Figure: 1.0dB at 2000MHz
? Low Operation Current: 5.8mA
? Bypass Mode Current: 1μA (MAX)
? Single Supply Voltage Range: 1.5V to 3.6V
? Input and Output DC Decoupled
? Integrated Matching for the Output
? Available in a Green UTDFN-1.1×0.7-6L Package

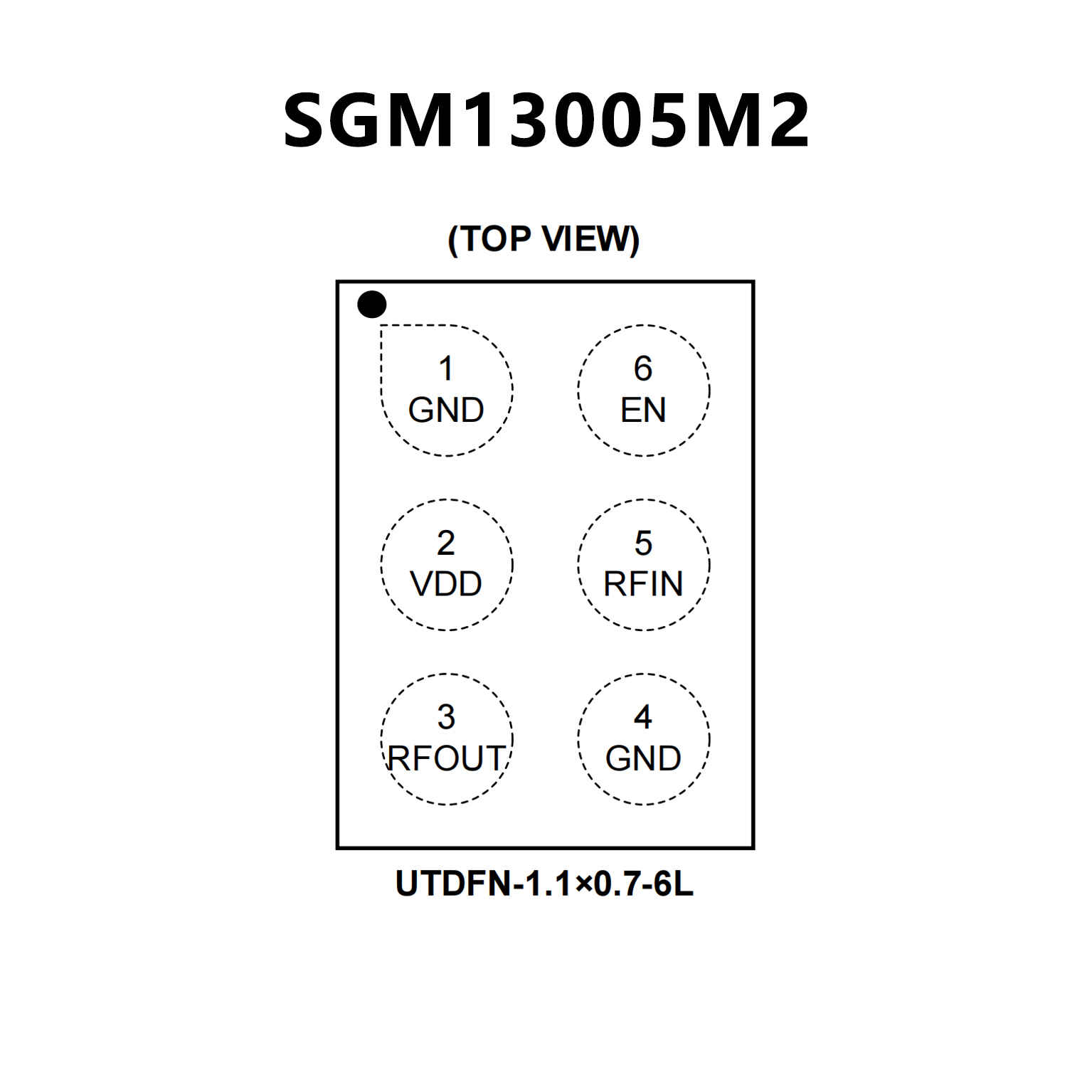

PIN CONFIGUTION

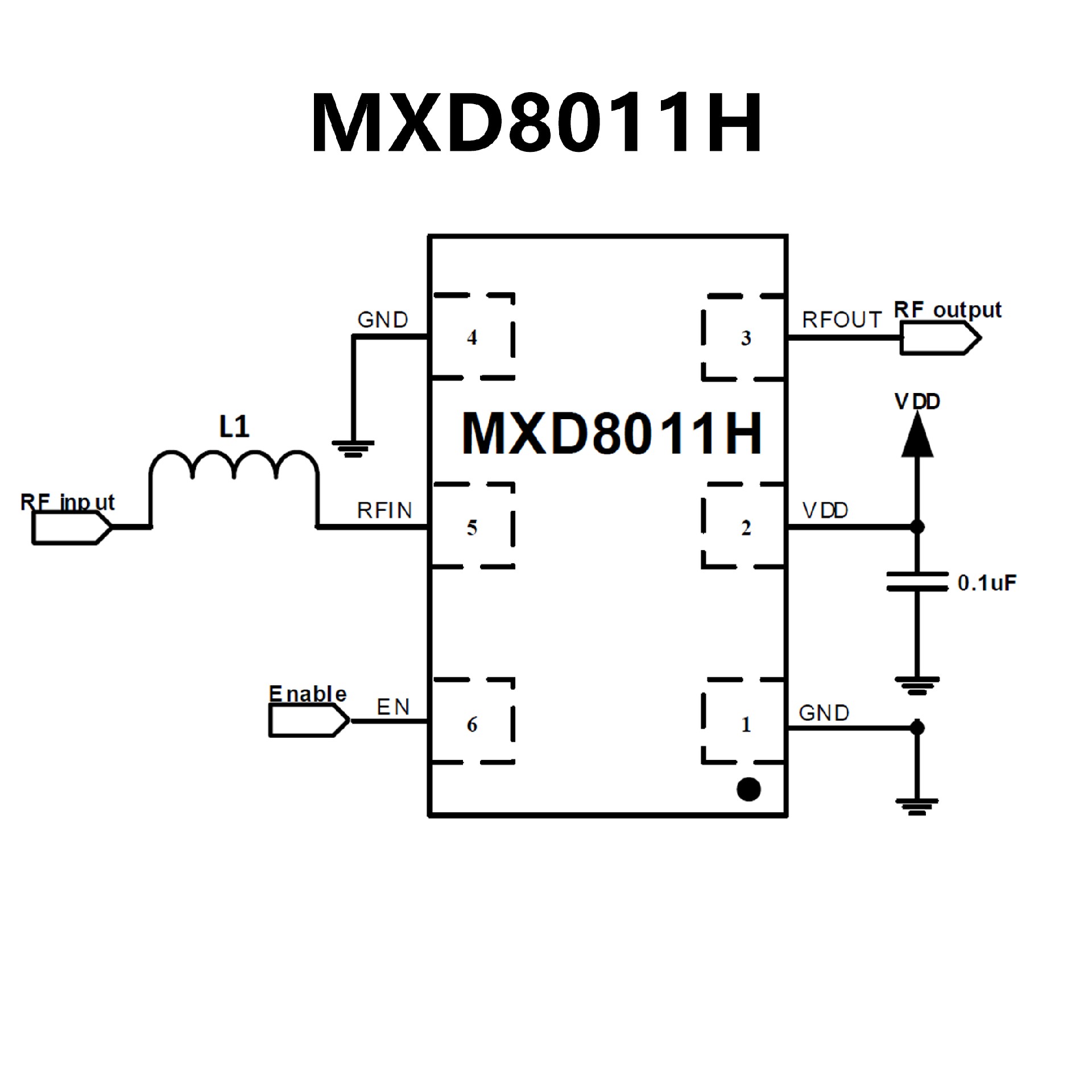

優(yōu)勢(shì)替代
FEATURES
? Frequency range from 1.8GHz to 2.7GHz
? Two operation modes
Low noise mode:
14dB gain, 0.8dB noise figure at 1800MHz
to 2200MHz;
13dB gain, 0.9dB noise figure at 2300MHz
to 2700MHz
Bypass mode: 2 dB insertion loss, 15dBm
input P1dB
? Low noise mode current 7 mA & bypass
mode current less than 1uA
? Single supply voltage range 1.6V to 3.0V
? Small package 1.1mmx0.7mmx0.45mm
? Low cost BOM
? Lead-Free and RoHS-Compliant
PIN CONFIGUTION
