Low Noise Amplifier for LTE Middle Band, SGM13005M1 Replace MXD8015H.
SGM13005M1
SGM13005M1.pdf
SGM13005M1.pdfFEATURES
? Operating Frequency Range: 1800MHz to 2200MHz
? Low Noise Figure: 1.0dB at 2000MHz
? Low Operation Current: 5.8mA
? Supply Voltage Range: 1.5V to 3.6V
? Input and Output DC Decoupled
? Integrated Matching for the Output
? Available in Green UTDFN-1.1×0.7-6L Package

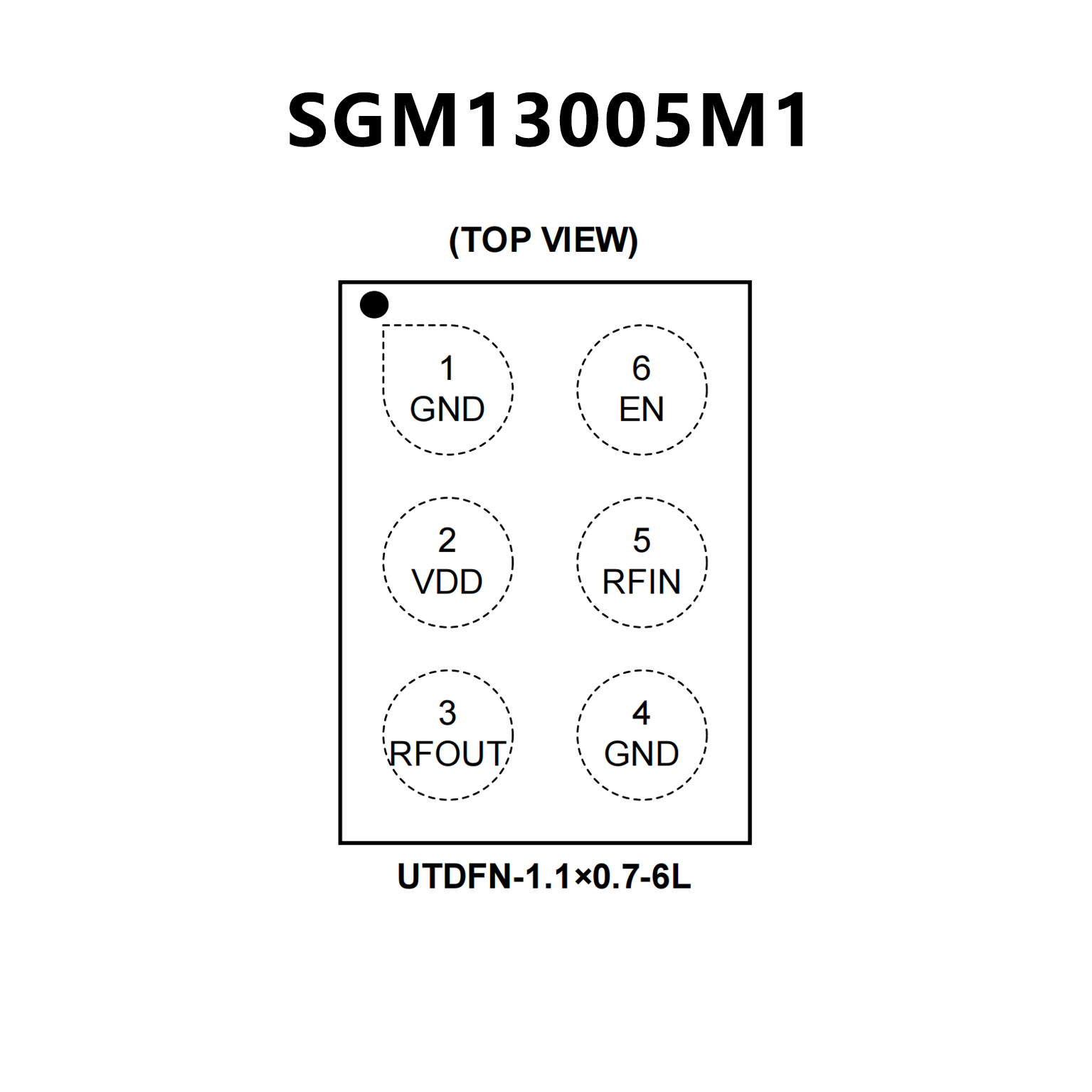

PIN CONFIGUTION
優勢替代
FEATURES
? Broadband frequency range: 1.8 to 2.7 GHz
? High Gain
15.5dB gain at 1.8GHz to 2.2GHz
14.5dB gain at 2.3GHz to 2.7GHz
? Low noise figure
0.65dB noise figure at 1.8GHz to 2.2GHz
0.70dB noise figure at 2.3GHz to 2.7GHz
? Operation current 6mA
? Small, LGA (6-pin, 1.1mm x 0.7mm x 0.45mm)
package ，MSL1
? No DC blocking capacitors required.

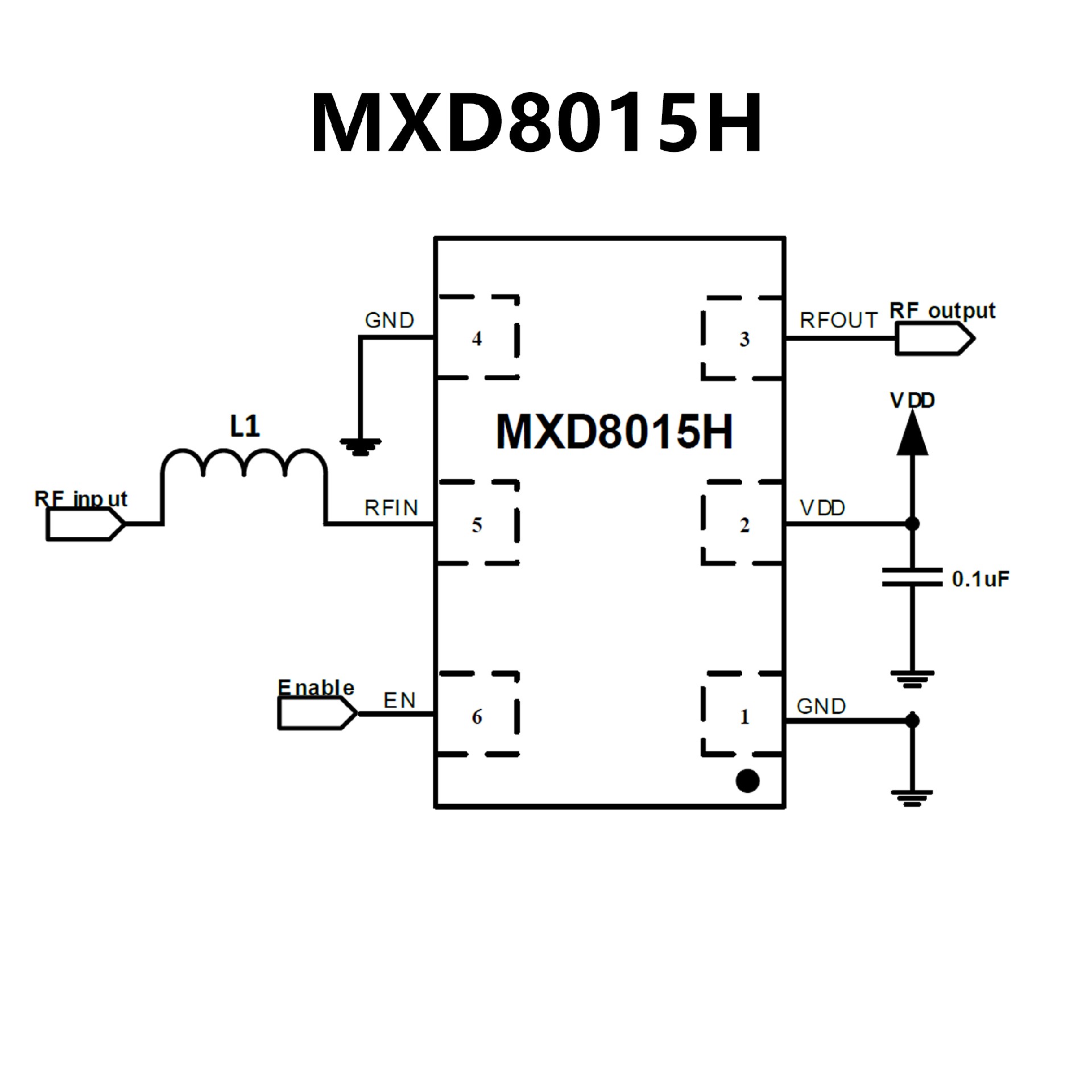

PIN CONFIGUTION
