Low Noise Amplifier for GNSS, SGM13002A Replace BGA824N6.
SGM13002A
SGM13002A.pdf
SGM13002A.pdfFEATURES
? High Gain:
17.8dB at 1176.45MHz
18.0dB at 1227.60MHz
17.4dB at 1575.42MHz
? Low Noise Figure:
0.71dB at 1176.45MHz
0.70dB at 1227.60MHz
0.78dB at 1575.42MHz
? Low Operation Current: 5.2mA
? Current Less than 1μA in Power Down Mode
? Operating Frequency Range:
1160MHz to 1300MHz
1550MHz to 1615MHz
? Single Supply Voltage Range: 1.5V to 3.6V
? Low Cost BOM
? Lead-Free and RoHS Compliant
? Available in a Green UTDFN-1.1×0.7-6L Package

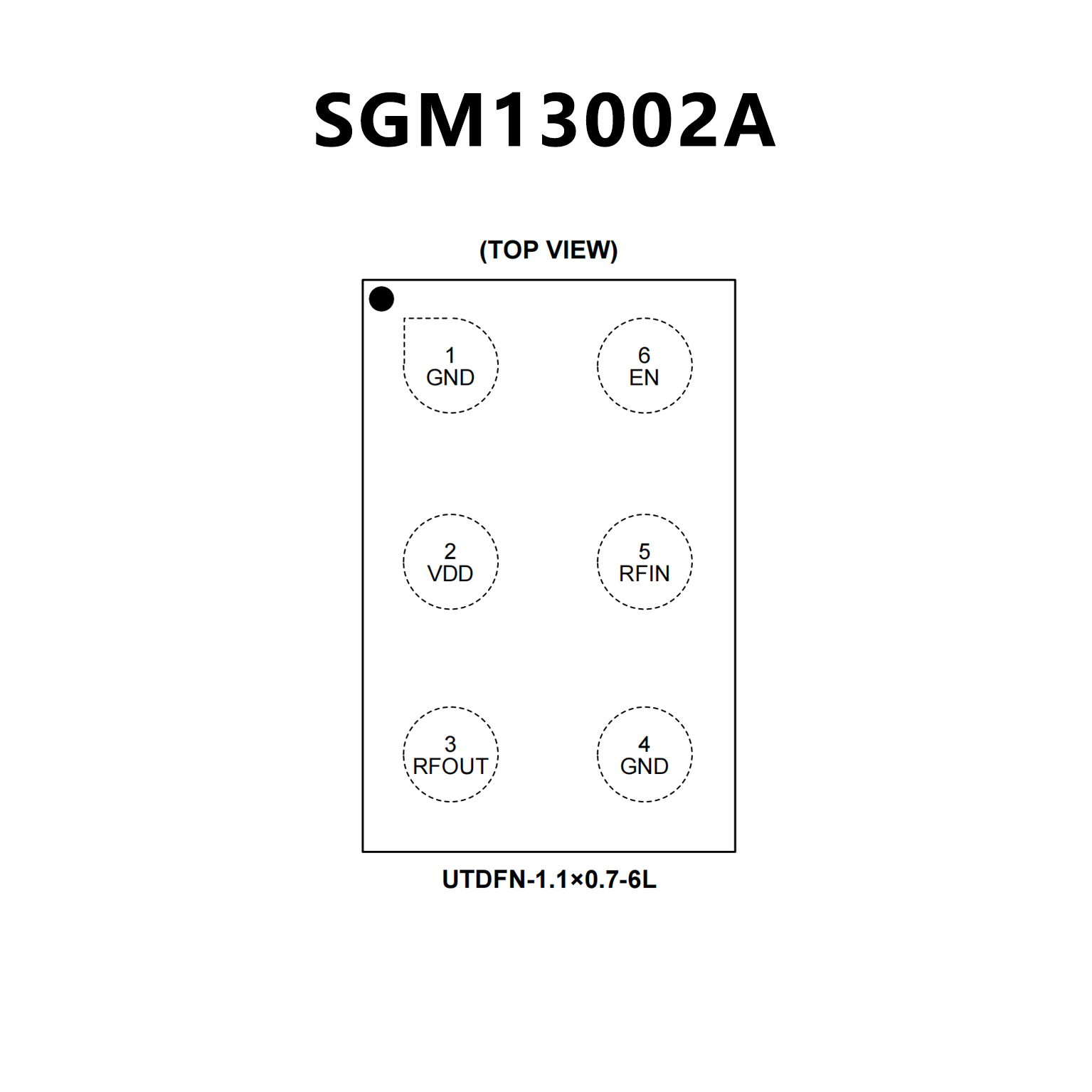

PIN CONFIGUTION
優(yōu)勢替代
FEATURES
? Operating frequencies: 1164 - 1615 MHz
? Insertion power gain: 17.0 dB
? Input 1 dB compression point: -6 dBm
? Low noise figure: 0.55 dB
? Low current consumption: 3.8 mA
? Digital on/off switch (1V logic level high)
? Ultra small TSNP-6-2 and TSNP-6-10 leadless package
? RF output internally matched to 50 Ohm
? Low external component count

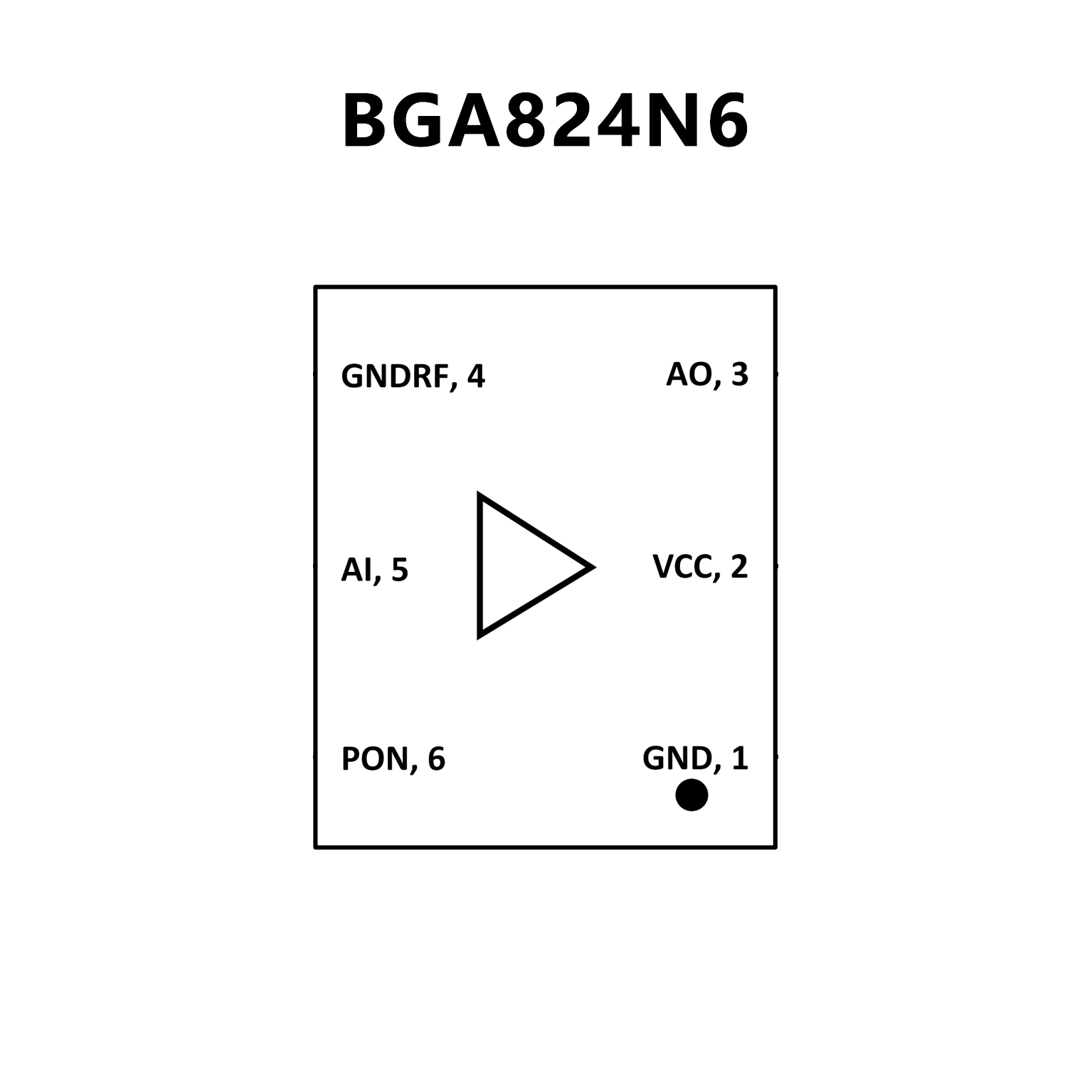

PIN CONFIGUTION
