0.7 to 3.0 GHz High Isolation SP4T Switch,SGM11104S Replace SKY13524.
SGM11104S
SGM11104S.pdf
SGM11104S.pdfFEATURES
? High Isolation:
f0 = 1.0GHz, PIN = 0dBm: 56dB (TYP)
f0 = 2.0GHz, PIN = 0dBm: 50dB (TYP)
f0 = 2.7GHz, PIN = 0dBm: 46dB (TYP)
f0 = 3.8GHz, PIN = 0dBm: 43dB (TYP)
f0 = 5.8GHz, PIN = 0dBm: 32dB (TYP)
? Low Insertion Loss:
f0 = 1.0GHz, PIN = 0dBm: 0.46dB (TYP)
f0 = 2.0GHz, PIN = 0dBm: 0.48dB (TYP)
f0 = 2.7GHz, PIN = 0dBm: 0.49dB (TYP)
f0 = 3.8GHz, PIN = 0dBm: 0.51dB (TYP)
f0 = 5.8GHz, PIN = 0dBm: 0.83dB (TYP)
? Available in a Green ULGA-1.6×1.6-14L Package

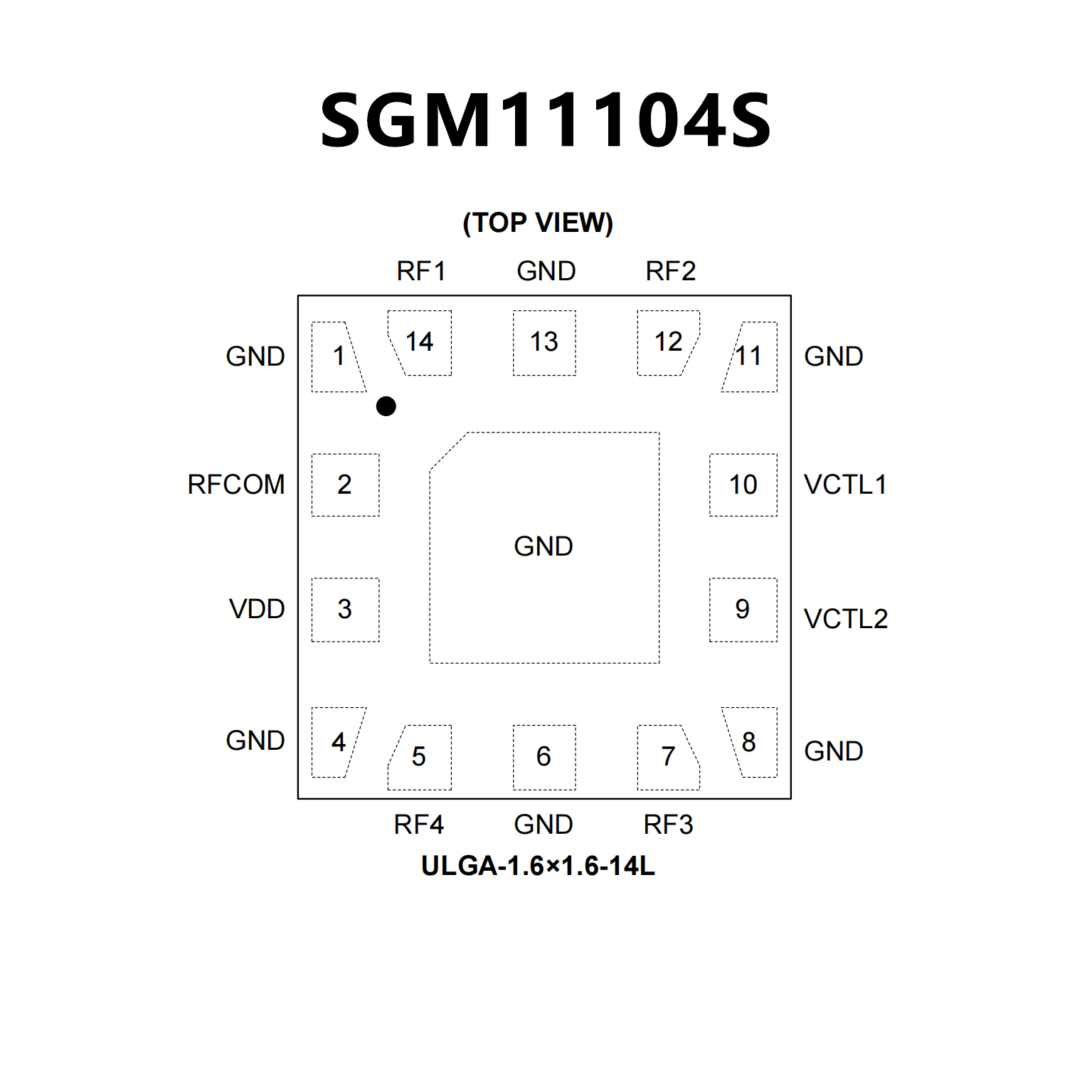

PIN CONFIGUTION
優(yōu)勢替代
FEATURES
? Broadband frequency range: 0.7 to 3.0 GHz
? High isolation: 47 dB @ 2.0 GHz (typical)
? Small QFN (14-pin, 1.6 x 1.6 mm) package
(MSL1, 260 ?C per JEDEC J-STD-020)

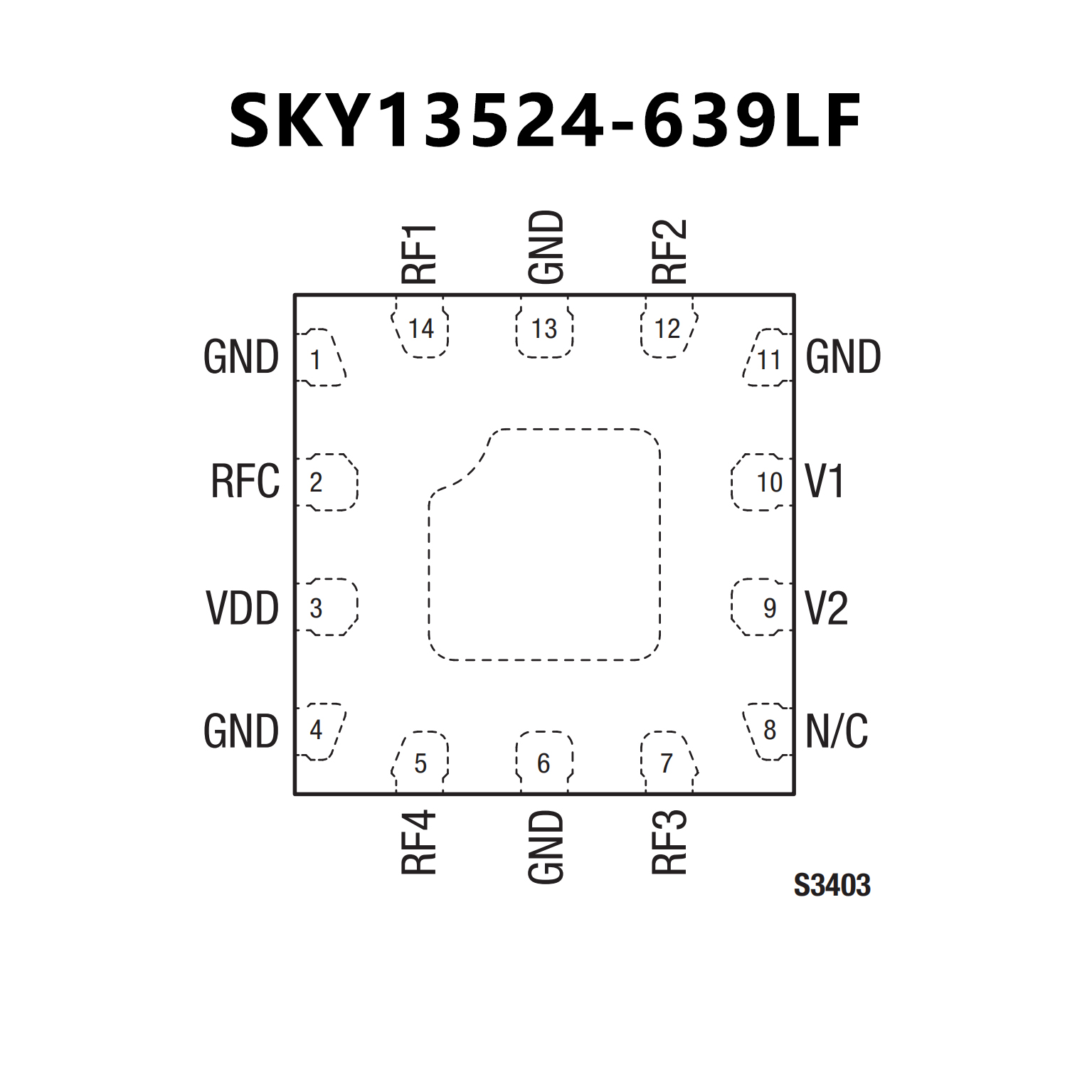

PIN CONFIGUTION
