High Linearity SPDT RF Switch, SGM11102F Replace MXD8625C.
SGM11102F
SGM11102F.pdf
SGM11102F.pdfFEATURES
? Supply Voltage Range: 2.4V to 3V
? GPIO Controller
? Operating Frequency Range: 0.1GHz to 6GHz
? Low Insertion Loss: 0.4dB (TYP) at 2.7GHz
? High Isolation: 24dB (MIN) at 2.7GHz
? Advanced Silicon-On-Insulator (SOI) Process
? No External DC Blocking Capacitors Required
? Available in a Green UTDFN-1.1×0.7-6L Package

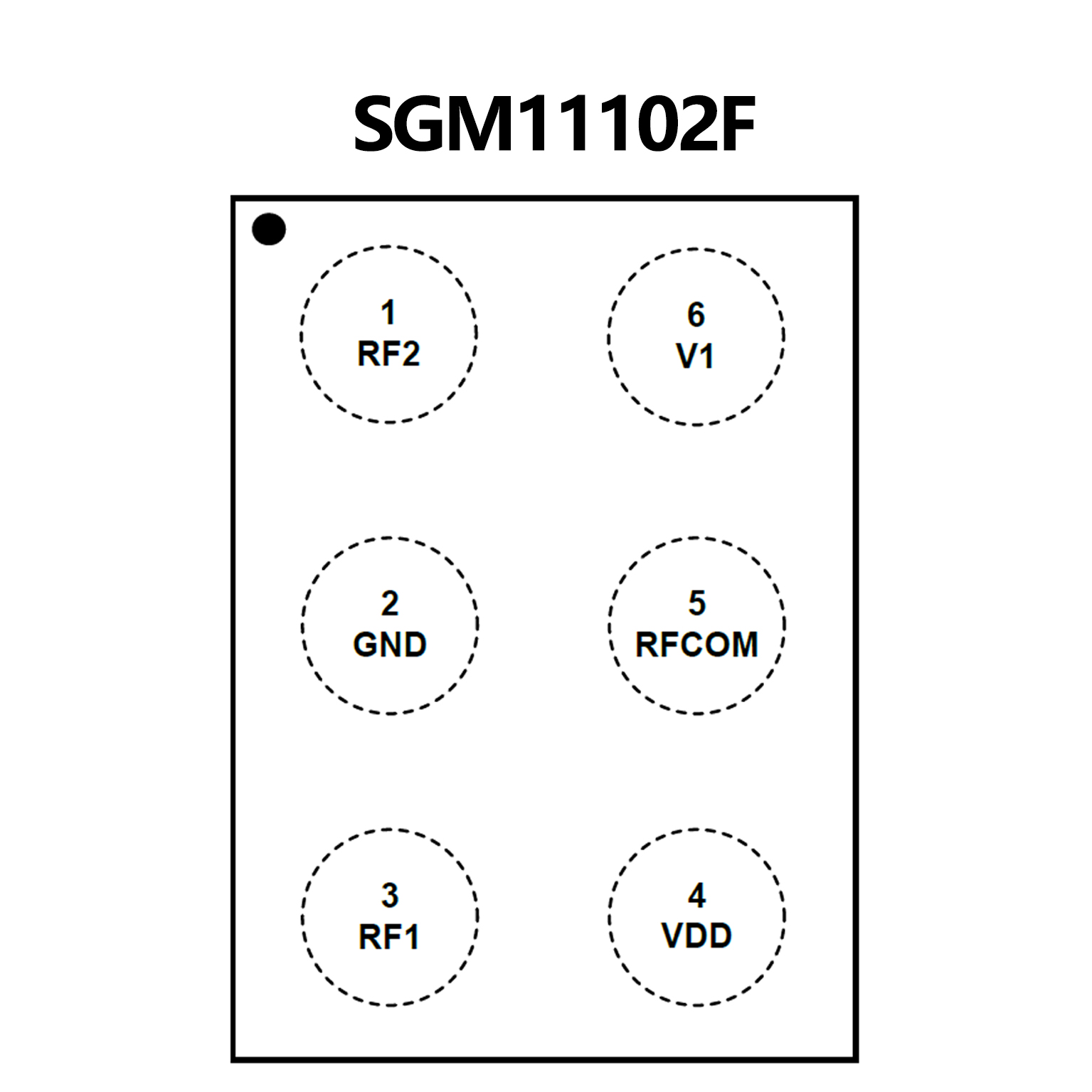

PIN CONFIGUTION
優(yōu)勢替代
FEATURES
? Broadband frequency range: 0.1 to 3 GHz
? Low insertion loss: 0.35 dB @ 2.7 GHz
? High isolation: 28 dB up to 2.7 GHz
? P0.1dB 36dBm
? No external DC blocking capacitors required
? Single GPIO control line with VDD voltage
regulator:
VCTL= 1.6 to 3.00 V
VDD= 2.5 to 3.00 V
? Small, 6-Lead QFN, 400 um pitch (1.1mm x
0.7mmx 0.45 mm) package

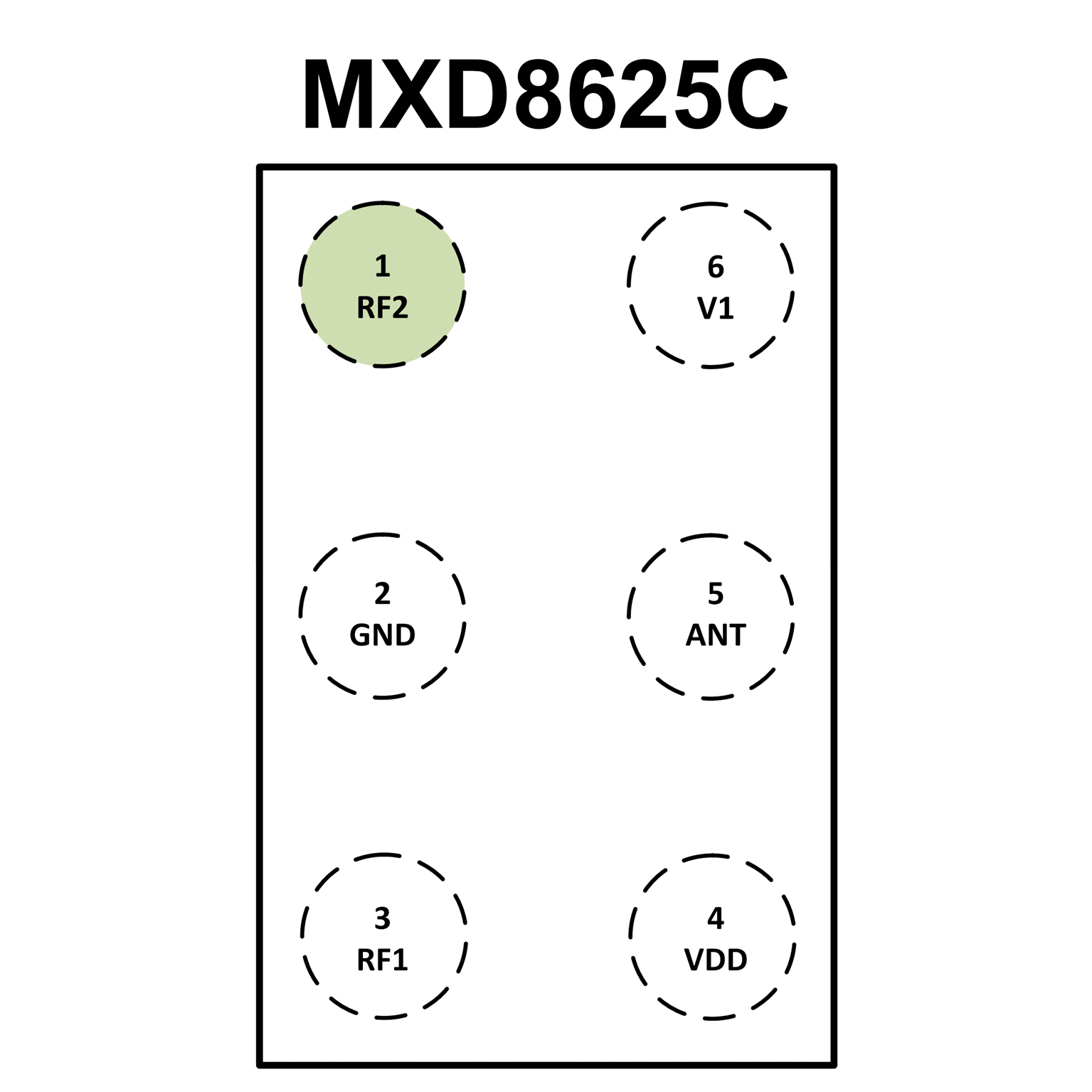

PIN CONFIGUTION
