Femto-Farad Capacitance 1-Channel ESD Protection, SGM05FB1E2 P2P ESDL2011.
SGM05FB1E2
SGM05FB1E2.pdf
SGM05FB1E2.pdfFEATURES
? High ESD Withstand Voltage:
IEC 61000-4-2: ±12kV (Air)
IEC 61000-4-2: ±12kV (Contact)
? Low Profile Packages: XTDFN-0.6×0.3-2L and
UTDFN-1×0.6-2L
? Working Voltage: 5V and Below
? Rated Peak Pulse Current: 2.4A
? Low Channel Input Capacitance: 0.3pF (TYP)
PIN CONFIGUTION
優勢替代
FEATURES
? Low Capacitance 0.17 pF (Typ)
? Low Clamping Voltage
? Small Body Outline Dimensions: 0.60 mm x 0.30 mm
? Low Body Height: 0.2 mm
? Stand?off Voltage: 1.0 V
? IEC61000?4?2 Level 4 ESD Protection
? These Devices are Pb?Free, Halogen Free/BFR Free and
are RoHS Compliant

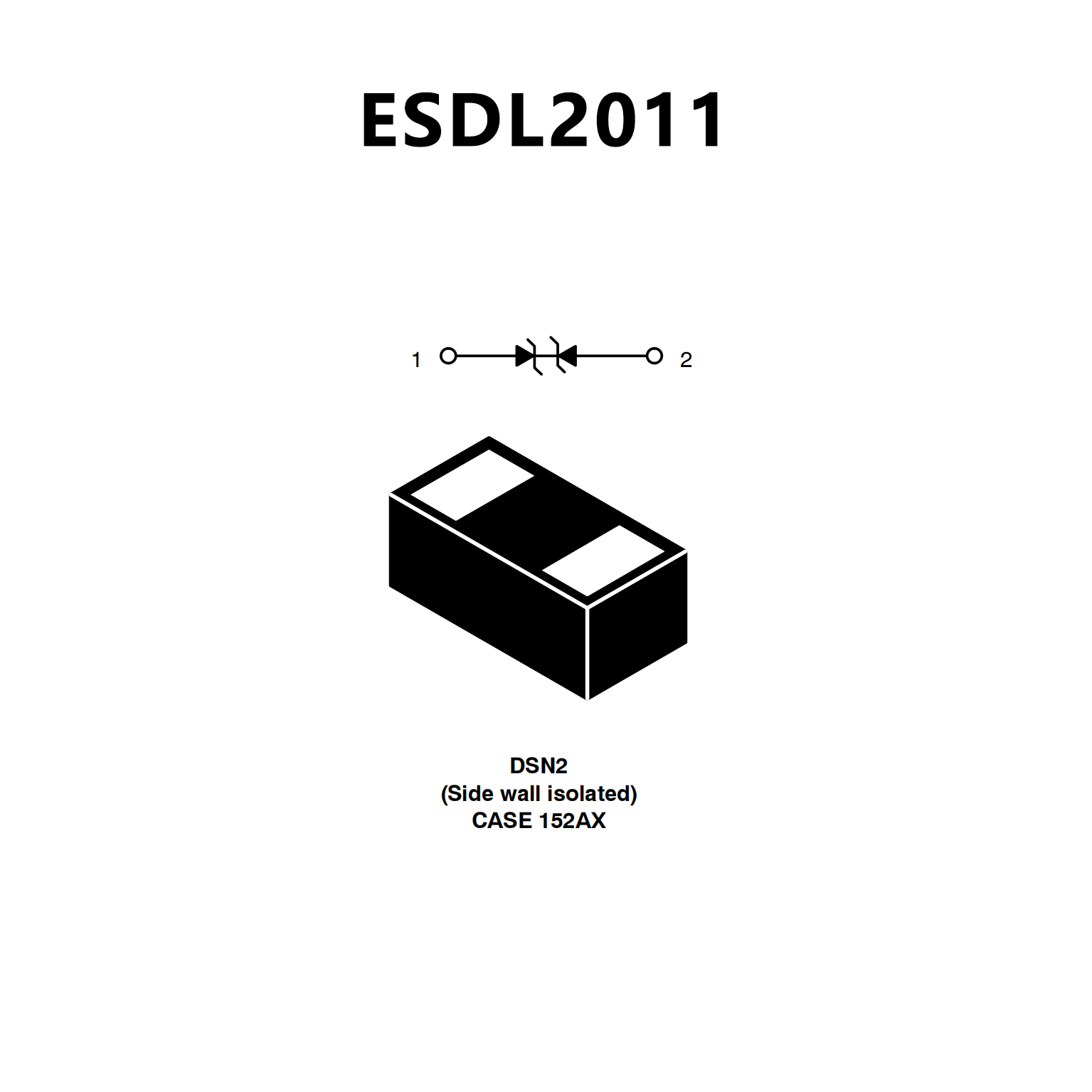

PIN CONFIGUTION
