SCT54100.pdf? Qualified for automotive applications
? AEC-Q100 Qualified with the following results:
Device temperature grade 1: –40°C to 125°C
ambient operating temperature range
Device HBM ESD classification level H3A
Device CDM ESD classification level C4B
? Functional safety capable
Documentation available to aid functional
safety system design
? Single-channel smart high-side power switch with
full diagnostics
Version A: open-drain status output
Version B: current sense analog output
? Wide operating voltage 3.5 to 40 V
? Very-low standby current, <0.5 μA
? Operating junction temperature, –40 to 150°C
? Input control, 3.3-V and 5-V logic compatible
? High-accuracy current sense, ±30 mA at 1 A,
±4 mA at 5 mA
? Programmable current limit with external resistor,
±20% at 0.5 A
? Diagnostic enable function for multiplexing of mcu
analog or digital interface
? Tested according to AECQ100-12 Grade A,
1 million times Short to GND test
? Electrical transient disturbance immunity
certification of ISO7637-2 and ISO16750-2
? Protection
Overload and short-circuit protection
Inductive load negative voltage clamp
Undervoltage lockout (UVLO) protection
Thermal shutdown/swing with self recovery
Loss of GND, loss of supply protection
Reverse battery protection with external
circuitry
? Diagnostic
On- and Off-state output open- and short-tobattery
detection
Overload and short to ground detection and
current limit
Thermal shutdown/swing detection

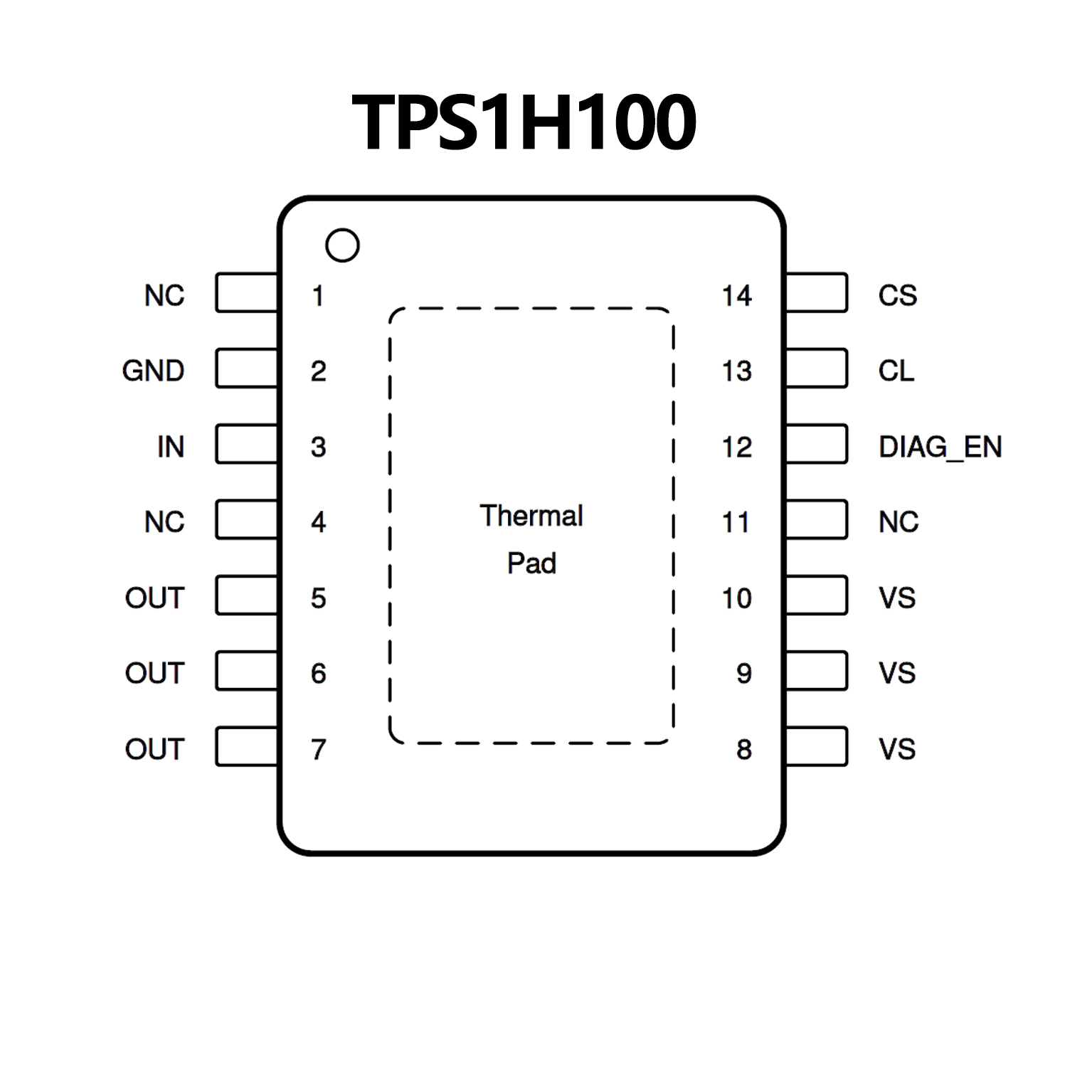

? 14-Pin Thermally-enhanced PWP package
